ABB 1SDA066576R1 Accessory - IEC60947-2 / UL489
Part Number: 1SDA066576R1
Quick Summary
The ABB 1SDA066576R1 accessory enables rotary handle operation for Tmax XT circuit breakers in XT1–XT4 installations. It addresses common panel floor pain points such as misoperation, slow lockout/tagout, and cumbersome manual control in tight spaces. This solution aligns with IEC60947-2 and UL489 standards, plus CE conformity and RoHS/REACH compliance, ensuring regulatory safety and global procurement acceptance. As a dedicated Tmax XT accessory, it integrates with XT1–XT4 and supports configurable mounting for flexible retrofits and new builds. By reducing downtime, streamlining maintenance workflows, and improving operator safety, it delivers tangible business value for panel builders, OEMs, and plant operators. The compact design and 500 mm rod extension enable installation in space constrained switchgear without extensive rework.
Product Information
Extended Description

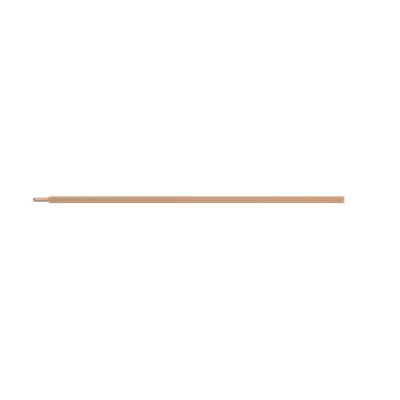

1SDA066576R1 ABB: RHE_S XT1..XT4 500MM ROD R.D.ADJ.ROT.HAN
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KXTARHES500
E-Number (Norway)
4381180
EAN
8015644693374
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
0.101 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
35 mm
Package Level 1 Height
35 mm
Package Level 1 Depth / Length
495 mm
Package Level 1 Gross Weight
0.106 kg
Package Level 1 EAN
8015644693374
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
Accessory
Suitable For
XT1, XT2, XT3, XT4
Suitable for Product Class
SACE Tmax XT
Configuration Type
Loose or configurable
Standards
IEC60947-2 | UL489
Data Sheet, Technical Information
1SDC210100D0205 | 1SDC210099D0205
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
RHE / RHE PADLOCK - Rotary handle operating mechanism door mounted.
ETIM 8
EC000916 - Switch operating shaft
ETIM 9
EC000916 - Switch operating shaft
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
Object Classification Code
Q
UNSPSC
39122221
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass
V11.1 : 27370413
Feature: Rotary handle operating mechanism for Tmax XT. Business impact: Safer, more reliable breaker operation with reduced risk of misoperation during manual control. Application: Ideal for XT1 through XT4 installations in space constrained panels and cabinets. Feature: Loose or configurable configuration. Business impact: Installation flexibility enables quick retrofits and on site adjustments without custom machining. Application: Supports easy alignment with existing mounting patterns and lockout devices. Feature: Material compliance and environmental declarations. Business impact: Regulatory peace of mind for procurement teams and risk mitigation for global supply chains. Application: RoHS and REACH compliant components, CMRT and TSCA declarations ensure compliance across regions. Feature: Standards and certifications. Business impact: Compliance with IEC 60947-2 and UL 489 reduces qualification time for OEMs and integrators. Application: CE declaration and documentation support safe commissioning. Feature: Packaging, quantity and product data. Business impact: One piece minimum order quantity and clear EAN simplify purchasing, inventory, and drop ship. Application: Ready to stock accessory for Tmax XT projects. Feature: Installation and maintenance guidance. Business impact: Clear manuals and proven design reduce commissioning time and support long term uptime.
