2CKA001710A1977
Part Number: 2CKA001710A1977
Product Information
Extended Description

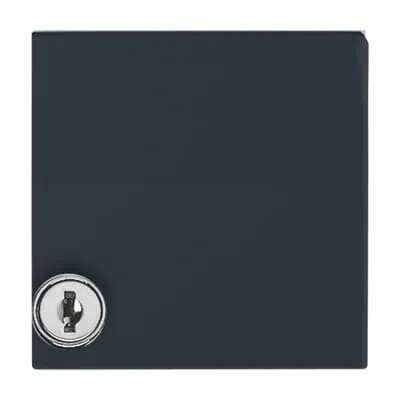

2CKA001710A1977 ABB: For accommodating cover plates from the Busch-Duro 2000® SI program and Reflex SI, e.g. socket outlets, equipotential, antenna, and ISDN socket outlets, etc.
Delivery without cover plate.
With sealing ring and 2 keys. IP 44 only in conjunction with cover frames All Weather 44.
Mounting Type
Flush Mounted
Modular Components Included
Adapter / Intermediate Ring
Degree of Protection
IP44
Application
Cover plates Busch-Duro 2000® SI and Reflex SI
Lock Type
Cylinder Lock with different locking
Protection Cap Type
Hinged Lid
Design Range
Allwetter 44 (IP 44)
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
RAL Number
Similar to RAL 7021
Color
anthracite
Product Net Width
70 mm
Product Net Height
70 mm
Product Net Depth / Length
49 mm
Product Net Weight
52.5 g
Dimension Diagram
Dimension drawing [EN] m_2118gksl-32
RoHS Information
Product Declaration.PDF [EN] 2118 GKSL-35
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
ETIM 9
EC002250 - Transition adapter for domestic switching devices
eClass
V11.0 : 27144068
