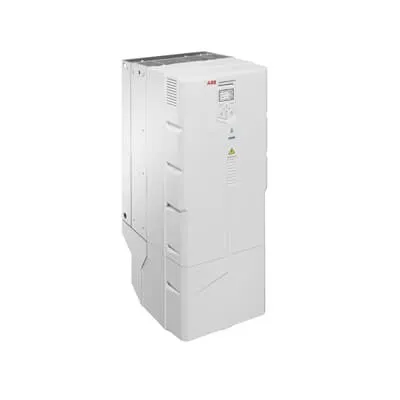

ABB ACH580-01-363A-4 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00047441-D
Quick Summary
ABB ACH580-01-363A-4 HVAC drive is a wall-mounted controller for efficient HVAC fans, pumps, and compressors. Engineers often face long commissioning times and complex wiring when upgrading or retrofitting systems. Its IP21 enclosure, with IP55 options and an optional Bluetooth remote for commissioning, supports reliable operation in mission-critical environments. This compact drive offers built-in HVAC features that streamline startup and reduce installation steps. With an intuitive control panel tailored to HVAC settings, technicians can configure performance quickly while maintaining system safety. The solution also integrates seamlessly into building automation workflows, delivering energy-efficient control and predictable reliability across commercial and industrial HVAC installations.
Product Information
Extended Description
3ABD00047441-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control features directly manage fans, pumps and compressors. Business Impact: Reduces external controller wiring and accelerates startup, delivering smoother operation and lower commissioning risk. Application: Ideal for air handling units and chillers in commercial buildings and industrial facilities. Feature: Intuitive HVAC-specific control panel with primary settings and help assistants. Business Impact: Decreases commissioning time, minimizes operator error, and simplifies ongoing tuning for facilities teams. Application: Quick configuration during new installs or retrofits in data centers and office campuses. Feature: Optional Bluetooth capability enables remote commissioning and monitoring. Business Impact: Cuts field visits, enables proactive maintenance, and supports off-site troubleshooting. Application: Large campuses or remote plants where on-site access is limited. Feature: IP21 standard enclosure with IP55 and flange mounting options. Business Impact: Offers installation flexibility and environmental protection across indoor HVAC rooms and mechanical spaces. Application: Wall-mounted installations in air handling rooms, plant floors, and retrofit projects. Feature: Compact integration within the ABB ACH580 family enhances reliability and maintenance efficiency. Business Impact: Fewer external components, easier spare-part management, and consistent performance across deployments. Application: Retrofit projects and new builds aiming for streamlined maintenance and scalable control.
Get a Quick Quote for a ABB 3ABD00047441-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047441-D?
Enquire Now
FAQs
The ACH580-01-363A-4 is a dedicated HVAC drive with built-in control features optimized for fans, pumps, and compressors. It streamlines startup, reduces wiring and external hardware, and supports precise speed control for energy-efficient operation in air handling units and chillers.
The drive provides a 200 kW, 363 A power rating and comes in an IP21 enclosure by default, with IP55 and flange-mount options available for greater environmental protection and installation flexibility in HVAC cabinets and wall-mounted configurations.
Yes. Built-in HVAC features, a robust control interface, and options for remote commissioning via Bluetooth support reliable operation in mission-critical environments such as data centers, hospitals, and industrial plants, while enabling rapid startup and reduced maintenance visits.
Yes, the drive offers optional Bluetooth capability that enables commissioning and monitoring from a distance, reducing site visits and enabling timely adjustments without on-site travel.
Key advantages include reduced installation time through built-in HVAC features, an intuitive control panel for faster setup, remote commissioning via Bluetooth, and flexible enclosure options (IP21 standard with IP55 option) for varied HVAC environments, lowering maintenance costs and increasing system reliability.
