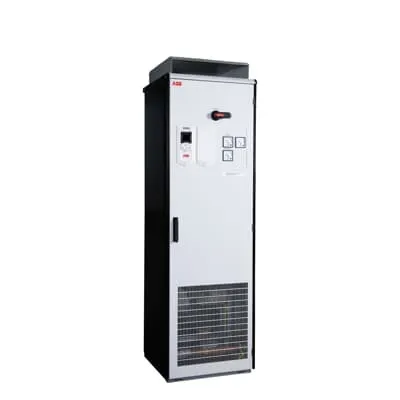

ABB 3ADT218520A2213 DC Converter Cabinet - 600 VAC
Part Number: 3ADT218520A2213
Quick Summary
ABB 3ADT218520A2213 DC Converter Cabinet provides reliable DC power conversion for large-scale automation systems. This model delivers 600 VAC at 320 A in a rugged 300 kg cabinet built for demanding environments. Operators face integration delays and inconsistent performance when retrofitting power cabinets into existing lines; this DCS880-based cabinet offers plug-and-play compatibility with ABB drives and modular expansion to streamline deployment. While certifications aren’t listed in this dataset, verify CE, UL, and IP rating status to ensure regulatory alignment for your facility. With Poland-origin manufacturing and a 35-day lead time, ABB supports regional supply assurance and on-time project delivery, reducing downtime and boosting overall equipment effectiveness in your factory.
Product Information
Extended Description
3ADT218520A2213 ABB: DC Converter;
Type: DCS880-A02-0320-06X2;
4Q Converter;
Voltage: 600 VAC;
Current: 0320 A;
Weight: 300kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85371098
HS Code
853710-- Boards, panels, consoles, desks, cabinets and other bases, equipped with two or more apparatus of heading 85.35 or 85.36, for electric control or the distribution of electricity, including those incorporating instruments or apparatus of Chapter 90, and numerical control apparatus, other than switching apparatus of heading 85.17.- For a voltage not exceeding 1,000 V
Invoice Description
DC Converter;
Type: DCS880-A02-0320-06X2;
4Q Converter;
Voltage: 600 VAC;
Current: 0320 A;
Weight: 300kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
300 kg
Product Net Depth / Length
644 mm
Product Net Height
2120 mm
Product Net Width
630 mm
Package Level 1 Depth / Length
644 mm
Package Level 1 Height
2120 mm
Package Level 1 Width
630 mm
Sound dB (A)
78 dB(A)
Frame Size
H3
Product Name
DCS880 DC Converter Cabinet
Feature: Four-quadrant (4Q) DC converter capability. Business impact: Enables bidirectional energy flow and regenerative energy use, reducing wear and energy waste in drive systems. Application: Large drive configurations and servo-controlled lines where energy recovery improves efficiency. Feature: 600 VAC voltage rating. Business impact: Supports high-power distribution with robust insulation margins, enabling safer, reliable operation across extended duty cycles. Application: Industrial automation cabinets and motor control centers that require consistent high-voltage DC supply. Feature: 320 A current capacity. Business impact: Handles heavy current draws for demanding automation tasks, improving system responsiveness and reducing heat-related losses. Application: High-performance CNCs, conveyors, and robotics systems with significant peak demands. Feature: DCS880-A02-0320-06X2, 644 mm L x 630 mm W x 2120 mm H, H3 frame. Business impact: Clear installation footprint and standardized mounting to accelerate installation and reduce integration risk. Application: retrofit projects and new builds using ABB cabinet ecosystems. Feature: Weight 300 kg and sound level 78 dB(A). Business impact: Solid, vibration-tolerant construction suitable for factory floors while maintaining manageable acoustic profiles. Application: Heavy-duty environments where durability and predictable noise are considerations. Feature: Availability and lead times. Business impact: Stocked at DEAPREXPU and SGIND002EXPU with a 35-day lead time enabling better procurement planning. Application: Project scheduling, OEM builds, and plant-wide rollouts requiring reliable replenishment.
Get a Quick Quote for a ABB 3ADT218520A2213
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218520A2213?
Enquire Now
FAQs
This cabinet is designed to integrate with ABB drive ecosystems, notably the DCS880 family, and supports a 600 VAC, 320 A DC supply. With its 644 mm L × 630 mm W × 2120 mm H footprint and H3 frame, it fits standard industrial rack layouts and floor-mounted installations. Verify mounting provisions on site for seamless integration.
Key specs include 600 VAC operation, 320 A current rating, four-quadrant (4Q) conversion, and a weight of 300 kg. Dimensions are 644 mm length, 630 mm width, and 2120 mm height, with a sound level of 78 dB(A). Model identifiers include DCS880-A02-0320-06X2, suitable for heavy-duty automation tasks.
Yes. The 320 A capacity and 600 VAC rating enable reliable power delivery to high-demand servo drives and large motor control cabinets. The four-quadrant design supports bidirectional energy flow, improving energy efficiency and dynamic response in manufacturing cells, high-speed packaging lines, and material handling systems.
Certification details aren’t listed in the dataset. For compliance you should confirm CE and UL markings where applicable, plus determine any IP ratings required for your environment. Work with ABB or authorized distributors to obtain current certification documentation and ensure your facility meets regulatory requirements.
Warranty terms indicate products under warranty must be returned, so coordinate with the supplier for coverage. ROI benefits stem from higher reliability, energy recovery via the 4Q converter, and reduced downtime in automated lines. Plan for a 35-day lead time and regional stock to minimize project delays and optimize plant uptime.
