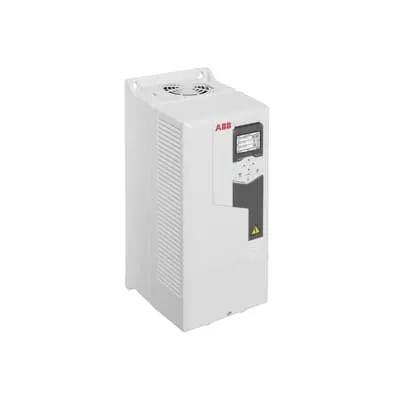

ABB 3AXD50000270897 ACS580-01 Wall-Mounted Drive - IP66 Type 4X
Part Number: 3AXD50000270897
Quick Summary
ACS580-01 wall-mounted drive is a robust motor control solution for demanding industrial applications. In harsh environments, reliability and seamless integration are critical, and this drive mitigates downtime with coated control boards and high-enclosure options. It is available in UL Type 1, Type 12 and Type 4X variants with IP ratings up to IP66, delivering rugged protection and regulatory confidence. For OEMs and end users, the ACS580-01 provides a consistent control-panel experience across ABB drives, enabling faster deployment, easier maintenance, and unified configuration workflows while delivering efficient V/Hz and sensorless vector control for diverse motor types.
Product Information
Extended Description
3AXD50000270897 ABB: The wall-mounted ACS580-01 is available as UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) designed for OEM and end users who value high quality and robustness in their applications. Coated control boards, high enclosure classes, and motor temperature monitoring ensure processes will run smoothly even in harsh conditions. This drive is part of ABB=E2=80=99s all-compatible drives portfolio, sharing the same control panel, PC tools, parameter structure and communications options as the ACS380/180 and ACS880. Learn it once; use it everywhere. With both V/Hz and sensorless vector control supporting most motor types such as induction, permanent magnet, synchronous reluctance, and optimum pole motors the ACS580 is ideal for use on compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and other variable and constant torque applications, in a variety of industries, including food and beverage, plastic, textile, material handling, and agriculture.
Feature → The wall-mounted ACS580-01 design supports multiple enclosure ratings (UL Type 1, Type 12, and Type 4X) and IP codes up to IP66, protecting sensitive electronics in demanding settings. Business Impact → Reduced risk of ingress-related failures, lower service costs, and longer mean time between failures (MTBF) in environments with dust, moisture, or washdowns. Application → Suitable for OEM and end-user installations in conveyors, compressors, pumps, extruders, and other equipment where compact footprint and rugged protection matter. Feature → Coated control boards and high enclosure classes enhance durability under harsh conditions. Business Impact → Improved reliability, easier compliance with harsh-environment standards, and extended equipment life. Application → Food and beverage processing, plastics, textile manufacturing, and material handling where environmental exposure is common. Feature → V/Hz and sensorless vector control support across multiple motor types (induction, permanent magnet, synchronous reluctance, optimum pole). Business Impact → Optimized torque control, energy efficiency, and broader motor compatibility, reducing total cost of ownership. Application → Drives for compressors, mixers, fans, and pumps demanding flexible motor control. Feature → Common control panel, PC tools, parameter structure, and communications with ABB’s ACS380/180/880 families. Business Impact → Accelerated commissioning, simplified maintenance, and a unified engineering workflow. Application → System integrators and OEMs deploying multi-drive architectures in manufacturing lines. Feature → Coexistence with robust protection features and temperature monitoring for reliable operation. Business Impact → Early fault detection, reduced unplanned downtime, and safer startup/shutdown sequences. Application → Critical processes in plastics, textiles, and material handling where process stability matters.
Get a Quick Quote for a ABB 3AXD50000270897
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000270897?
Enquire Now
FAQs
ACS580-01 supports V/Hz and sensorless vector control for a wide range of motor types, including induction, permanent magnet, synchronous reluctance, and optimum pole motors. With 240 V input and up to 59.4 A (20 Hp), it fits standard 3-phase systems and can be mounted in UL Type 1, Type 12, or Type 4X enclosures, simplifying OEM integration and field commissioning.
The drive delivers up to 20 Hp (approx. 59.4 A) at 240 V, and uses both V/Hz and sensorless vector control to optimize torque across varying loads. It is suitable for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans, delivering reliable speed control, improved energy efficiency, and reduced wear on mechanical systems.
Yes. The ACS580-01 is available in enclosure variants up to IP66 (Type 4X) with UL Type 1 and Type 12 options, and features coated control boards to withstand harsh conditions. This combination provides durable protection against dust, moisture, and incidental cleaning, making it appropriate for demanding manufacturing environments.
The drive supports UL Type 1, Type 12, and Type 4X configurations with IP ratings up to IP66. These enclosure options help meet regulatory and safety requirements across OEM installations and end-user applications, while enabling reliable operation in varied industrial settings.
With a common control panel interface, shared PC tools, and a unified parameter structure across ABB drives, the ACS580-01 accelerates commissioning and reduces training needs. Its robust protection, motor-temperature monitoring, and sensorless vector control contribute to lower downtime, less spare-part inventory, and longer service intervals, boosting overall equipment effectiveness.
