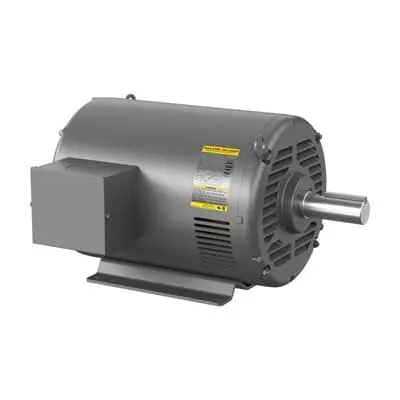

ABB 7BEHM2535T General Purpose HVAC - Premium Efficiency
Part Number: 7BEHM2535T
Quick Summary
ABB 7BEHM2535T is a general purpose HVAC motor for 30 HP, 3-phase, 60 Hz applications in commercial and industrial cooling and ventilation systems. Engineers often struggle to balance reliability, efficiency, and maintenance in demanding HVAC drives; this motor addresses that by combining robust design with serviceability. With CSA | UR certification and a Premium Efficiency rating, it aligns with stringent standards while delivering proven performance in difficult environments. Its 286T frame, 1775 rpm, and 230/460 V capability provide flexible installation options, while stock availability and fast lead times support rapid project completion. In short, this motor improves energy performance and uptime for HVAC applications in facilities and process cooling.
Product Information
Extended Description
7BEHM2535T ABB: General Purpose HVAC 30 Hp 230 V (EHM2535T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1775RPM,3PH,60HZ,286T,4060M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM2535T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
40LYJ098: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
EHM2535T
Gross Volume
14448.906 in³
Gross Weight
339 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30HP,1775RPM,3PH,60HZ,286T,4060M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 30 HP, 1800 RPM, Frame Size 286T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHM2535T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
82 %
Product Name
General Purpose HVAC
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
339 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
72 A | 36 A
Rated Efficiency
94.10 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 286T frame 30 HP design fits standard HVAC drive systems, enabling straightforward retrofits and compatibility with existing component sets, reducing integration risk for building systems. This translates to lower commissioning time and cost savings in new install projects or upgrades to aging fans and blowers. Feature → Business Impact → Application: 3-phase, 60 Hz operation with 230/460 V rating allows flexible power sourcing across facilities, decreasing the need for new transformers or specialty wiring and simplifying procurement for expansion HVAC duties. Feature → Business Impact → Application: OPSB enclosure and direct on line (DOL) starting deliver straightforward installation and reliable startup in demanding environments, boosting uptime and reducing start-up delays in critical cooling loops. Feature → Business Impact → Application: Foot mounted, horizontal F1 mounting and standard drive end flange simplify alignment and reduce mounting accessories, speeding field assembly and serviceability for air handling units and process cooling equipment. Feature → Business Impact → Application: Regreasable bearings (6311) and a robust 30 HP drivetrain support longer bearing life and reduced daily maintenance, lowering total cost of ownership for long-running HVAC drives. Feature → Business Impact → Application: Premium Efficiency and 1.15 service factor deliver energy savings and operational resilience, helping facilities meet energy use targets while maintaining performance under peak loads in fans and pumps. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time ensures quick procurement and approximate total cost reduction for project timelines, particularly in retrofit projects and facilities with high uptime requirements.
Get a Quick Quote for a ABB 7BEHM2535T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHM2535T?
Enquire Now
FAQs
Yes. The 7BEHM2535T is a 3-phase, 60 Hz motor rated for 230 V or 460 V and is designed for foot-mounted, horizontal installations (F1). It supports direct on line starting, simplifying electrical integration and reducing soft-start requirements in HVAC fans and blowers.
This motor carries Premium Efficiency (NEMA 12-12) with a rated efficiency of 94.10% and a service factor of 1.15. These specifications translate to lower energy consumption and improved performance under peak loads, beneficial for energy-intensive HVAC applications.
Ideal for General Purpose HVAC tasks such as fans, blowers, and cooling pumps, particularly in commercial and light industrial environments. Its OPSB enclosure and 30 HP rating with 1775 rpm make it a robust option for continuous duty cooling and ventilation systems.
The motor carries CSA | UR certification, aligns with NEMA standards, and is designed for a 286T frame with a F insulation class. This combination supports compliance in regulated environments and simplifies approval processes for HVAC equipment.
The unit is stocked at multiple warehouses with 0 day lead time, facilitating rapid procurement. Warranty terms follow standard ABB policies with a stated condition that warranty returns are handled accordingly; this supports fast replacement and ongoing maintenance for critical HVAC installations.
