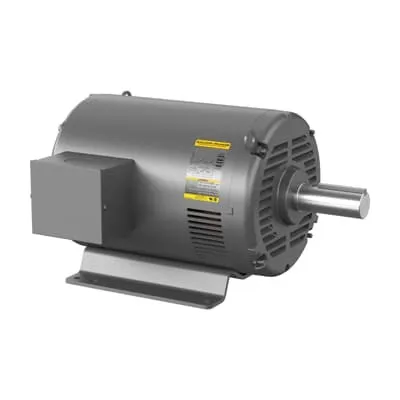

ABB 7BEHM2539T Motors & Drives - 40HP, 60Hz, OPSB
Part Number: 7BEHM2539T
Quick Summary
ABB 7BEHM2539T General Purpose HVAC motor delivers 40 HP for 3-phase climate control in commercial and industrial settings. Engineers often face downtime, energy waste, and sourcing constraints when selecting reliable HVAC motors for critical systems. This model carries CSA and UR listings with NEMA design code A and an OPSB enclosure, plus IE3 premium efficiency for steady performance. With a rugged 324T frame and direct-on-line start, it supports easy installation, predictable maintenance, and broad compatibility across 230/460 V systems, helping facilities reduce energy costs while meeting regulatory requirements.
Product Information
Extended Description
7BEHM2539T ABB: General Purpose HVAC 40 Hp 230 V (EHM2539T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1770RPM,3PH,60HZ,324T,4064M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM2539T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
40LYE329: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EHM2539T
Gross Volume
14448.906 in³
Gross Weight
433 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40HP,1770RPM,3PH,60HZ,324T,4064M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 40 HP, 1800 RPM, Frame Size 324T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHM2539T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
82 %
Product Name
General Purpose HVAC
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
433 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
98 A | 49 A
Rated Efficiency
94.10 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Shaft Grounding
Mounting Provisions Only
Short Description
40 HP, 1800 RPM, Frame Size 324T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 40 HP, 3-phase motor operates at 60 Hz with 230/460 V capability, delivering robust power for HVAC fans and pumps while minimizing wiring complexity and inventory. This directly reduces spare parts costs and speeds up commissioning in commercial buildings and process HVAC. Feature → Business Impact → Application: IE3 premium efficiency at 94.10% improves energy utilization across continuous duty cycles, lowering operating expenses in large air-handling units and industrial ventilation systems. Feature → Business Impact → Application: OPSB enclosure with NEMA design A supports reliable operation in standard industrial environments, easing installation above floors or in mechanical rooms and improving serviceability. Feature → Business Impact → Application: Direct On Line starting reduces upfront drive hardware while enabling quick resets and straightforward maintenance for mainstream HVAC drives. Feature → Business Impact → Application: 1.15 service factor and a 324T frame provide a degree of overload capability for seasonal demand or temporary load spikes in fans and blowers. Feature → Business Impact → Application: 2.13 in shaft diameter and foot-mounted, horizontal mounting simplify retrofit or replacement of legacy motors in packaged HVAC units and pumps, with compatible mounting footprints and dimensions. Feature → Business Impact → Application: CSA/UR listings and NEMA design compliance give procurement teams confidence in regulatory adherence, supplier continuity, and long-term maintenance planning. Long-tail keywords integrated include 3-phase HVAC motor, 40 HP motor, 324T frame, OPSB enclosure, 230/460 V, IE3 efficiency, NEMA design A, CSA UR listed, direct on line motor, foot mounted motor, HVAC fan motor, and 1770 r/min performance.
Get a Quick Quote for a ABB 7BEHM2539T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHM2539T?
Enquire Now
FAQs
Yes. The 7BEHM2539T is rated for 230 V or 460 V in a 3-phase, 60 Hz configuration. It supports direct-on-line starting and is designed for straightforward wiring and quick commissioning in HVAC equipment.
The motor uses a 324T frame and is foot-mounted with horizontal mounting orientation (F1). This footprint aligns with common HVAC fans, blowers, and pumps, enabling easy retrofit and replacement in existing installations.
The model is CSA and UR listed, with a NEMA design A. It also features IE3 premium efficiency and an OPSB enclosure, providing regulatory compliance and reliability for industrial HVAC applications.
The motor delivers IE3 efficiency at about 94.10% and a service factor of 1.15, offering better overload tolerance and energy savings in continuous operation typical of HVAC systems.
With regreasable bearings, a 2.13 in shaft diameter, and a weight around 433 lb, plan for periodic lubrication, secure mounting, and proper shaft alignment. Its OPSB enclosure supports rugged use, while 60 Hz operation suits standard industrial power networks.
