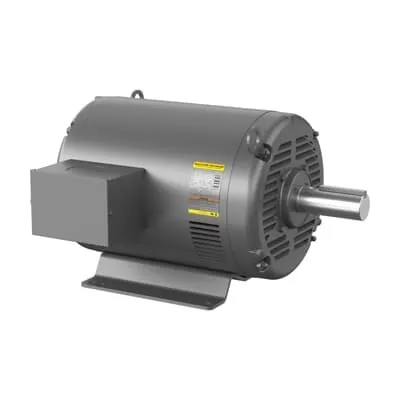

ABB 7BEHM2547T General Purpose HVAC Motor - OPSB
Part Number: 7BEHM2547T
Quick Summary
ABB 7BEHM2547T is a general purpose HVAC motor for reliable fans and blowers in commercial systems. OEMs and integrators often struggle with downtime and supply chain gaps when parts are unavailable or mismatched. This motor carries CSA/UR certification, NEMA standards, and IE3 premium efficiency, ensuring compliant performance and energy savings. With a rugged 364T frame, 230/460 V operation, and broad stock availability, it helps reduce lead times and total cost of ownership for HVAC projects and process cooling applications.
Product Information
Extended Description
7BEHM2547T ABB: General Purpose HVAC 60 Hp 230 V (EHM2547T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1775RPM,3PH,60HZ,364T,4272M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM2547T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
42LYH067: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
EHM2547T
Gross Volume
18748.226 in³
Gross Weight
582 lb
Horsepower Rating UL/CSA
60.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
60HP,1775RPM,3PH,60HZ,364T,4272M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 60 HP, 1800 RPM, Frame Size 364T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHM2547T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
88 %
Product Name
General Purpose HVAC
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
582 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
136 A | 68 A
Rated Efficiency
95 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B42H067W434G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Shaft Grounding
Mounting Provisions Only
Short Description
60 HP, 1800 RPM, Frame Size 364T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature: 60 HP, 1775 r/min, 3-phase, 60 Hz operation; Business Impact: high-efficiency, reliable continuous duty with direct-on-line start; Application: HVAC fans and compressor cooling systems. Feature: OPSB enclosure and foot-mounted, horizontal orientation (F1); Business Impact: robust protection in demanding environments and straightforward installation; Application: commercial building HVAC units and industrial air handling. Feature: 230/460 V dual voltage and 364T frame; Business Impact: universal compatibility across global sites, reduced stocking needs; Application: worldwide OEM deployments and service fleets. Feature: IE3 efficiency and CSA/UR/NEMA standards; Business Impact: lower energy costs and regulatory compliance, easing procurement audits; Application: energy-conscious installations and governed equipment upgrades. Feature: Regreasable bearings and 1.15 service factor; Business Impact: longer motor life, predictable maintenance cycles, reduced downtime; Application: continuous process cooling and air handling in harsh environments. Industry context: 4-pole design with 1800 r/min synchronous speed supports steady HVAC performance and lifecycle cost reductions; Approach: aligns with long-term reliability goals while enabling straightforward retrofits into existing 364T frames.
Get a Quick Quote for a ABB 7BEHM2547T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHM2547T?
Enquire Now
FAQs
Yes. The 7BEHM2547T is a 3-phase motor rated for 230 V and 460 V operation at 60 Hz, enabling flexible integration across regional power grids. It is foot-mounted with horizontal mounting (F1) and a 364T frame, designed for straightforward installation in HVAC fans and blowers.
Key specs include 60 HP, 1775 r/min (4-pole), and a 364T frame. It utilizes an OPSB enclosure suitable for HVAC environments, with direct-on-line starting capability and a service factor of 1.15. These features support reliable, long-life operation in continuous duty.
Ideal for general HVAC duties such as supply and return fans, air handling units, and process cooling blowers. The 364T frame and OPSB enclosure pair with 230/460 V operation to fit standard industrial footprints, while IE3 efficiency reduces energy consumption in large-scale cooling systems.
The motor carries CSA/UR certifications and aligns with NEMA standards. It also meets IE3 premium efficiency requirements, making it suitable for energy-labeled installations and compliance-driven procurement, with a warranty and return policy in line with supplier terms.
This model uses regreasable bearings for extended service life and predictable maintenance cycles, reducing unscheduled downtime. It is stocked at multiple warehouses for rapid replacement, lowering downtime costs and improving project ROI through faster commissioning and ongoing availability.
