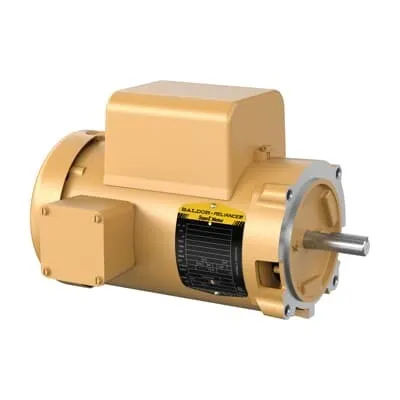

ABB 7BKEL11205A General Purpose Motor - 56C Open Frame
Part Number: 7BKEL11205A
Quick Summary
General purpose motor delivers reliable 0.33 HP for 1-phase drives in light industrial equipment. This ABB model is designed for simple integration, fast delivery, and predictable performance in conveyors, fans, or small automation stages. When downtime or mismatch between supply and equipment causes headaches, you need a readily stocked ABB open-frame motor with standard 56C dimensions and 60 Hz compatibility. The design adheres to common NEMA design principles and UL energy certification expectations, while the 56C frame, C-face mounting, and OPEN enclosure simplify installation and service. With 115/230 V operation and 3475 rpm, it integrates smoothly with existing systems, delivering consistent torque and easy retrofits. The compact footprint and straightforward procurement help reduce spare parts inventory and support rapid project execution.
Product Information
Extended Description
7BKEL11205A ABB: General Purpose Motor 0.33 Hp 115 V (KEL11205A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,3475RPM,1PH,60HZ,56C,3413LC,O
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
KEL11205A
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM524: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
KEL11205A
Gross Volume
2110.969 in³
Gross Weight
24 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.33HP,3475RPM,1PH,60HZ,56C,3413LC,OPEN,F
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.33 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (KEL11205A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
97 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
24 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A | 1.5 A
Rated Efficiency
70.50 %
Rated Speed
3475 r/min
Selling Unit of Measure
piece
Service Factor
1.35
Shaft Diameter
0.63 in
Short Description
0.33 HP, 3600 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → 1-phase, 115/230 V, 60 Hz operation improves wiring simplicity and compatibility across standard plant power. Business Impact → Reduces miswiring risk and accelerates commissioning in conveyors, fans, and small automation equipment. Application → Ideal for light-duty OEM lines and retrofit projects where fast procurement is essential.
Get a Quick Quote for a ABB 7BKEL11205A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BKEL11205A?
Enquire Now
FAQs
Yes. The motor is rated for dual voltage operation (115 V | 230 V) at 60 Hz, enabling straightforward integration into equipment powered from common plant distributions. In new designs, alignment with standard control panels and starter modules is simplified by the 1-phase configuration and direct-on-line starting capability.
Key specs include 0.33 HP output, 3475 r/min (Synchronous ~3600 r/min), 56C frame, 1 phase, 115/230 V, 60 Hz, insulation class F, PF ~97%, and direct-on-line starting. This combination supports reliable startup, steady speed, and energy-efficient operation in light-duty drives.
Best-suited applications include conveyors, fans, and small automation stages that fit a 56C frame with C-face mounting and OPEN enclosure. The horizontal mounting orientation and footless base simplify installation in compact equipment, while the open design eases service access during maintenance.
The model aligns with NEMA design principles and UL energy certification expectations (UR). It also carries a NEMA-compliant design designation. These standards support regulatory compliance and compatibility with many OEM and integrator requirements.
Expect straightforward maintenance due to a robust 6203 ball bearing, open enclosure for easy inspection, and a steel frame that resists damage in open environments. ROI is enhanced by 0.33 HP efficiency, simple procurement, 0 day lead times, and minimal downtime during replacement or upgrade projects.
