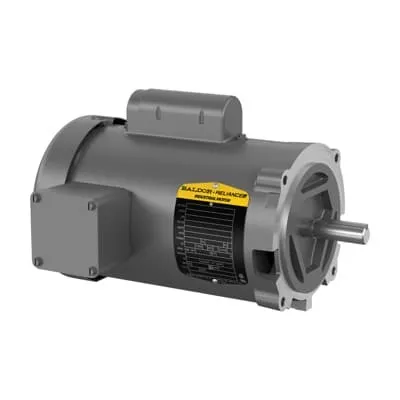

ABB 7BKL1200 General Purpose Motor - 0.17HP 60Hz
Part Number: 7BKL1200
Quick Summary
ABB 7BKL1200 is a compact general purpose motor designed for dependable single‑phase open‑frame operation across conveyors, pumps, and fans. With 0.17 horsepower and a 60 Hz, 115/230 V rating, it delivers consistent torque and reliable speed control in typical industrial environments. The motor is stocked across multiple warehouses with a 0‑day lead time, helping minimize downtime and spare parts costs. Certified for CSA | UR and RoHS compliant, it features a 56C frame with C‑face mounting for straightforward retrofits. For OEMs and maintenance teams, the combination of robust bearings, an OPEN enclosure, and standardized dimensions reduces installation risk and accelerates project timelines.
Product Information
Extended Description
7BKL1200 ABB: General Purpose Motor 0.17 Hp 115 V (KL1200)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.17HP,1725RPM,1PH,60HZ,56C,3408L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
KL1200
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYF011: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
KL1200
Gross Volume
1400.25 in³
Gross Weight
19 lb
Horsepower Rating UL/CSA
0.170 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.17HP,1725RPM,1PH,60HZ,56C,3408L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.17 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (KL1200)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.17 Hp
Power Factor
57 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
19 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.8 A | 1.9 A
Rated Efficiency
49 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.63 in
Short Description
0.17 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
M
Voltage Rating
115 V | 230 V
Feature → The 1‑phase, 60 Hz design supports dual voltage (115 V / 230 V), enabling flexible integration in North American automation projects. Business Impact → Reduces inventory complexity and accelerates procurement for mixed‑voltage equipment. Application → Suitable for general machinery, conveyors, and small pumps that require quick installation and reliable performance. Long‑tail keywords integrated: single‑phase motor, 115/230 V motor, 60 Hz drive, general purpose motor. Feature → 56C frame with C‑face mounting and a footless base provides standardized mounting and compact footprints. Business Impact → Simplifies retrofits and machine upgrades, cutting install time by aligning with common industrial frames. Application → Retrofit projects and OEM line integrations. Feature → OPEN enclosure improves heat dissipation and access for maintenance. Business Impact → Lower operating temperatures and easier inspection; reduces downtime during service. Application → Open‑frame installations in shop floors and machinery rooms. Feature → Regreasable bearings (6203) and durable 4P design deliver longevity under typical loads. Business Impact → Extends service life and reduces maintenance cycles in demanding environments. Application → Conveyors, blowers, and fans. Feature → RoHS compliant with CSA | UR certifications and 0 day lead time stock. Business Impact → Compliance reduces risk and accelerates compliance‑driven deployments; fast fulfillment minimizes downtime. Application → Global manufacturing lines and repair centers.
Get a Quick Quote for a ABB 7BKL1200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BKL1200?
Enquire Now
FAQs
The 7BKL1200 is a single‑phase motor designed for Direct On Line (DOL) starting. It supports VFDs for speed control, but you should account for higher inrush and ensure the drive’s torque profile matches the motor’s 0.17 HP rating, 3.8 A (115 V) / 1.9 A (230 V) ratings, and service factor of 1.35. Proper derating and ramping settings will optimize performance and longevity.
Key specs include: 1‑phase, 60 Hz operation; voltage rating 115 V / 230 V; horsepower 0.17 HP; rated speed 1725 r/min; frame 56C; current 3.8 A at 115 V and 1.9 A at 230 V; service factor 1.35; RoHS compliant; enclosure OPEN; shaft diameter 0.63 in. These support straightforward cross‑referencing and compatible replacements in general purpose automation tasks.
Ideal applications include general purpose open‑frame drives in conveyors, small pumps, fans, and light automated equipment. The 56C frame with C‑face mounting and horizontal orientation makes retrofits and machine upgrades straightforward, while the regreasable bearings support longer service intervals in typical workshop environments.
This motor carries CSA | UR certifications and RoHS compliance, ensuring electrical safety and restricted‑materials conformance in North American and global facilities. These certifications simplify procurement for regulated environments and help meet industry and customer requirements for compliant automation components.
With 0‑day lead time stock across multiple warehouses, procurement delays are minimized, reducing downtime and accelerating project timelines. The product warranty policy and return terms help manage risk, while features like regreasable bearings and open enclosure decrease maintenance costs and extend motor life, contributing to a favorable return on investment over the motor’s service life.
