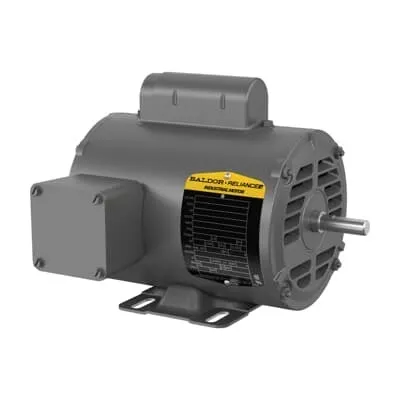

ABB 7BL1201 General Purpose Motor - CSA UR, 1PH
Part Number: 7BL1201
Quick Summary
ABB 7BL1201 General Purpose Motor delivers reliable single-phase power for open-enclosure drives in light industrial equipment. With 0-day lead time and stock available across multiple warehouses, project delays and sourcing surprises are minimized. The motor carries CSA and UR safety certifications, aligns with NEMA design standards, and is RoHS compliant, ensuring regulatory and environmental compliance. It supports 115/230 V operation with a 1-phase, 60 Hz supply and is suitable for horizontal, foot-mounted installations. This combination delivers predictable performance, reduced downtime, and easy procurement for OEMs and maintenance teams, helping to shorten commissioning cycles and lower total cost of ownership.
Product Information
Extended Description
7BL1201 ABB: General Purpose Motor 0.17 Hp 115 V (L1201)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.17HP,1140RPM,1PH,60HZ,48,3418L,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1201
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYF001: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
L1201
Gross Volume
1400.25 in³
Gross Weight
23 lb
Horsepower Rating UL/CSA
0.170 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.17HP,1140RPM,1PH,60HZ,48,3418L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.17 HP, 1200 RPM, Frame Size 48, Standard Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (L1201)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
48
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.17 Hp
Power Factor
52 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
23 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
47 %
Rated Speed
1140 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.5 in
Short Description
0.17 HP, 1200 RPM, Frame Size 48, Standard, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
P
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: Open enclosure and frame size 48 enable straightforward installation and robust cooling in open-air environments, reducing startup time and service disruption for line equipment like conveyors and pumps. Feature → Business Impact → Application: 1-phase, 60 Hz operation at 115/230 V provides flexible electrical compatibility, simplifying retrofit projects and minimizing wiring changes during installation. Feature → Business Impact → Application: 0.17 Hp (0.170 Hp) at 1140 rpm delivers sufficient torque for small- to mid-range drives, improving startup response and overall process control in fans, blowers, and light-duty pumps. Feature → Business Impact → Application: Foot-mounted, horizontal (F1) mounting supports quick machine integration and interchangeability with existing frames, lowering capital expenditure for OEMs. Feature → Business Impact → Application: Regreasable bearings (6203 | Ball) and open enclosure reduce maintenance intervals and spare-part complexity, delivering longer mean time between failures in deteriorating environments. Feature → Business Impact → Application: Direct On Line starting and RoHS compliance streamline compliance checks and reduce soft costs during commissioning, while price-to-performance remains favorable for retrofits and new builds. Feature → Business Impact → Application: Dual voltage 115/230 V and 1-phase design simplify stocking and cross-site procurement, supporting global projects with consistent parts. This motor’s energy characteristics (PF ~52%, efficiency ~47%) support cost-conscious operations and compliance with energy-efficiency initiatives while remaining compatible with standard drives.
