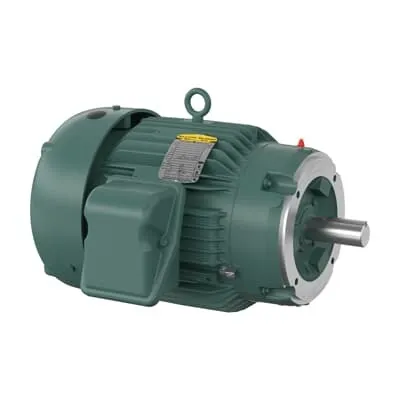

ABB VECP83770T-4 IEEE 841 Severe Duty Motor - Premium Efficiency TEFC 460V
Part Number: 7BVECP83770T-4
Quick Summary
IEEE 841 Severe Duty Motor is an ABB drive solution delivering rugged reliability for demanding industrial drives and pumping applications. Facilities often face uptime gaps and rising maintenance costs in harsh environments, making robust motor design essential. This model carries critical certifications such as NEMA Premium Efficiency, CSA EEV, and UR, signaling strong compliance and energy performance in real-world conditions. With 7.5 HP, 460 V, a TEFC enclosure, and 3-phase operation, it reduces lifecycle costs while supporting global deployment. Regreasable bearings and a compact, C-face 213TC frame further enhance service intervals and installation flexibility across diverse plant layouts.
Product Information
Extended Description
7BVECP83770T-4 ABB: Severe Duty Motor 7.50 Hp 460 V (VECP83770T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1765RPM,3PH,60HZ,213TC,0740M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6307
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VECP83770T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYM323: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
VECP83770T-4
Gross Volume
9144.346 in³
Gross Weight
211 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
7.5HP,1765RPM,3PH,60HZ,213TC,0740M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (VECP83770T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
82 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
211 lb
Product Net Width
18.125 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
9.5 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
460 V
Feature → Business Impact → Application: The IEEE 841 Severe Duty design delivers reliable torque and long-term resilience in tough environments, reducing unscheduled downtime and maintenance costs for pumps, conveyors, and processing lines. This translates to higher throughput and lower total cost of ownership across mining, chemical processing, and from OEMs to end users. Feature → Business Impact → Application: TEFC enclosure on a 213TC frame provides robust protection against dust, moisture, and debris, enabling installation in demanding production floors with horizontal mounting (F1) and C-face drive ends. This supports quick retrofits or new builds in food & beverage, metals, and water treatment facilities. Feature → Business Impact → Application: Regreasable bearings, 1.15 service factor, and 91.70% efficiency deliver lower maintenance frequency and energy costs, translating into measurable energy savings for continuous-duty applications like fans and pumps. Feature → Business Impact → Application: Direct-on-line starting and a 60 Hz, 1765 rpm profile provide fast, simple commissioning and responsive load handling for OEMs and system integrators working with 460 V, 3-phase motors. Feature → Business Impact → Application: Global stock coverage (US, Germany, China, etc.) and 0-day lead times reduce procurement risk, enabling just-in-time sourcing for multi-site operations in oil & gas, mining, and processing plants. This motor’s footprint and weight (211 lb, 28.625 x 17.625 x 18.125 in) simplify replacement and spare-part planning while supporting standard mounting and alignment.
Get a Quick Quote for a ABB 7BVECP83770T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVECP83770T-4?
Enquire Now
FAQs
The VECP83770T-4 uses a 213TC frame and C-face drive end, designed for horizontal mounting (F1) with TEFC enclosure, ensuring straightforward installation and alignment with common 213TC components and mounting patterns.
This motor delivers Premium Efficiency (NEMA) with a service factor of 1.15. Rated at 7.5 HP and 460 V, it operates at 1765 r/min with a rated current of 9.5 A, supporting energy savings and reliable performance in continuous duty.
Yes. The motor is certified for IEEE 841 Severe Duty use, with a TEFC enclosure and 60 Hz operation, providing rugged performance, extended life, and suitability for harsh processing environments found in mining and chemical facilities.
The motor carries NEMA Premium Efficiency, CSA EEV, and UR certifications, along with CCSA US approval, ensuring energy efficiency, safety compliance, and market readiness across North America and international sites.
Regreasable lubrication reduces maintenance intervals by enabling controlled bearing lubrication, extending bearing life and reducing replacement costs. Coupled with 91.7% efficiency and a robust frame, this supports lower operating expenses and faster payback in continuous-duty applications.
