Eaton ECGJH324 Coupling - 1 in Trade Size Hazardous
Part Number: ECGJH324
Quick Summary
The Eaton ECGJH324 coupling delivers a 24-inch flexible connection for hazardous-location electrical systems. End users often grapple with rigid fittings that hinder alignment, cause leaks, or force time-consuming rework in tight spaces. This design meets NEC/CEC requirements and provides hazardous-location ratings Class I, Division 1; Class II, Division 1; and Class III, supporting safe operation in explosive atmospheres. Forged brass construction ensures durability in corrosive settings, while a 1 inch trade-size interface simplifies sourcing and compatibility with standard conduits. By reducing installation steps and OEM part variety, it also lowers total cost of ownership and speeds field deployment for plant upgrades and maintenance cycles.
Product Information
Extended Description

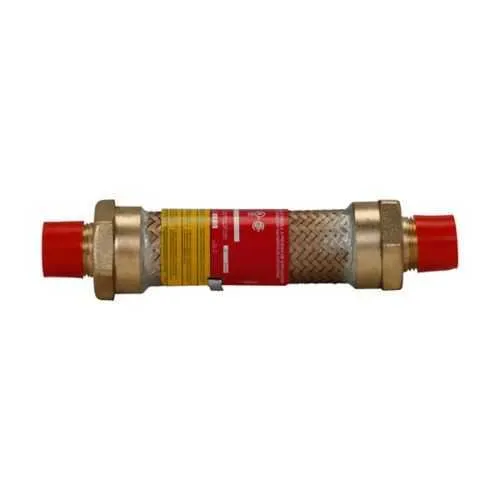

ECGJH324 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ECGJH coupling, 24" flexible length, Male connections both ends, Forged brass, 1" trade size
Product Name
Eaton Crouse-Hinds series ECGJH coupling
Catalog Number
ECGJH324
Product Length/Depth
29 in
Product Height
2.13 in
Product Width
2.13 in
Product Weight
4.9 lb
UPC
782274779140
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
Gender
Male connections both ends
Flexible length
24"
Trade size
1"
Material
Forged brass
Crouse-Hinds series EC Explosionproof Couplings catalog page
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
IF 1618 - ECGJH Flexible Couplings
Eaton Specification Sheet - ECGJH324
Feature: 24-inch flexible length enables easier routing and fewer elbows, reducing installation time and labor costs. Business Impact: Accelerates project timelines and lowers procurement complexity for hazardous-area conduit runs. Application: Long conduit runs in tight spaces and offshore installations. Feature: Male connections on both ends allow plug-and-play assembly with standard ECGJH components. Business Impact: Decreases field fastening time and minimizes seal failure risk through compatible interfaces. Application: Quick field splices and maintenance access. Feature: Forged brass construction offers corrosion resistance and long service life. Business Impact: Reduces replacement cycles and maintenance costs in harsh environments. Application: Chemical plants, refineries, and marine facilities. Feature: 1 inch trade size provides standardization with common conduits. Business Impact: Simplifies stocking and improves procurement speed. Application: Typical electrical harness installations. Feature: NEC/CEC compliance with multiple hazardous-location ratings. Business Impact: Lowers regulatory risk and eases audits. Application: Any installation in Class I, II, III environments. Feature: Documentation and catalog availability support procurement and installation. Business Impact: Improves lifecycle management and project planning. Application: Project kickoff through commissioning in hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds ECGJH324
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECGJH324?
Enquire Now
FAQs
ECGJH324 is designed for NEC/CEC compliant hazardous environments, with Class I Division 1, Class II Division 1, and Class III ratings. It uses a 1 inch trade size and 24 inch flexible length to fit standard conduit runs. The male connectors at both ends facilitate quick field connections to compatible ECGJH fittings or common conduit components, reducing the need for adapters and minimizing seal complexity.
The 24-inch flexible length and dual-end male connections reduce the number of fittings and elbows required, speeding up installations in tight spaces and overhead runs. Forged brass provides durability and corrosion resistance, lowering maintenance needs. This combination translates into fewer field challenges, shorter project timelines, and lower total installed cost for hazardous-area conduit work.
Yes. ECGJH324 is designed for seamless compatibility with other ECGJH series fittings and standard 1 inch conduit components. The male-at-both-ends design supports straightforward, tool-less field assembly, reducing the need for adapters and ensuring reliable seals in hazardous environments.
ECGJH324 is backed by NEC/CEC compliance and hazardous-location ratings (Class I, Division 1; Class II, Division 1; Class III). Procurement is aided by available catalog pages, installation instructions, and certification reports, including Canadian certifications, which streamline audits and regulatory submissions.
With forged brass and a robust 24-inch flexible design, ECGJH324 offers long service life in harsh environments, reducing replacement and maintenance costs. The simplified sourcing and faster installation lower labor hours and downtime, delivering a favorable return on investment for facilities operating in petrochemical, mining, and offshore sectors.
