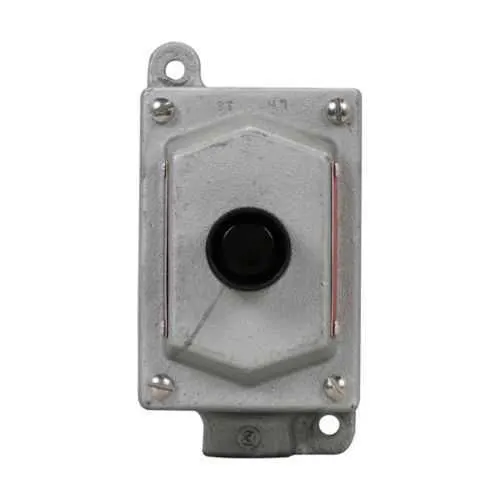

Eaton Crouse-Hinds EDS1184 Pushbutton Control Station - Hazardous Locations

Part Number: EDS1184
EDS1184
Manufacturer
Eaton Crouse-Hinds
Part number
EDS1184
Category

Quick Summary

EDS1184 is a pushbutton control station designed for hazardous-location motor control in industrial settings. When upgrading legacy panels or deploying new equipment in explosive atmospheres, users need rugged reliability and straightforward installation to minimize downtime. This unit carries NEC/CEC hazardous-location certifications with Class I, Division 1 and Class II, Division 1 (plus related Division 2 and Class III provisions) and a robust NEMA rating of 3, 7, 9, supporting safe operation in harsh environments. The combination of a single-gang enclosure, 600 Vac rating, and a durable Feraloy iron alloy housing delivers fast, compliant integration into current control architectures while simplifying maintenance. For engineers and procurement teams, it means safer commissioning, reduced risk, and a scalable path to standardizing hazardous-area control stations across facilities.

Product Information

Extended Description

EDS1184 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Single circuit universal, 1, Single-gang, 1, Dead end, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS1184
Product Length/Depth
5.9 in
Product Height
5.81 in
Product Width
3.5 in
Product Weight
8.16 lb
UPC
782274763675
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Dead end
Trade size
1/2"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EDS/EDSX Hazardous Area Control Stations catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDS1184
Feature: Feraloy iron alloy enclosure provides rugged, durable protection in hazardous locations. Business Impact: Enhanced mechanical strength and heat resistance reduce downtime from enclosure damage and minimize maintenance costs. Application: Suitable for chemical plants, oil & gas facilities, and mining operations requiring explosion-resistant enclosures. Feature: 600 Vac voltage rating and single-gang, one-pushbutton design. Business Impact: Simplifies wiring, improves control-panel density, and supports high-voltage control circuits with reliable operation. Application: Machine control panels and hazardous-area motor controls where safety and reliability are critical. Feature: NEC/CEC certifications and hazardous-area approvals (Class I/Division 1, Class II/Division 1, Class III). Business Impact: Improves regulatory compliance, reduces audit findings, and accelerates project approvals. Application: Any installation in hazardous or classified locations requiring formal NEC/CEC conformance. Feature: NEMA 3, 7, 9 enclosure ratings. Business Impact: Weatherproof and ingress protection for outdoor or industrial indoor environments, decreasing protective housing costs. Application: Outdoor control stations, wet or dusty plant floors. Feature: Dimensions and weight (5.9 in depth, 5.81 in height, 3.5 in width, 8.16 lb). Business Impact: Predictable panel fit and easier enclosure planning, lowering integration risk. Application: Panel design and retrofits where space is constrained. Feature: One device, one pushbutton, 1/2" trade size, with pushbutton enclosure. Business Impact: Simplified sourcing and faster installation with standardized components. Application: Quick-start deployments and maintenance-friendly spares strategy. Feature: Compatibility with SP3D packages and EDS/EDSX catalog pages. Business Impact: Streamlined design validation, accurate part matching, and faster project handoff. Application: Engineering design workflows and procurement approvals for hazardous-area control stations.

Get a Quick Quote for a Eaton Crouse-Hinds EDS1184

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS1184? Enquire Now

FAQs

EDS1184 is a single-gang, 1 pushbutton control station designed for compatible explosionproof systems. It integrates with Crouse-Hinds EDS/EDSX control station families and aligns with installation sheets such as IF 328 for device bodies, ensuring a straightforward, code-compliant retrofit or new-build installation.
It holds NEC/CEC hazardous-location ratings with Class I Division 1 and Class II Division 1 (and corresponding Division 2) approvals, plus Class III, and a NEMA 3, 7, 9 enclosure rating, delivering comprehensive protection for hazardous environments.
Yes. With a 600 Vac rating and a compact single-gang design, it supports high-voltage control circuits while maintaining explosionproof reliability and ease of wiring in hazardous locations.
Follow Eaton’s installation sheets (for example IF 328 family materials) and spartan device bodies guidance. The unit is intended for single-gang, 1-device mounting with a 1/2" trade size and dead-end style, simplifying enclosure layouts and wiring schemes.
It reduces downtime through rugged construction and reliable operation in hazardous environments, lowers compliance risk with NEC/CEC ratings, and supports faster maintenance and spare-part planning via standardized, compatible components.
