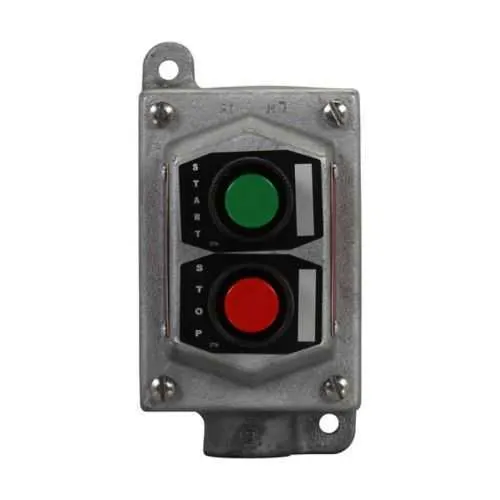

Eaton EDS2155 Pushbutton Control Station - Hazardous
Part Number: EDS2155
Quick Summary
EDS2155 pushbutton control station provides reliable local control for hazardous-area motor starters in industrial plants. Operators often struggle to achieve safe, code-compliant control in harsh environments, facing fragile hardware and difficult maintenance; this unit addresses those challenges with rugged explosion-proof construction and proven industry standards. It carries NEC/CEC compliance with UL explosion-proof certifications and NEMA ratings of 3, 7, and 9, ensuring performance in demanding locations. With its compact, single-gang design, two pushbuttons, and a 3/4" trade size, the EDS2155 supports scalable control while reducing panel space requirements and wiring complexity, delivering meaningful business value through improved reliability and lower lifecycle costs.
Product Information
Extended Description
EDS2155 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit, 2, Single-gang, 2, Dead end, 3/4"
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS2155
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.7 lb
UPC
782274763781
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Dead end
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDS2155
Feature: Two pushbuttons and two devices are integrated in a single-gang enclosure. Business Impact: Reduces panel footprint and wiring complexity while enabling multiple control points from one station. Application: Ideal for start/stop or dual-function control in hazardous locations such as chemical plants and mining operations. Feature: Feraloy iron alloy construction. Business Impact: Delivers rugged durability and resistance to wear in demanding environments, lowering maintenance and replacement costs. Application: Suitable for areas with exposure to dust, moisture, and explosive atmospheres. Feature: With pushbuttons, two circuit, dead end, 3/4" trade size. Business Impact: Standardized, easy mounting and installation within common panel architectures, accelerating commissioning. Application: Retrofit projects and new installations where space is constrained. Feature: NEC/CEC compliance, NEC hazardous ratings, and NEMA 3 7 9 approvals. Business Impact: Enables compliant, safe operation across multiple hazardous classifications, reducing risk and inspection time. Application: Required for installations in Class I/II/III locations and in environments demanding robust enclosure protection. Feature: Downloadable resources and design support (SP3D package, catalog pages, instructions). Business Impact: Speeds engineering, reduces misinterpretation, and improves accuracy during procurement and assembly. Application: Engineering and commissioning teams leveraging vendor data for precise integration.
Get a Quick Quote for a Eaton Crouse-Hinds EDS2155
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS2155?
Enquire Now
FAQs
The EDS2155 is designed as a single-gang enclosure with two pushbuttons and two devices, suitable for Class I/II/III locations. It carries NEC/CEC compliance and UL explosion-proof certification, with NEMA ratings 3, 7, and 9. It supports standard 3/4 inch trade fittings and can be integrated into existing hazardous-area control schemes with reliable performance.
Key specs include a 3.5 in depth, 5.91 in height, 5.81 in width, and a weight of 8.7 lb. It features two pushbuttons, two devices, and a single-gang enclosure. Construction uses Feraloy iron alloy, and the unit is rated for hazardous locations per NEC/CEC with NEMA 3, 7, 9 conformity, making it suitable for harsh environments.
Yes. The EDS2155 is designed for hazardous locations with explosion-proof protection, NEC/CEC compliance, and UL certification. Its dual pushbutton setup supports essential safety interlocks or start/stop functions, while the rugged enclosure and material resistors help prevent failure during critical operations in chemical, oil & gas, and mining applications.
Eaton provides comprehensive resources including installation sheets, catalogs, UL certification reports, and the SP3D design package for EDS/EFS control stations. Access to instruction sheets, hazardous-area catalog pages, and the Eaton specification sheet is available to support engineering, procurement, and commissioning teams.
The EDS2155 delivers reliable explosion-proof control with a compact, space-saving form factor. Its dual pushbuttons reduce panel real estate and wiring, while NEC/CEC compliance and UL/UL Canada certifications minimize regulatory risk. The rugged Feraloy construction extends service life, lowers maintenance costs, and supports compliant, safe operations in harsh industrial settings.
