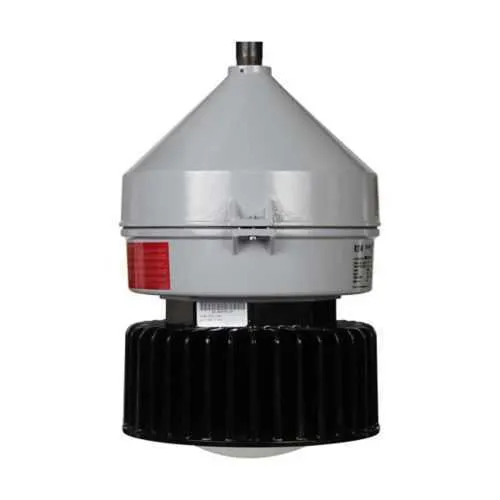

Eaton Crouse-Hinds VMVL-7-3B-UNV1 LED light fixture - IP66 Hazardous Area

Part Number: VMVL-7-3B-UNV1
VMVL-7-3B-UNV1
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-7-3B-UNV1
Category

Quick Summary

VMVL-7-3B-UNV1 LED light fixture provides rugged, reliable hazardous-location illumination for industrial plants. Engineers struggle to meet strict safety codes while keeping downtime to a minimum when lighting fails. This luminaire carries NEC/CEC IECEx/ATEX certifications, Zone 21 hazardous ratings, and IP66/NEMA 4X protection, ensuring compliance and resilience in harsh environments. With a dimmable driver and a broad voltage range, it simplifies design and procurement for automation projects, delivering consistent performance and long life for downstream maintenance savings.

Product Information

Extended Description

VMVL-7-3B-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 175W HID equivalent, No guard, Glass lens, 7000 lumens, 127 lm/W, Die cast aluminum, Cone pendant mount, Type V, 1" trade size, 100-277 Vac, 127-250 Vdc, 61W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-7-3B-UNV1
UPC
662276904781
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
1"
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
61W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
175W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Eaton Specification Sheet - VMVL-7-3B-UNV1 Eaton Specification Sheet - VMVL-7-3B-UNV1
Feature: High lumen output and efficiency; Business Impact: Bright, energy-efficient lighting reduces the number of fixtures required and lowers energy costs; Application: Ideal for chemical plants and oil & gas facilities needing robust vertical illumination in hazardous areas. Feature: Hazardous area certifications and protection; Business Impact: Ensures regulatory compliance and mitigates safety risk in Class I Div 2 and Zone 21 environments; Application: Chemical processing and mining operations with stringent safety mandates. Feature: Broad voltage range and dimmable driver; Business Impact: Simplifies power sourcing across facilities and enables precise lighting control for workflow optimization; Application: Large industrial floors and automation cells with mixed power infrastructure. Feature: Durable housing and lens construction; Business Impact: Extends service life in dust, moisture, and impact-prone areas while reducing maintenance cycles; Application: Outdoor and harsh indoor spaces in pulp & paper, refineries, and petrochemical plants. Feature: Mounting versatility and optical distribution; Business Impact: Quick installation with Type V distribution and cone pendant mounting lowers commissioning time; Application: Pendant-mounted luminaires above process lines or equipment bays.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-7-3B-UNV1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-7-3B-UNV1? Enquire Now

FAQs

The VMVL-7-3B-UNV1 supports cone pendant mounting with a 1 inch trade size and Type V optical distribution. It uses a glass lens and a die-cast aluminum housing, designed for easy retrofits in hazardous environments such as Class I Division 2 and Zone 21. This configuration simplifies mounting in overhead spaces and process areas while maintaining IP66 protection.
This luminaire delivers 7000 lumens at a high efficiency of 127 lm/W, with a cool white color temperature. It operates at 61W and offers a dimmable driver, enabling precise control and energy savings. The high-lumen output supports fewer fixtures and better coverage in large hazardous-area installations.
Yes. VMVL-7-3B-UNV1 is rated for Hazardous/Classified Locations with IECEx/ATEX Zone 21 compliance and NEC/CEC conformance. It also features IP66 and NEMA 4X protection, making it well-suited for chemical processing facilities, refineries, and other demanding industrial sites.
The unit carries NEC/CEC IECEx/ATEX certifications, Zone 21 hazardous rating, and IP66 with NEMA 4X protection. It is designed for Hazardous/Classified Locations, meeting stringent safety and performance standards for industrial luminaires used in demanding environments.
The LED construction and rugged housing reduce maintenance cycles in harsh locations, while the dimmable driver and broad voltage range support energy savings and simpler control strategies. Combined with high lumen output and long life, this yields lower replacement costs and improved uptime for facilities with heavy process-driven lighting needs.
