Eaton XJGD34 Expansion/Deflection Coupling - NEC/CEC
Part Number: XJGD34
Quick Summary
Eaton XJGD34 Expansion/Deflection Coupling provides expansion relief for conduit runs in industrial installations. This solution addresses the costly challenges of thermal movement, which can lead to leaks, misalignment, and unplanned maintenance. It complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with UL Canada certification documentation available for cross-border use. By delivering a robust steel conduit joint, it reduces downtime and maintenance expenditures while simplifying installation in tight spaces. For buyers evaluating conduit expansion joints or steel conduit fittings, the XJGD34 offers proven reliability and site-ready performance.
Product Information
Extended Description

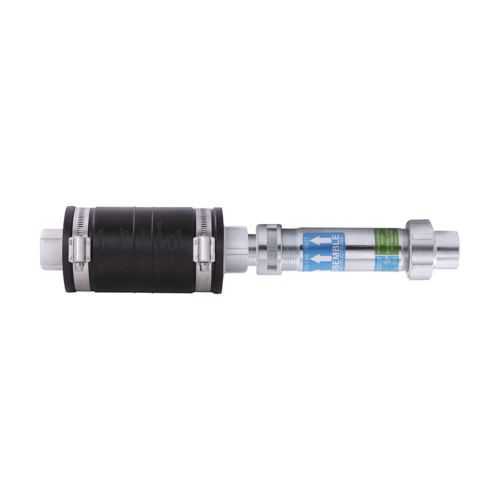

XJGD34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series XJGD expansion/deflection coupling, Steel, 1"
Product Name
Eaton Crouse-Hinds series XJGD expansion/deflection coupling
Catalog Number
XJGD34
UPC
782274130767
Product Length/Depth
16.26 in
Product Height
3.63 in
Product Width
3.63 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Expansion/deflection
Trade size
1"
Material
Steel
Crouse-Hinds series Conduit Expansion/Deflection Couplings brochure
Crouse-Hinds series XJGD Combination Expansion/Deflection Couplings catalog page
XJGD Combination Expansion/Deflection Couplings Canadian certification
XJGD Combination Expansion/Deflection Couplings Canadian certification
IF 343 - Type XJ Expansion Joints
IF 343 - Type XJ Expansion Joints
Expansion and Deflection Couplings
Expansion and Deflection Couplings
Feature: 1" Trade size expansion/deflection coupling in steel; Business Impact: Provides a strong, durable connection that accommodates axial and lateral movement, reducing stress on conduit runs; Application: Ideal for 1" conduit installations in manufacturing, process plants, and distribution systems. Feature: Steel construction with 16.26 in length and compact 3.63 in width/height; Business Impact: Delivers predictable geometry and easier handling in constrained spaces, speeding up installation and maintenance; Application: Suitable for retrofit projects and new builds in cramped electrical rooms. Feature: Compliance with NEC/CEC and Ordinary/Non-Hazardous Location rating; Business Impact: Ensures regulatory alignment and safer operation, minimizing compliance risk; Application: Widely used in industrial facilities with strict safety requirements. Feature: 9 lb weight and practical mounting footprint; Business Impact: Reduces worker fatigue and simplifies field handling while maintaining robust performance; Application: Fits standard mounting schemes and supports controlled installation. Feature: Installation resources including IF 343 sheets and expansion/deflection spec guides; Business Impact: Lowers install risk and accelerates commissioning; Application: Recommended for contractors seeking fast, code-compliant setup. Feature: Catalog references and product literature; Business Impact: Improves procurement accuracy and reduces mispicks; Application: Streamlines supply chain for Eaton Crouse-Hinds conduit fittings.
Get a Quick Quote for a Eaton Crouse-Hinds XJGD34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds XJGD34?
Enquire Now
FAQs
The XJGD34 is a 1" trade-size steel coupling designed for standard conduit runs. Ensure compatibility with existing conduits, maintain proper alignment during assembly, and reference the IF 343 installation sheets for instructions. The unit’s 16.26 in length and 3.63 in width/height support mounting in tighter electrical rooms while preserving movement tolerance.
The XJGD34 provides expansion/deflection flexibility to absorb axial and lateral movement caused by temperature changes. This reduces stress concentrations on joints and conduit fittings, lowering the risk of leaks or cracks and extending service life in dynamic industrial environments.
Yes. The unit is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it appropriate for a wide range of non-hazardous industrial settings. Always verify local codes and project requirements, and refer to the literature for cross-border certification details if needed.
Certification literature includes NEC/CEC compliance and UL Canada certification references. Canadian certification pages and installation guides are available in the download section, providing evidence of cross-border compliance and safe application in relevant facilities.
By mitigating thermal stress and avoiding frequent joint failures, the XJGD34 reduces maintenance downtime and extends conduit system life. The included installation guides streamline commissioning, lowering labor costs and accelerating project timelines, which translates to tangible ROI over the system’s lifetime.
