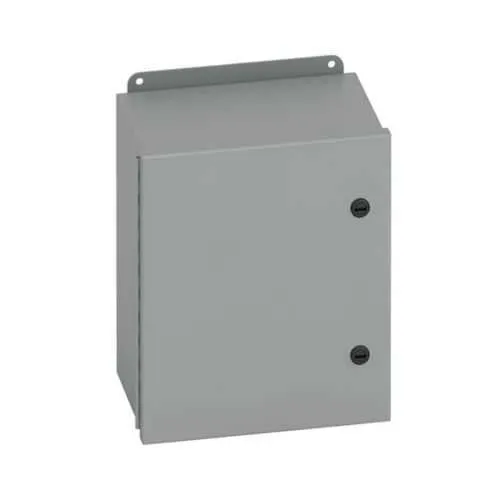

Eaton 14128-4QT JIC panel enclosure - NEMA 4 rating
Part Number: 14128-4QT
Quick Summary
The Eaton B-Line series JIC panel enclosure protects electrical controls in wall-mounted panels for industrial facilities. Facility engineers often struggle with moisture ingress, hinged cover misalignment, and mounting compatibility in tight spaces. This enclosure meets UL 50, CSA C22.2, and NEMA 4 standards, featuring a continuous piano hinge and 1/4-turn latches for dependable seals. Designed for durability in harsh environments, it complements other Eaton B-Line enclosures and simplifies integration into existing electrical infrastructure. With a 14 in height, 12 in width, and 8 in depth, the 4QT enclosure fits compact control panels while offering a rugged carbon steel body with external mounting feet. Its 16 gauge wall and seamless gasket provide reliable protection against dust and water ingress, reducing maintenance and downtime.
Product Information
Extended Description
14128-4QT Eaton: Eaton B-Line series JIC panel enclosure, 14" height, 8" length, 12" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
14128-4QT
UPC
782051881882
Product Length/Depth
8 in
Product Height
14 in
Product Width
12 in
Product Weight
14.5 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
Feature: 16 gauge carbon steel wall with a seamless poured-in-place gasket and a hinged cover. Business Impact: Provides robust moisture and dust sealing, extending service life and reducing corrosion-related failures. Application: Ideal for dusty or damp factory floors where reliability is critical. Feature: NEMA 4 rating with UL 50 and CSA C22.2 certifications. Business Impact: Enables compliant installations and lowers regulatory risk across facilities. Application: Suitable for indoor and semi-enclosed spaces requiring corrosion and moisture protection. Feature: External mounting feet for wall mounting. Business Impact: Simplifies retrofits and accelerates installation in tight or retrofit spaces. Application: Quick deployment on existing walls with minimal modification. Feature: Continuous piano hinge and 1/4-turn latches. Business Impact: Improves field access, seals reliably, and reduces maintenance downtime. Application: Fast service and secure operation for control panels. Feature: Compact 14 in H x 12 in W x 8 in D 4QT form factor with ANSI 61 gray painted finish. Business Impact: Maximizes usable control space while delivering durable protection and a uniform appearance. Application: Small- to medium-sized control panels needing a lightweight, rugged enclosure that matches other B-Line components.
Get a Quick Quote for a Eaton 14128-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 14128-4QT?
Enquire Now
FAQs
To install the Eaton 14128-4QT JIC panel enclosure, mount the unit on a suitable wall using the external mounting feet provided. Verify the wall is solid and level, fasten with appropriate screws, then seal the seam with the poured-in gasket. Attach the hinged cover, verify 1/4-turn latches engage fully, and ensure clear door operation.
Key specifications for the Eaton 14128-4QT JIC panel enclosure include 14 in height, 12 in width, and 8 in depth, with a 16-gauge carbon steel wall and ANSI 61 gray paint finish. It weighs about 14.5 lb and uses a hinged external-mount cover with a continuous piano hinge and 1/4-turn latches. It is rated UL 50, CSA C22.2, and NEMA 4 and is designed for wall mounting.
Yes, the 14128-4QT is designed for harsh environments, offering NEMA 4 protection against wind-blown dust and water. It is ideal for indoor or semi-enclosed spaces but should not be exposed to direct weather without an enclosure rated for outdoor use. The unit carries UL 50 and CSA C22.2 certifications, supporting regulatory compliance in industrial settings.
The 14128-4QT aligns with Eaton B-Line modular enclosures through its standard 4QT size, external mounting feet, and panel-mount capability. Its 16-gauge carbon steel construction and hinged continuous piano hinge match common B-Line accessories, enabling straightforward expansion and scalable control panel builds while maintaining a consistent industrial aesthetic.
Using the 14128-4QT improves uptime by protecting sensitive electronics from dust, moisture, and impact, reducing nuisance maintenance. The robust gasket, 1/4-turn latches, and durable carbon steel body lower resealing costs and service interruptions. UL and CSA certifications provide compliance confidence, helping avoid regulatory delays and warranty issues while enabling longer service intervals and predictable operation.
