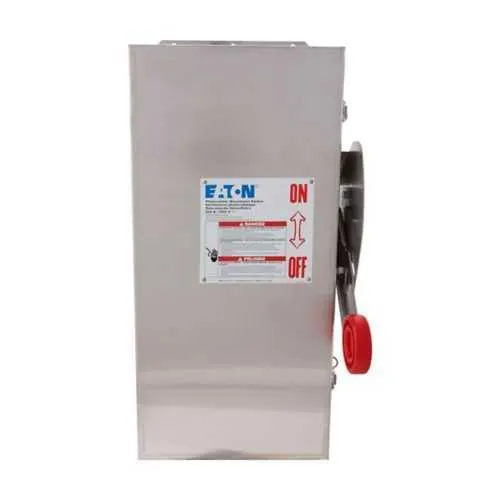

Eaton DCG1101UWM DC Disconnect - NEMA 4X 1000 VDC
Part Number: DCG1101UWM
Quick Summary
Eaton DCG1101UWM DC disconnect provides safe isolation for solar PV DC circuits. In outdoor installations and harsh environments, reliability hinges on robust enclosure and corrosion resistance, which this unit delivers. It is UL 98B and NEC 690 per UL 1741 certified and features a NEMA 4X, 304 stainless steel enclosure to withstand weather and salt exposure. For procurement and engineering teams, the combination of rugged construction, clear labeling, and a single 30A circuit reduces installation complexity while meeting code requirements for utility-scale and commercial solar projects. The grounded, isolated-return design supports safer maintenance and reduces arc energy during switching, delivering a practical balance of safety and performance for long-term operation.
Product Information
Extended Description
DCG1101UWM Eaton: Eaton heavy duty DC disconnect,30A,NEMA 4X,Grade 304 stainless steel,Non-fusible,Grounded,#14-#2 AWG lug capacity, #14-#2 AWG solid return,1,Isolated return,DC photovoltaic systems,1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG1101UWM
UPC
786685557724
Product Length/Depth
10.22 in
Product Height
14.14 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
30A
Number of circuits
1
Ground
Grounded
Maximum voltage
1000 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-#2 AWG solid return
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty DC photovoltaic systems
Protection
Non-fusible
Enclosure and material durability → Weatherproof, corrosion-resistant construction gives dependable outdoor performance and lower maintenance costs in harsh environments, enabling reliable solar PV system operation. Application-fit and lifecycle value → 304 stainless steel with NEMA 4X enclosure ensures protection against water, dust, and elements, reducing downtime and replacement costs for outdoor DC isolation in solar installations. Non-fusible disconnect with isolated return → Safer switching with clear isolation paths minimizes arc energy and simplifies compliance with safety standards during maintenance, while ensuring consistent operation in 1000 VDC PV circuits. Electrical compatibility → 30A rating, single circuit, and grounded design align with common PV wiring practices (#14-#2 AWG) for straightforward integration into existing arrays and combiner boxes. Installation efficiency → 10.22 in depth, 14.14 in height, and 8.76 in width provide a compact footprint with a manageable 21 lb weight, easing handling and site mounting. Certifications and standards → UL 98B and NEC 690 per UL 1741 support regulatory compliance for solar installations, reinforcing procurement confidence and long-term liability mitigation. Practical usage guidance → The product notes indicate where to reference dimension tables for all circuit configurations, helping buyers select compatible ampere ratings and configurations.
Get a Quick Quote for a Eaton DCG1101UWM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG1101UWM?
Enquire Now
FAQs
The DCG1101UWM is designed for outdoor solar PV installations with a single 30A circuit and grounded, isolated return. It supports conductor sizes #14-#2 AWG for both lug connections and solid returns, aiding compatibility with common PV harnesses and combiner boxes. Ensure the system voltage does not exceed 1000 VDC and reference the product dimension tables for configuration options. Proper clearance and weather exposure should be maintained to preserve the NEMA 4X enclosure integrity over time.
Key specs include a 30A amperage rating, 1 circuit, grounded, and non-fusible protection, with a 1000 VDC system voltage and voltage rating. The enclosure is NEMA 4X made from 304 stainless steel, suitable for outdoor use. It is designed for DC photovoltaic applications with isolated return, aligning with UL 98B and NEC 690 per UL 1741, ensuring safety during switching and maintenance.
Yes. The NEMA 4X enclosure and 304 stainless steel construction provide robust outdoor protection against weather and corrosion, making it suitable for industrial and commercial solar installations. Its DC ratings and isolated return design support safe operation in distributed PV systems, while the 1000 VDC capability matches many utility-scale and rooftop array configurations.
The unit is UL 98B certified and complies with NEC 690 per UL 1741, ensuring PV system safety and electrical protection standards. The enclosure’s NEMA 4X rating and 304 stainless steel construction further support compliance with outdoor installation requirements and weather-resistance expectations in solar projects.
The product is covered by Eaton’s warranty policy, which provides one year from installation or eighteen months from shipment, whichever comes first. The non-fusible, isolated design plus a corrosion-resistant enclosure minimizes maintenance needs, reducing downtime and lifecycle costs for solar projects over the equipment’s service life.
