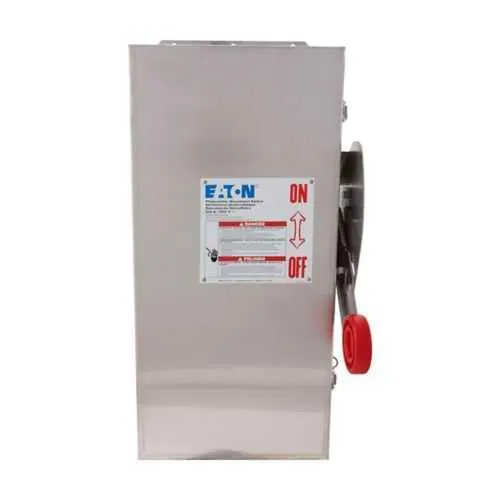

DCG1102UWM DC Disconnect - Grounded PV, 1000 VDC
Part Number: DCG1102UWM
Quick Summary
DCG1102UWM heavy-duty DC disconnect provides safe isolation for grounded PV systems. Engineers face challenges delivering reliable protection in outdoor solar installations while staying compliant with evolving codes. This unit’s UL 98B certification and NEC 690 guidance (per UL 1741) help you align with safety requirements, and the NEMA 4X enclosure delivers corrosion resistance in exposed environments. The 304 stainless steel enclosure, isolated return, and non-fusible design reduce fault pathways and simplify maintenance. With a 60 A rating, one circuit, and solid lug capacity for #14-#2 AWG conductors, it supports scalable PV deployment while keeping wiring neat and traceable. This product enables robust, code-compliant solar protection, accelerating project commissioning and reducing lifecycle risk.
Product Information
Extended Description
DCG1102UWM Eaton: Eaton heavy duty DC disconnect,For Grounded PV Systems,60A,NEMA 4X,Grade 304 stainless steel,Non-fusible,Grounded,#14-#2 AWG lug capacity, #14-#2 AWG solid return,1,Isolated return,DC photovoltaic systems,1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG1102UWM
UPC
786685557731
Product Length/Depth
10.22 in
Product Height
14.14 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Special features
For Grounded PV Systems
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
1
Ground
Grounded
Maximum voltage
1000 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-#2 AWG solid return
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty DC photovoltaic systems
Protection
Non-fusible
60 A, 1 circuit, non-fusible DC disconnect provides straightforward, scalable isolation for a single-string PV setup. The business impact is clear: it minimizes fault propagation, reduces arc-flash exposure, and simplifies preventive maintenance. In grounded PV applications, this configuration supports predictable switching and safer de-energization during servicing. 304 stainless steel construction paired with a NEMA 4X enclosure delivers weatherproof protection and corrosion resistance for outdoor rooftop and ground-mounted installations. The durable enclosure reduces downtime from environmental exposure and extends service intervals, directly lowering lifecycle costs. Isolated return with grounded configuration provides a clearly defined fault path, enhancing system safety during switching in energized PV circuits. This topology aligns with best practices for grounded PV systems and simplifies inspection and testing in regulated facilities. Main lug capacity supports #14-#2 AWG conductors, with solid return options that simplify field wiring and maintain service integrity. The positive lug specification helps installers quickly size conductors, reducing install errors and rework in busy solar sites. Certified to UL 98B and NEC 690 per UL 1741, the unit provides regulatory alignment for PV installations, including utility interconnection readiness. A NEMA 4X enclosure adds ruggedness for outdoor use. These certifications support faster approvals and safer, compliant deployments. The warranty covers one year from installation or eighteen months from shipment, ensuring support through project ramp-up and early operation.
Get a Quick Quote for a Eaton DCG1102UWM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG1102UWM?
Enquire Now
FAQs
DCG1102UWM is designed for grounded PV systems with a single circuit and a 60 A rating. It accepts #14-#2 AWG conductors on the main lug, uses an isolated return, and features a 304 stainless steel, NEMA 4X enclosure. It pairs with standard PV array wiring practices and UL 98B/NEC 690 requirements to support safe, code-compliant integration with common inverters and combiner boxes.
This disconnect carries UL 98B certification and NEC 690 guidance per UL 1741, reinforcing safety and code compliance for PV installations. The enclosure is NEMA 4X rated and constructed from 304 stainless steel for weather resistance. Together, these certifications support utility interconnection readiness and robust outdoor operation.
Yes, DCG1102UWM is suited for outdoor, exposed environments and supports grounded PV systems in both rooftop and ground-mounted configurations. Its NEMA 4X enclosure and corrosion-resistant stainless steel construction help it withstand harsh weather, while the isolated return and non-fusible design simplify safe operation during routine servicing.
The product is covered by Eaton’s warranty policy—one year from the date of installation or eighteen months from shipment, whichever comes first. Routine maintenance focuses on ensuring secure lug connections and intact enclosure seals, while the non-fusible design reduces routine maintenance complexity.
By delivering robust, code-compliant isolation for grounded PV systems, the DCG1102UWM reduces arc-flash exposure and simplifies commissioning. Its durable 304 stainless steel, NEMA 4X enclosure, and verified UL 98B/NEC 690 compliance help shorten approvals, lower lifecycle risk, and streamline field wiring with standard conductor sizes, contributing to faster, safer deployments and favorable total-cost-of-ownership.
