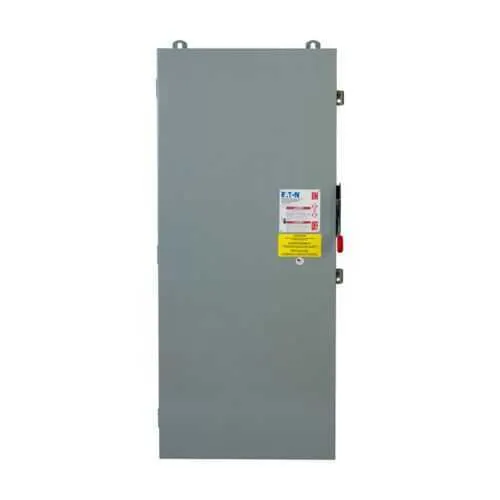

Eaton DCG1105FPM DC disconnect - UL Listed, 1000 VDC
Part Number: DCG1105FPM
Quick Summary
DCG1105FPM heavy duty DC disconnect is designed to safely isolate DC circuits in solar photovoltaic systems. In outdoor PV installations, weather sealing and corrosion can threaten uptime; this unit’s rugged NEMA 4 enclosure and painted galvanized steel body resist harsh environments while simplifying field service. It carries UL Listed certification for compliance and a 1000 VDC system rating, making it suitable for higher voltage solar arrays. The design includes fusible protection, a grounded operation, and an isolated return, enabling safer, code-compliant switching of DC power. With a 400 A rating and single-circuit configuration, it provides scalable protection for growing PV projects while reducing total ownership costs.
Product Information
Extended Description
DCG1105FPM Eaton: Eaton heavy duty DC disconnect,400A,NEMA 4,Painted steel,Fusible,Grounded,1,Isolated return,DC photovoltaic systems,1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG1105FPM
UPC
786685866062
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
60 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
1
Ground
Grounded
Maximum voltage
1000 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Isolation
Isolated return
Switch type
Heavy duty DC photovoltaic systems
Protection
Fusible
Feature → Business Impact → Application: Heavy-duty construction with a NEMA 4 enclosure provides weather resistance and corrosion protection, reducing maintenance cycles and downtime in outdoor installations. This translates to higher system availability for commercial and utility-scale solar projects and easier compliance during inspections. Feature → Business Impact → Application: Fusible protection paired with grounded operation and isolated return lowers arc-flash risk and minimizes fault propagation, delivering safer maintenance and faster fault isolation across rooftop and ground-mounted PV arrays. Feature → Business Impact → Application: High voltage capability of 1000 VDC supports longer DC runs and higher voltage string configurations, reducing the need for multiple disconnects in large solar farms. Feature → Business Impact → Application: 400 A, 1 circuit rating simplifies system design and cabinet footprint, enabling cost-effective integration into centralized DC distribution points for industrial power systems. Feature → Business Impact → Application: Painted galvanized steel and straightforward installation improve durability and serviceability, helping installers meet project timelines and reduce field labor costs while maintaining long-term reliability in harsh environments.
Get a Quick Quote for a Eaton DCG1105FPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG1105FPM?
Enquire Now
FAQs
For outdoor solar arrays, install the DCG1105FPM in a protected location or weatherproof enclosure as required by your project. Ensure solid grounding and isolated return are maintained, verify that the enclosure remains sealed to prevent moisture ingress, and route conductors to minimize exposure to moisture, corrosion, and mechanical stress. Regular inspection should focus on terminal connections and enclosure integrity.
The DCG1105FPM is rated for 400 A and 1000 VDC with a single circuit. It provides fusible protection and grounded operation with an isolated return, delivering safe DC fault isolation and protection for PV strings and DC distribution points in solar installations.
Yes. With a 400 A rating and 1000 VDC capability, the DCG1105FPM is adaptable for either string-level disconnections in mid-size to large PV installations or central DC distribution points. Its NEMA 4 enclosure and fusible protection help meet outdoor installation requirements and simplify system layout and safety compliance.
The DCG1105FPM carries UL Listed certification and a NEMA 4 rating. UL Listing confirms compliance with safety standards, while NEMA 4 provides weatherproof protection for outdoor installations. Together, they help meet regulatory requirements and industry best practices for solar and other DC PV applications.
Maintenance is focused on periodic inspection of fusible elements, terminal connections, and enclosure integrity, with attention to corrosion resistance and seal performance. The 25-000 Eaton warranty supports uptime, and reliable protection reduces unplanned downtime in PV systems, contributing to a lower total cost of ownership over the asset’s lifecycle.
