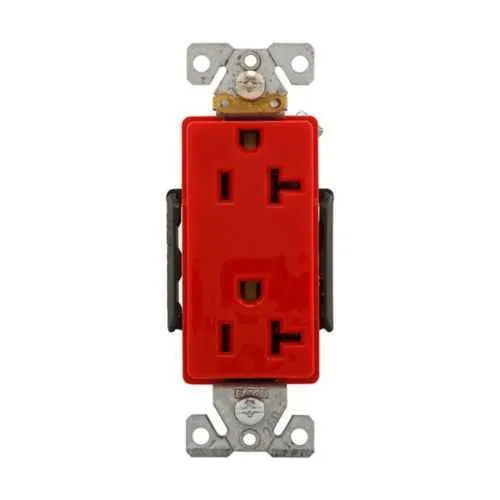

Eaton EZ6362SCRD EZLink decorator receptacle - cULus Listed
Part Number: EZ6362SCRD
Quick Summary
The Eaton EZLink decorator receptacle EZ6362SCRD provides reliable 20A, 125V power for modular panel installations. When upgrading control panels, engineers often struggle with space constraints and complex wiring compatibility. This device is cULus Listed and NOM certified, with Federal Specification W-C-596G, supporting safe, compliance-driven deployments. The compact red unit fits tight spaces and speeds wiring—streamlining maintenance, reducing downtime, and ensuring rapid circuit identification across industrial environments. Featuring NEMA 5-20R, three-wire configuration and split control, it aligns with common control-system architectures and fast-tracks panel modernization.
Product Information
Extended Description
EZ6362SCRD Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, split control, NEMA 5-20R, three-wire, red
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZ6362SCRD
UPC
032664009792
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Feature: 20A, 125Vac capacity with NEMA 5-20R, 3-wire configuration. Benefit: Supports typical automation loads with reliable grounding and correct polarity, reducing nuisance trips and mis-wiring. Application: Ideal for machine enclosures and control panels in manufacturing lines where high-current outlets must fit within restricted spaces. Feature: cULus Listed, NOM certification, and Federal Specification W-C-596G. Benefit: Elevates compliance confidence, simplifies regulatory audits, and lowers risk of non-conforming installations. Application: Suitable for industrial and commercial installations requiring proven standards fulfillment. Feature: Compact footprint—1.91 in deep, 4.4 in tall, 1.75 in wide—with 0.2 lb weight. Benefit: Space-efficient wiring and easier routing in crowded panels, promoting faster installations and reduced cabinet modification. Application: Panel modernization projects where space and weight constraints matter. Feature: Red colored housing and EZLink modular compatibility. Benefit: Quick circuit identification and streamlined wiring harness integration across modular devices, cutting commissioning time. Application: System upgrades and new builds using modular decorator receptacles. Feature: Split control capability. Benefit: Enables flexible control strategies and safer sequencing in multi-circuit panels. Application: Complex automation installations requiring controlled, independent outlets within shared enclosures.
Get a Quick Quote for a Eaton EZ6362SCRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ6362SCRD?
Enquire Now
FAQs
EZ6362SCRD is designed for use with the EZLink modular devices family and accepts standard NEMA 5-20R (three-wire) configurations. It supports typical 20A, 125V circuit requirements in control panels and machine enclosures, enabling seamless integration with modular wiring strategies and existing panel hardware without extensive rewiring.
The receptacle provides 20A current rating at 125V, 60 Hz operation, and a three-wire NEMA 5-20R configuration to ensure proper grounding and polarity. These specs align with common automation loads in industrial machinery, reducing voltage drop and improving reliability in panel-mounted outlets.
EZ6362SCRD carries cULus Listed and NOM certifications and conforms to Federal Specification W-C-596G, which supports many commercial and industrial environments. However, the product data does not specify an IP rating or splash resistance; for harsh environments, install within protected enclosures or cabinets as part of a broader enclosure solution.
The device is cULus Listed and NOM certified, with Federal Specification W-C-596G referenced. These certifications help satisfy wiring and installation codes in North American markets, streamline inspections, and support safer panel upgrades by validating construction quality and electrical safety for commercial and industrial use.
Modular EZLink compatibility and the red visibility aid quick commissioning and faster fault isolation, reducing downtime during maintenance. The 20A 125V rating handles common automation loads reliably, while the compact footprint saves panel space and minimizes wiring reroutes, contributing to lower labor costs and shorter project timelines.
