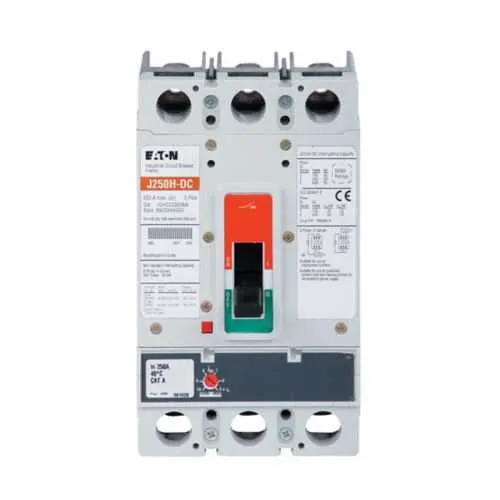

Eaton JGHDC3070FAW PVGuard Solar MCCB - UL489
Part Number: JGHDC3070FAW
Quick Summary
The Eaton PVGard JGHDC3070FAW is a PV-ready molded case circuit breaker for solar PV systems protection. Engineers often struggle with matching interruption ratings and mounting options in compact or remote installations. UL 489 certification and 50/60 Hz electrical compatibility help ensure regulatory compliance, while 3-pole design delivers reliable three-phase protection. Rated at 70 A with 600 Vac / 250 Vdc, it supports robust PV array protection across diverse climate zones. By using a fixed thermal, adjustable magnetic trip and a JG frame, installation time is reduced and wiring errors are minimized. This product also aligns with Eaton service and warranty policies, delivering predictable ownership costs for engineering teams.
Product Information
Extended Description
JGHDC3070FAW Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, JG-frame, JG, Fixed thermal, adjustable magnetic trip, Three-pole, 70A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 25 kAIC at 600 Vac, No terminals, 50/60 Hz
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
JGHDC3070FAW
UPC
786685494586
Product Length/Depth
3.44 in
Product Height
7 in
Product Width
4.13 in
Product Weight
6.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489
Amperage Rating
70A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Series
Series G
Terminals
Without terminals
Frame
JG
Frequency rating
50/60 Hz
Interrupt rating
25 kAIC at 600 Vac 65 kAIC at 480 Vac 100 kAIC at 240 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - JGHDC3070FAW
Eaton Specification Sheet - JGHDC3070FAW
Feature: The JGHDC3070FAW uses a 70 A amperage rating in a three-pole complete breaker with fixed thermal and adjustable magnetic trip (T185). Business impact: This combination delivers precise protection for PV feed circuits, enabling selective coordination with inverters and string combiners, reducing the risk of nuisance trips and equipment damage. Application: Suitable for PV array feeders in commercial rooftops and utility-scale solar installations where consistent trip characteristics matter. Feature: It supports 600 Vac and 250 Vdc voltage ratings, with interrupt ratings up to 25 kAIC at 600 Vac, 65 kAIC at 480 Vac, and 100 kAIC at 240 Vac. Business impact: The broad electrical envelope accommodates both AC side protection and DC PV protection without needing separate devices, simplifying procurement and stocking. Application: Ideal for PV inverters, combiner boxes, and switchgear that operate across mixed AC/DC portfolios. Feature: The unit is specified as without terminals, framed as a JG complete breaker. Business impact: Installation is streamlined, with less wiring complexity and fewer terminal-related failure points, improving reliability and reducing field labor. Application: Fits standard JG frame enclosures in new builds and retrofit projects where fast, low-risk installation is prioritized. Feature: UL 489 certification and Series G classification, combined with the 50/60 Hz frequency rating. Business impact: Regulatory compliance and predictable performance across climates, simplifying panel certification. Application: Control panels, distribution boards, and PV system protection modules require such certifications for code compliance. Feature: The interrupt ratings of 25 kAIC at 600 Vac, 65 kAIC at 480 Vac, and 100 kAIC at 240 Vac provide substantial fault handling headroom. Business impact: Enables safe operation in grids with high short-circuit currents and supports reliable coordination with upstream protection. Application: Essential for utility-scale PV plants and high-demand commercial PV installations.
Get a Quick Quote for a Eaton JGHDC3070FAW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGHDC3070FAW?
Enquire Now
FAQs
The JGHDC3070FAW is a three-pole molded case breaker designed for PV protection and can be installed in standard JG frame enclosures. Its terminals are not included, simplifying mounting in integrated switchgear or PV combiner boxes. Ensure correct coordination with upstream devices and inverter protection, and verify panel space and cooling for continuous duty in outdoor photovoltaic installations.
Key specs include a 70 A rating, 600 Vac / 250 Vdc voltage rating, 50/60 Hz operation, and a T185 trip type. It is a three-pole JG frame device in Series G with no terminals. Interrupt ratings are 25 kAIC at 600 Vac, 65 kAIC at 480 Vac, and 100 kAIC at 240 Vac, supporting diverse PV and grid interaction scenarios.
Yes. The device is designed for PV protection with a 250 Vdc rating suitable for PV DC circuits, alongside 600 Vac AC protection. Its PVGard designation indicates compatibility with PV systems, enabling protection for arrays, inverters, and DC distribution while maintaining coordinated trip characteristics for safe DC operation.
The JGHDC3070FAW carries UL 489 certification, ensuring compliance with standard circuit protection requirements in North American electrical systems. It supports 50/60 Hz operation and high interrupt ratings, making it suitable for PV installations in diverse regulatory environments and aiding panel certification and safety compliance.
With a 70 A rating, robust interrupt performance, and a straightforward no-terminal installation, field labor time is reduced and reliability improves. The Eaton warranty policy provides one year from installation or 18 months from shipment, whichever occurs first, helping to stabilize maintenance budgets and reduce lifecycle costs in PV projects.
