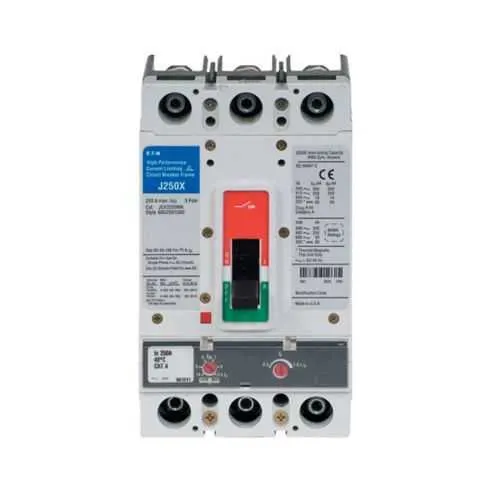

Eaton JGX3200AAG Complete Molded MCCB - UL Listed
Part Number: JGX3200AAG
Quick Summary
The Eaton Series G molded case circuit breaker protects industrial panels by interrupting fault currents in motors and machinery. Many engineers struggle to balance reliability, adjustable trips, and compact footprint in space-constrained panels. Certified UL Listed, CSA Certified, and IEC Rated, these breakers meet global safety and reliability standards. Designed for 200 A at 600 Vac with adjustable thermal and magnetic trip, the Series G JG-frame offers line-and-load terminals and a complete breaker construction that simplifies installation across panelboards. It also supports metric mounting hardware, provides 50/60 Hz operation, and helps streamline compliance and maintenance—reducing downtime and total cost of ownership in industrial automation environments.
Product Information
Extended Description
JGX3200AAG Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Adjustable thermal, adjustable magnetic trip, Three-pole, 200A, 600 Vac, 200 kAIC at 240 Vac, 200 kAIC at 480 Vac, 50 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGX3200AAG
UPC
786685126890
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed CSA Certified IEC Rated
Type
Complete breaker
Amperage Rating
200 A
Voltage rating
600 Vac
Trip Type
Adjustable thermal, adjustable magnetic
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
200 kAIC at 240 Vac 200 kAIC at 480 Vac 50 kAIC at 600 Vac
Number of poles
Three-pole
