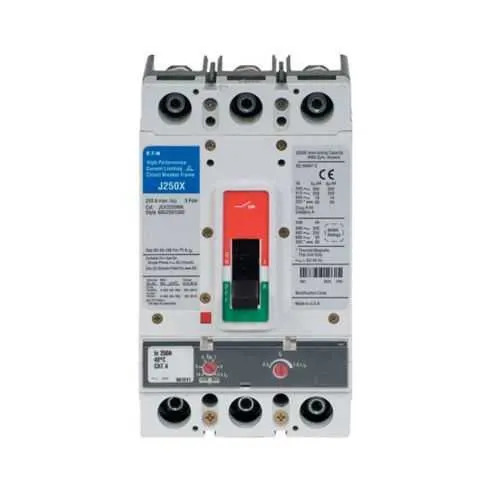

Eaton JGX3250AAG Complete MCCB - UL Listed
Part Number: JGX3250AAG
Quick Summary
Eaton JGX3250AAG is a complete molded case circuit breaker for panel protection in industrial automation. End users often struggle with correct trip coordination, nuisance trips, and downtime when selecting breakers. This unit is IEC rated, UL Listed, and CSA certified, with CE marking for global compliance. With its 3-pole Series G design and adjustable thermal and magnetic trips, it supports reliable protection in control panels while aligning with long-term maintenance and cost savings.
Product Information
Extended Description
JGX3250AAG Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Adjustable thermal, adjustable magnetic trip, Three-pole, 250A, 600 Vac, 200 kAIC at 240 Vac, 200 kAIC at 480 Vac, 50 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGX3250AAG
UPC
786685126906
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Type
Complete breaker
Amperage Rating
250 A
Voltage rating
600 Vac
Trip Type
Adjustable thermal, adjustable magnetic
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
200 kAIC at 480 Vac 50 kAIC at 600 Vac 200 kAIC at 240 Vac
Number of poles
Three-pole
