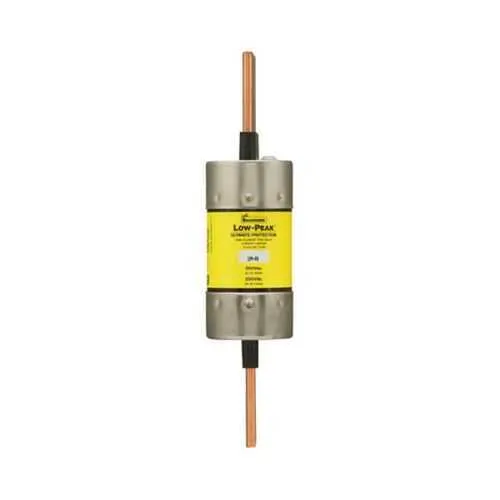

Eaton LPN-RK-200SP-TP Fuse - Class RK1 Time-Delay, 200 A

Time-delay, current-limiting design delivers staged protection for motor circuits. This approach minimizes nuisance trips during normal inrush while ensuring rapid interruption for sustained faults, improving equipment uptime. It’s particularly effective in conveyor drives, pumps, and fan systems where controlled startup reduces mechanical wear and energy spikes. With a 200 A amperage rating and voltage ratings of 250 Vac and 250 Vdc, the LPN-RK-200SP-TP supports medium-to-high current control circuits without oversized protective devices. Its high interrupt ratings—100 kAIC at 250 Vdc and 300 kAIC at 250 Vac—guarantee reliable fault clearance in demanding installations, protecting wiring, controllers, and drives. Class RK1 designation ensures compatibility with Bussmann RK1 fuse blocks, while blade-end x blade-end terminals support quick, secure mounting. The non-indicating design reduces maintenance overhead—no visual fuse window to monitor—streamlining installation in cramped panels and helping technicians focus on critical wiring. Tin-plated housing offers enhanced corrosion resistance in challenging environments, extending service life in humid or dusty plants. Combined with standard packaging and compact footprint, it enables easy stocking, faster replacements, and scalable protection across multiple machines. RoHS compliance aligns with regulatory expectations, aiding procurement and reducing compliance risk. The fuse’s compact 7.13 in length and 1.61 in width fit common cabinet spaces, and its straightforward blade-end connection simplifies retrofits and new builds alike.
