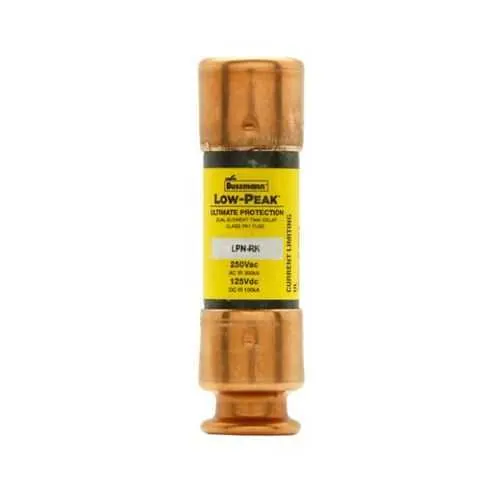

Eaton LPN-RK-20SP Fuse - Class RK1 Time-Delay, 300 kAIC
Part Number: LPN-RK-20SP
Quick Summary
Eaton LPN-RK-20SP fuse provides time-delay, dual-element protection for motor circuits and low-voltage power systems. It helps prevent nuisance trips during startup while still delivering reliable overcurrent protection for demanding industrial loads. CE-marked and designed around Class RK1 standards, this fuse combines safety compliance with proven reliability in rugged environments. The dual-element, current-limiting design supports economical panel protection and better coordination with upstream devices. By delivering predictable response in high inrush scenarios and reducing unplanned downtime, it supports improved machine uptime, safer operation, and lower total cost of ownership in electrical protection strategies. Use it in low-voltage branch circuits and motor-control panels to align performance with design intent and maintenance cycles.
Product Information
Extended Description
LPN-RK-20SP Eaton: Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 20 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc
Product Name
Eaton Bussmann series LPN-RK fuse
Catalog Number
LPN-RK-20SP
UPC
051712538343
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.5 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
20 A
Interrupt rating
300 kAIC at 250 Vac 100 kAIC at 125 Vdc
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating, High in-rush current motor protection
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 250 V LPN Class RK1 time-delay fuses,1/10-60 A data sheet no. 1003
Feature → Business Impact → Application: Time-delay, dual-element design provides selective coordination and smoother motor starts, reducing nuisance trips and extending motor life in drive and pump systems. This translates to lower maintenance costs and higher productivity for automated machinery in manufacturing lines. Feature → Business Impact → Application: 20 A rating with 300 kAIC at 250 Vac and 100 kAIC at 125 Vdc delivers high fault tolerance in demanding installations, enabling safe operation of feeders and control circuits in distribution panels and industrial enclosures. This supports compliance with safety standards while keeping downtime to a minimum during fault events. Feature → Business Impact → Application: Current-limiting performance protects downstream components from short circuits, enabling faster restoration after a fault and allowing upstream protection schemes to operate more effectively in dynamic loads such as fans, conveyors, and presses. Feature → Business Impact → Application: Non-indicating design reduces potential false indicators in harsh environments and simplifies replacement workflows in crowded panels, while ferrule-to-ferrule terminations ensure robust, vibration-tolerant connections in compact layouts. Feature → Business Impact → Application: 2-element construction provides built-in reliability against gradual aging and thermal cycling, improving long-term protection for motor-control centers and machine control panels in manufacturing facilities. Feature → Business Impact → Application: CE compliance ensures adherence to European safety requirements, supporting cross-border deployments and supplier qualifications for regulated industries. This fuse is further compatible with Bussmann RK1 family devices for standardized protection across multiple panels and installations. The integration of a standard packaging format simplifies stocking and field swaps, accelerating maintenance routines and reducing downtime during fuse replacements.
