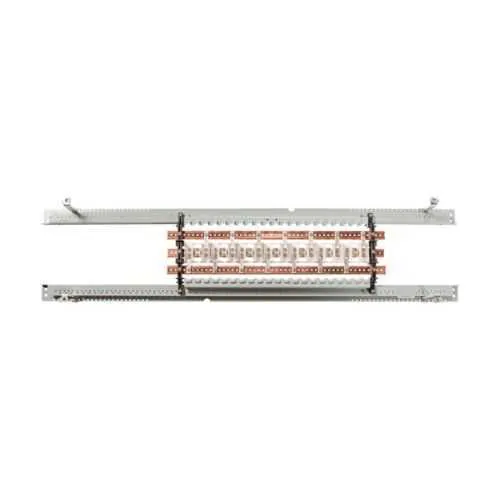

Eaton PRL1X1600X42CL Panelboard - UL 67 Certified
Part Number: PRL1X1600X42CL
Quick Summary
Eaton PRL1X1600X42CL is a panelboard solution designed for high-capacity distribution in industrial controls. Many facilities struggle with space limitations and complex wiring when expanding power distribution, leading to downtime and costly rework. This device carries UL 67 listings and NEMA Compliant, with copper bus that ensures low resistance and reliable current delivery, while the interior PRL1X design simplifies mounting in SFB 120/240 panels. By delivering 600A across 42 circuits in a compact 79 in x 15 in x 6 in footprint, it supports scalable automation systems and faster commissioning. The combination of robust safety certifications and a strong value proposition makes it a practical choice for engineers and procurement teams seeking dependable, code-compliant power distribution.
Product Information
Extended Description
PRL1X1600X42CL Eaton: Eaton PRL1X INTERIOR FOR SFB 120/240 1P 3W 600A 42 CU BUS
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X1600X42CL
UPC
786689363031
Product Length/Depth
79 in
Product Height
6 in
Product Width
15 in
Product Weight
162 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
42
Type
PRL1X INTERIOR
Amperage Rating
600A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X1600X42CL
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: High-capacity interior panelboard with 42 circuits and a 600 A amperage rating enables scalable distribution for demanding loads. Business Impact: Reduces the need for multiple smaller panels, shortens installation time, and minimizes cabinet clutter, while improving fault isolation and serviceability. Application: Suited to SFB 120/240 V 1P 3W systems in manufacturing cells, machine control cabinets, and process lines. Feature: Copper bus material provides low resistance and dependable current transfer. Business Impact: Improves energy efficiency, reduces voltage drop under peak loads, and lowers overheating risk compared with aluminum buses. Application: Ideal for critical power paths in automation equipment and panelboard assemblies requiring consistent performance. Feature: UL 67 listing and NEMA Compliant design. Business Impact: Enhances safety compliance, reduces regulatory risk, and supports enterprise-wide code adherence. Application: Suitable for industrial environments and regulatory programs demanding recognized certifications. Feature: Interior PRL1X configuration and compatibility with Pow-R-Xpress stocking program. Business Impact: Speeds procurement and installation, lowers lead times, and simplifies field wiring with preplanned interfaces. Application: Works with SFB 120/240 layouts and Eaton accessory families in new buildouts or retrofits. Feature: Compact footprint and robust weight tolerance (79 in length, 15 in width, 6 in height, 162 lb). Business Impact: Optimizes floor space planning, facilitates transport, and enables scalable expansion without excessive enclosure footprint. Application: Ideal for space-constrained electrical rooms and modular automation cells.
Get a Quick Quote for a Eaton PRL1X1600X42CL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X1600X42CL?
Enquire Now
FAQs
The PRL1X1600X42CL is an interior panelboard designed for SFB 120/240 V, 1P 3W configurations. It provides 600 A, 42 circuits, and uses copper bus conductors, enabling straightforward integration with standard Eaton accessories and common control-panel footprints. This ensures faster, code-compliant installations in automated lines and machine rooms.
Key specs include a 600 A amperage rating, 42 circuits, 79 in length, 15 in width, and 6 in height, with a copper bus for low resistance. UL 67 certification and NEMA compliance validate safety and suitability for industrial environments. The unit weighs 162 lb, supporting robust, durable field installations.
Yes. The panelboard carries UL 67 certification and is designed to be NEMA compliant, which supports safe operation in demanding industrial settings. Its interior PRL1X configuration and copper bus provide reliable current transfer, reducing heat and voltage drop under load while meeting stringent safety standards.
Key ROI drivers include the interior PRL1X design that simplifies mounting and wiring, the 42-circuit, 600 A capability reducing the number of panels needed, and compatibility with Eaton's Pow-R-Xpress stocking program for faster procurement. Space efficiency and reduced commissioning time further lower lifecycle costs in automation projects.
Official Eaton documentation is available in the product downloads: the Eaton Specification Sheet for PRL1X1600X42CL, plus related brochures and the panelboard reference guide. Accessing these PDFs ensures accurate installation details, wiring schematics, and compliance notes during procurement and engineering review.
