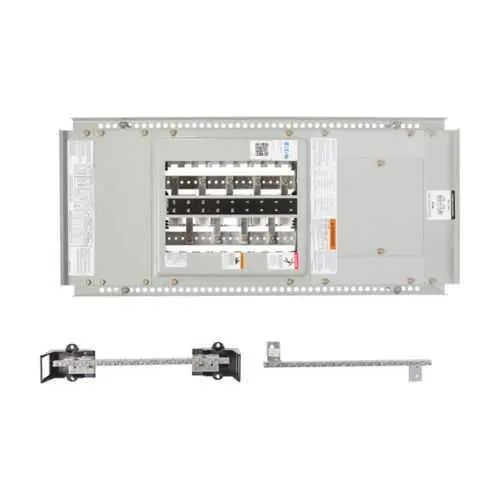

Eaton PRL1X3100X18A Pow-R-Xpress Panelboard - UL 67
Part Number: PRL1X3100X18A
Quick Summary
The Eaton PRL1X3100X18A Pow-R-Xpress panelboard provides compact interior power distribution for 120/208V 3P4W systems. Engineers often face space constraints and lengthy lead times when upgrading feeders and breaker panels. UL 67 certification, NEMA compliance, and aluminum bus construction support safe, durable operation in indoor environments. Designed for easy installation and compatibility with Eaton's Pow-R-Xpress stocking program, it helps reduce procurement cycle times and project risk. With 18 circuits and a 100A rating, the unit scales to light industrial and commercial panels while maintaining a compact footprint. Integrated labeling and modular design simplify field wiring, future expansion, and serviceability. This combination of reliability and procurement speed translates to lower downtime and faster project ROI.
Product Information
Extended Description
PRL1X3100X18A Eaton: Eaton PRL1X INTERIOR 120/208 3P 4W 100A 18 CKT AL BUS
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3100X18A
UPC
786689363048
Product Length/Depth
25 in
Product Height
6 in
Product Width
15 in
Product Weight
19.6 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
18
Type
PRL1X INTERIOR
Amperage Rating
100A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X3100X18A
Feature: Aluminum bus material provides robust conductivity while reducing weight. Business Impact: Lighter panels ease handling during installation and improve electrical performance due to efficient current paths. Application: Ideal for interior panel installations in commercial facilities and retrofit projects. Feature: 18 circuits at a 100A rating delivers scalable distribution for growing loads. Business Impact: Supports modular expansion without replacing the entire panelboard, lowering total cost of ownership. Application: Suitable for small to mid-size facilities requiring reliable 3P4W power distribution. Feature: UL 67 listing and NEMA compliance mitigate regulatory risk and enhance safety. Business Impact: Improves compliance confidence and reduces engineering overhead during audits. Application: Essential for indoor electrical distribution in commercial environments. Feature: Pow-R-Xpress compatibility enables faster procurement and stocking. Business Impact: Shortens project timelines and reduces inventory risk for integrators. Application: Ideal for projects with aggressive delivery schedules. Feature: Compact footprint and precise dimensions support flexible mounting and easier serviceability. Business Impact: Simplifies retrofit work and enables installation in constrained electrical rooms. Application: Great for renovations and new builds with space limitations. Feature: Clear labeling and modular design streamline wiring, testing, and future expansion. Business Impact: Lowers commissioning time and enables rapid scalability. Application: Useful for maintenance teams and future-proofing installations.
Get a Quick Quote for a Eaton PRL1X3100X18A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3100X18A?
Enquire Now
FAQs
The PRL1X3100X18A is an interior 120/208V 3P4W panelboard with 18 circuits and aluminum bus, UL 67 listed. It is designed for straightforward integration in new builds or retrofit projects and pairs well with common housing footprints, easing replacement without extensive rework. Verify mounting pattern and bus alignment during site surveys for a smooth upgrade.
Key specs include a 100A amperage rating, 18 circuits, 25 in length, 15 in width, and 6 in height, with aluminum bus material. The unit is UL 67 listed and NEMA compliant, suitable for indoor environments. These details support accurate load planning and compliant, safe operation in commercial and light-industrial settings.
Yes. The panelboard is designed for interior 120/208V 3P4W distribution with 18 circuits and 100A. Its UL 67 listing and NEMA compliance ensure safety and durability in commercial environments, while its compact footprint supports installation in utility rooms, mechanical spaces, or under stairs where space is at a premium.
This model carries UL 67 certification and is NEMA compliant, underscoring safety and reliability for indoor electrical distribution. These certifications help satisfy regulatory requirements, insurer expectations, and client spec sheets, reducing project risk and streamlining approval processes during commissioning.
Pow-R-Xpress compatibility accelerates stocking and procurement, shortening lead times and reducing inventory risk for integrators and contractors. Coupled with the 100A/18-circuit capability, it enables scalable, cost-effective distribution for growing facilities, improving project timelines and return on investment without compromising safety or performance.
