Eaton PRL1X3100X18C Pow-R-Xpress Panelboard - UL 67
Part Number: PRL1X3100X18C
Quick Summary
The Eaton PRL1X3100X18C Pow-R-Xpress panelboard for 120/208V, 3P, 4W distribution is engineered to simplify power distribution in tight spaces. Engineers often struggle with space constraints and wiring complexity when deploying panelboards in new builds or retrofits. UL 67 certification and NEMA compliance ensure safe, code-aligned operation, while the copper bus and 18-branch configuration boost reliability. With a compact footprint and the trusted Eaton build quality, this interior panelboard accelerates installation, reduces field labor, and supports long-term maintenance and scalability for industrial and commercial systems. It’s a practical choice for industrial automation panels, service equipment, and lighting and emergency distribution applications.
Product Information
Extended Description

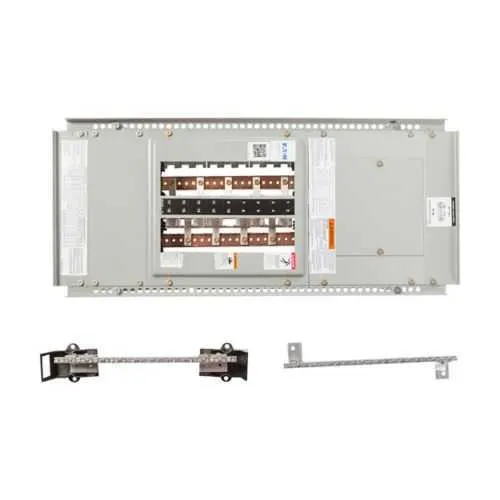

PRL1X3100X18C Eaton: Eaton PRL1X INTERIOR 120/208 3P 4W 100A 18 CKT CU BUS
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3100X18C
UPC
786689363055
Product Length/Depth
25 in
Product Height
6 in
Product Width
15 in
Product Weight
21 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Copper
Number of circuits
18
Type
PRL1X INTERIOR
Amperage Rating
100A
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - PRL1X3100X18C
Feature → Copper bus construction provides low voltage drop and high conductivity, improving overall system efficiency and reducing heat buildup under load. Business Impact → Lower energy losses translate to measurable operating cost savings and improved uptime in critical electrical racks. Application → Ideal for panel enclosures in manufacturing lines and control rooms where space is at a premium. Feature → Compact interior footprint (25 in depth, 15 in width, 6 in height) and a 21 lb weight enable easier mounting and handling within restricted spaces. Business Impact → Faster installation and reduced construction costs, enabling quicker project ROI. Application → Suitable for retrofits and new builds in HVAC, lighting, and process automation panels. Feature → 18 circuits fed by a 100A rating with copper bus supports scalable branch distribution. Business Impact → Modular capacity supports phased expansion without replacing equipment, cutting future CAPEX. Application → Light-to-medium power distribution in commercial or industrial facilities. Feature → Compliances include NEMA and UL 67 certifications, ensuring regulatory alignment. Business Impact → Minimizes compliance risk and accelerates procurement cycles for code-approved installations. Application → Data centers, machine rooms, and service enclosures requiring reliable power distribution. Feature → Pow-R-Xpress interior design optimizes installation time with standardized components and documented specs. Business Impact → Reduces field labor, shortens commissioning, and improves overall project timelines. Application → OEM assemblies, commercial buildings, and industrial automation panels requiring standardized panelboard solutions.
Get a Quick Quote for a Eaton PRL1X3100X18C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3100X18C?
Enquire Now
FAQs
The PRL1X3100X18C is designed for interior panel installations in 120/208V 3P 4W systems. Begin by securing the enclosure in a suitable rated space, connect the copper bus bars, and mount the 18 circuit locations per the catalog dimensions. Follow UL 67 and NEMA compliance guidelines during assembly and ensure proper routing of feeders and branch circuits to maintain clearances and safe access. Manufacturer data sheets provide step-by-step wiring diagrams and torque values to streamline commissioning.
This panelboard supports 120/208V operation, three-phase four-wire configuration, with an amperage rating of 100A and 18 available circuits. It uses copper bus material for superior conductivity and reliability. The unit complies with UL 67 and NEMA standards, aiding in regulatory acceptance for commercial and industrial environments.
Yes, the PRL1X3100X18C is well-suited for controlled environments such as data centers and industrial control rooms where compact interior panel distribution is needed. Its 18 circuit capacity, 100A rating, copper bus, and certified protections support reliable power to critical loads while fitting into space-constrained enclosures commonly found in automation facilities.
Rely on UL 67 certification and NEMA compliance for this panelboard. These certifications verify safe construction, electrical performance, and suitability for general lighting and power distribution applications in commercial and industrial settings, helping you meet code requirements and supplier qualifications.
The PRL1X3100X18C offers a compact, high-density circuit layout with a copper bus for efficient operation and reduced voltage drop. Its 18-circuit capacity supports phased expansion, lowering future retrofit costs. Front-access design and standardized components reduce installation time and ongoing maintenance, contributing to lower total cost of ownership in automation and facility service environments.
