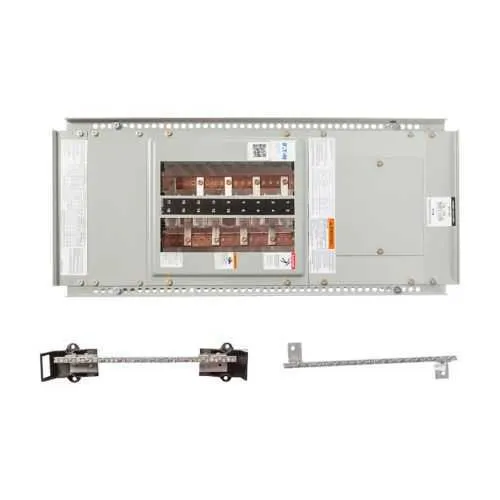

Eaton Pow-R-Xpress PRL1X3225X18AS Panelboard - UL 67
Part Number: PRL1X3225X18AS
Quick Summary
Eaton Pow-R-Xpress PRL1X3225X18AS panelboard is a compact interior power distribution solution for commercial and light industrial electrical rooms. Engineers facing space constraints and expansion challenges gain a scalable 18-circuit, 225 A unit with 208/120 V three-phase capacity to support growing loads. It's UL 67 listed and NEMA compliant, with an aluminum bus and interior design that streamlines installation and reliability in service. By aligning with Pow-R-Xpress, you get faster commissioning, minimal field wiring, and a modular architecture that reduces total cost of ownership for modern electrical rooms. This combination delivers predictable performance across data centers, manufacturing lines, and building automation systems.
Product Information
Extended Description
PRL1X3225X18AS Eaton: EATON POW-R-XPRESS PRL1X INTERIOR 208/120 3P 4W 225A 18 CKT AL BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3225X18AS
UPC
786689877057
Product Length/Depth
25 in
Product Height
5.75 in
Product Width
8 in
Product Weight
19 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
18
Phase
Three-phase
Type
PRL1X INTERIOR
Bus Rating
255 A
Voltage - max
240 V
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Key specifications and the business impact are integrated to support real-world results. The PRL1X3225X18AS interior panelboard provides 18 circuits, a 255 A bus rating, and 208/120 V three-phase capacity, all within a compact 25 in L x 8 in W x 5.75 in H footprint. This enables efficient use of crowded electrical rooms and scalable capacity for future loads, reducing space-related delays during upgrades. The UL 67 listing and NEMA compliance mitigate risk and simplify regulatory planning, helping facilities meet industry standards with confidence. Aluminum bus construction lowers weight and improves conductivity, translating to easier handling during installation and dependable performance in demanding environments. Compatibility with the Pow-R-Xpress family supports rapid integration, fast commissioning, and straightforward maintenance. Engineers also appreciate the interior design that simplifies wire organization, minimizes field labor, and supports modular expansion for evolving power distribution needs.
Get a Quick Quote for a Eaton PRL1X3225X18AS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PRL1X3225X18AS?
Enquire Now
FAQs
The PRL1X3225X18AS interior panelboard measures 25 inches in length, 8 inches in width, and 5.75 inches in height, with an approximate weight of 19 pounds. It supports 18 circuits and a three-phase, 208/120 V operation. Its aluminum bus design and NEMA/UL compliance simplify mounting and long-term reliability in compact spaces.
Key ratings include 18 circuits, three-phase (3P), 4-wire configuration, 208/120 V input, and a 225 A bus rating with an aluminum bus. The unit is UL 67 listed and NEMA compliant, indicating safety and enclosure compatibility for indoor electrical rooms and light-industrial applications.
Yes. The PRL1X3225X18AS is UL 67 listed and NEMA compliant, providing validated safety performance for interior panelboard installations and ensuring compatibility with standard enclosures and industrial electrical practices.
This Eaton Pow-R-Xpress panelboard is well suited for commercial electrical rooms, machine panels on factory floors, and light-industrial equipment enclosures. Its 208/120 V three-phase capability, 18 circuits, and modular interior design support efficient distribution in compact spaces while accommodating future expansions.
Benefit highlights include faster commissioning, reduced field wiring, and scalable capacity that lowers future upgrade costs. The aluminum bus reduces weight for easier handling, while UL 67 and NEMA compliance mitigate regulatory risk. Compatibility with the Pow-R-Xpress family promotes a modular, maintainable power distribution strategy with improved lifecycle economics.
