Eaton Pow-R-Xpress PRL1X3225X30AS Panelboard - UL 67
Part Number: PRL1X3225X30AS
Quick Summary
Eaton Pow-R-Xpress PRL1X3225X30AS is an interior three-phase panelboard designed for 208/120 V systems with 30 circuits. Engineers often struggle with space and wiring complexity when upgrading panelboards, but this unit offers a compact footprint and modular interior layout. UL 67 and NEMA compliance support safe operation in commercial and light-industrial environments, while the 255 A bus rating and 240 V max address modern distribution requirements. In practice, customers gain faster procurement through Pow-R-Xpress stocking while benefiting from dependable interior power distribution with aluminum bus and 30 circuits. This combination supports safer installations, reduces wiring errors, and helps teams meet project timelines in industrial control environments.
Product Information
Extended Description

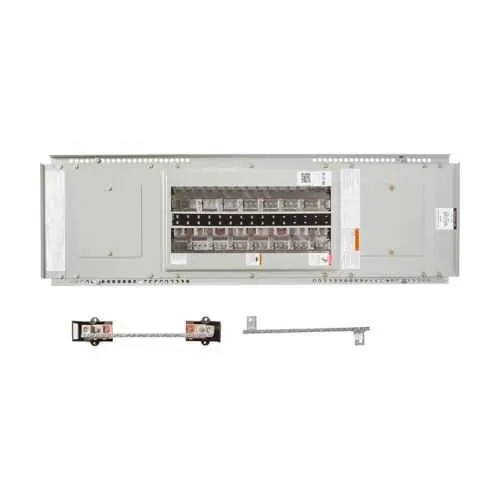

PRL1X3225X30AS Eaton: EATON POW-R-XPRESS PRL1X INTERIOR 208/120 3P 4W 225A 30 CKT AL BUS NO SFD
Product Name
Eaton Pow-R-Xpress PRL1X panelboard
Catalog Number
PRL1X3225X30AS
UPC
786689877132
Product Length/Depth
31 in
Product Height
5.75 in
Product Width
8 in
Product Weight
59 lb
Compliances
NEMA Compliant
Certifications
UL 67
Bus material
Aluminum
Number of circuits
30
Phase
Three-phase
Type
PRL1X INTERIOR
Bus Rating
255 A
Voltage - max
240 V
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Feature → Business Impact → Application: The aluminum bus reduces overall weight and simplifies on-site handling, enabling faster installation and reduced crane time while maintaining a 255 A bus rating for robust load capacity in 208/120 V systems, improving reliability and reducing rework in manufacturing lines. This translates to tighter control wiring, safer field terminations, and easier maintenance in machine rooms and control panels. The interior PRL1X design facilitates orderly wire routing, supports 30 circuits, and enables future expandability, lowering long-term ownership costs and easing code compliance for electrical distributors. Compatibility with UL 67 and NEMA compliant standards ensures installations meet regulatory requirements, while the compact 31 in depth saves space in constrained electrical rooms. The 8 in width and 5.75 in height enclosure provides flexible mounting options across commercial facilities, substations, and service upgrades. The 208/120 V three-phase four-wire configuration aligns with common process loads and MCCs, delivering consistent voltage distribution with reduced heat rise under typical duty cycles.
