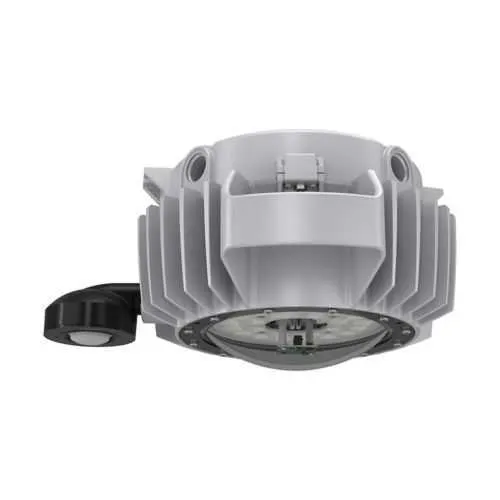

Eaton PVML-7-UNV1-SS12-M3 LED Intelligent Lighting Fixture - IP66

Part Number: PVML-7-UNV1-SS12-M3
PVML-7-UNV1-SS12-M3
Manufacturer
Eaton
Part number
PVML-7-UNV1-SS12-M3
Category

Quick Summary

The Eaton PVML-7-UNV1-SS12-M3 is an intelligent LED light fixture designed for industrial facilities, delivering bright, reliable illumination in harsh environments. Engineered to eliminate unexpected outages and maintenance hassles, it addresses the common pain points of inconsistent lighting in busy plants. Certified for IP66 and NEMA 4X, and compliant with NEC/CEC IEC standards, it stands up to dust, water, and rugged industrial settings. With a dimmable driver and high-efficiency Type V optics, it reduces energy costs while maintaining uniform illumination across large spaces. Additionally, its sensor-ready capability supports scalable, smart-lighting strategies in warehouses and manufacturing floors.

Product Information

Extended Description

PVML-7-UNV1-SS12-M3 Eaton: Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture, Cool, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 50W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture
Catalog Number
PVML-7-UNV1-SS12-M3
UPC
662277167048
Product Length/Depth
18.25 in
Product Height
6.5 in
Product Width
16 in
Product Weight
14.98 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
156
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
50W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
Special features
Sensor with barrier board
SP3D Design Package - Champ PVML LED Intelligent Lighting Crouse-Hinds series Champ PVML LED Intelligent Lighting - brochure Crouse-Hinds series Champ PVML LED Intelligent Lighting - brochure Champ Intelligent Lighting Quick Start Guide Crouse-Hinds series Champ PVML LED Intelligent lighting - catalog page Champ PVML LED Intelligent lighting UL certification Champ PVML LED Intelligent lighting UL certification Champ PVML LED Intelligent lighting UL certification Champ Intelligent Lighting FAQs Crouse-Hinds series Champ PVML LED Intelligent ies photometric files
Luminosity and efficiency drive real-world outcomes: 7000 lumens at 156 lm/W from a 50 W rating provides ample coverage with low energy use, reducing the number of fixtures required on high-ceiling applications such as warehouses and production lines. The dimmable driver supports precise control and reduced glare, enabling fine-tuned lighting schemes that save energy during off-peak hours and improve worker comfort in process areas. A rugged die-cast aluminum housing paired with IP66 and NEMA 4X protection ensures long service life in dusty, wet, or washdown environments, cutting maintenance cycles and total cost of ownership. Type V optics and heat/impact resistant glass deliver uniform illumination and minimized hot spots, even in large open spaces. The product ships without a mounting module, offering installation flexibility with existing brackets or enclosures in ordinary/non-hazardous locations.

Get a Quick Quote for a Eaton PVML-7-UNV1-SS12-M3

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton PVML-7-UNV1-SS12-M3? Enquire Now

FAQs

PVML-7-UNV1-SS12-M3 ships without a mounting module, so installation relies on compatible mounting brackets or enclosures you already use. The fixture measures 18.25 inches long with a 16 inch width and 6.5 inch height, and uses a die-cast aluminum housing for robust attachment in ordinary locations. Plan for secure mounting hardware and confirm IP66/NEMA 4X protection during installation to maintain environmental sealing.
The PVML-7-UNV1-SS12-M3 operates at 50 W with a voltage rating of 100-277 Vac and 127-250 Vdc, across 50/60 Hz with a power factor above 0.90. The dimmable driver allows compatibility with smart controls and energy management systems, enabling tailored illumination schedules in warehouses and plants without overhauling existing circuits.
PVML is certified for Ordinary/Non-Hazardous Locations with IP66 and NEMA 4X protection, making it ideal for harsh but non-hazardous industrial environments. It is not rated for hazardous locations, so verify your site’s classification before deployment and consider additional enclosure or protection if needed for extreme outdoor exposure.
PVML carries IP66 ingress protection and a NEMA 4X enclosure for rugged, washdown-ready use, along with NEC/CEC IEC standards compliance. These certifications provide assurance of environmental resilience, electrical safety, and regional standard alignment, reducing compliance risk in industrial facilities and supporting long-term maintenance planning.
With 7000 lumens at 50 W and a high lumen-per-watt ratio, PVML reduces installed wattage and energy use compared with legacy lighting. The dimmable driver and sensor-ready capability enable adaptive lighting, lowering energy costs during off-peak times while improving worker visibility and safety, contributing to faster payback and lower total cost of ownership in warehouses and manufacturing spaces.
