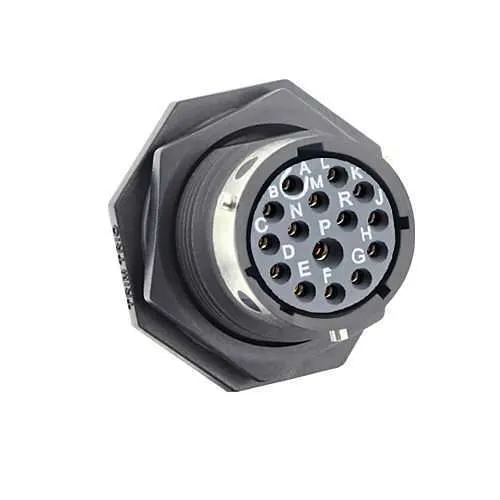

Eaton UTGX714E15S Receptacle - IP68/69K ruggedized
Part Number: UTGX714E15S
Quick Summary
The Eaton UTGX714E15S ruggedized receptacle connects equipment in harsh industrial environments. Engineers regularly contend with moisture, dust, and temperature swings that degrade connectivity and uptime. IP68/69K sealing in unmated conditions, RoHS and REACH compliance, and UL94 V0 flammability provide crucial reliability for washdown lines and outdoor machinery. With 15 solder cup contacts and a jam nut receptacle design, installation is straightforward in tight panels, reducing field failures and maintenance costs. The UTGX family also supports predictable sourcing and long-term procurement, delivering measurable value in rugged automation projects.
Product Information
Extended Description
UTGX714E15S Eaton: Jam nut receptacle, without backshell, with 15 female solder contacts, IP68/69K in unmated conditions; UTGX714E15S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E15S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E15
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
15
Salt spray
500 hour
15 solder cup contacts deliver robust, field-repairable terminations and stable electrical performance in demanding equipment. The solder cup interface provides dependable, low-resistance connections even after thermal cycles, reducing contact resistance drift and intermittent faults in automation panels. In robotics, packaging, and CNC machinery, solder cup contacts simplify field servicing and allow secure rework during upgrades. Jam Nut Receptacle mounting with no backshell option enables compact, panel-friendly installation and lowers total parts count. For retrofits or space-constrained enclosures in mining equipment or washdown lines, the smaller footprint translates directly into faster assembly, easier cable routing, and reduced spare parts inventory, delivering tangible capital savings over the connector's lifespan. 1/3 bayonet coupling provides fast, secure mating even in harsh environments. The simple twist-to-lock action reduces mating time on busy shop floors and carves out more uptime for critical lines prone to vibration, while preserving consistent sealing and long service life in aggressive industrial settings. IP68/69K sealing in unmated conditions ensures moisture protection during mating and demating, essential for washdown and outdoor applications. The rugged metal-and-plastic shell resists corrosion, and 500-hour salt spray resistance adds confidence in saline or coastal environments, extending equipment life and limiting replacement costs. Operating temperature from -40 to 105 °C covers extreme industrial climates, from cold shops to hot processing lines. RoHS and REACH compliance, plus UL94 V0 rating, simplify regulatory approvals and customer acceptance. This combination supports a single, versatile connector across multiple lines, improving procurement discipline and supplier consolidation. With 15 contacts and a 500 mating cycle rating, this UTGX version balances performance with lifecycle cost, ensuring dependable operation across automation, robotics, and plant equipment.
Get a Quick Quote for a Eaton UTGX714E15S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714E15S?
Enquire Now
FAQs
UTGX714E15S uses a jam nut receptacle mounting and is specified without a backshell, ideal for compact panels. The design supports panel cutouts around 24.5 mm deep and a footprint that simplifies cable routing in tight enclosures. For rugged installations, ensure proper torque on the jam nut to maintain IP68/69K sealing.
The connector provides 15 solder cup contact positions with a loaded contact delivery, socket (female) gender, and a 1/3 bayonet coupling. It is designed for harsh environments and operates across -40 °C to 105 °C, offering reliable performance in vibration-prone automation, robotics, and packaging applications.
Yes. UTGX714E15S features IP68/69K sealing in unmated conditions, a rugged metal/ plastic shell, and salt spray resistance rated at 500 hours. These characteristics make it well-suited for washdown lines, outdoor machinery, and marine-adjacent workflows where moisture and contaminants are present.
The connector is RoHS and REACH compliant and carries UL94 V0 flammability rating. While IP68/69K sealing provides environmental performance, confirm any site-specific CE or other regulatory requirements with purchasing, as those codes aren’t specified in the base data.
Drawings can be downloaded from Eaton’s UTGX series repository, specifically UTGX0002AC.pdf. This drawing set provides mating dimensions, mounting tolerances, and installation notes to support panel integration and mating with UTGX714E15S.
