Rittal SV 9342.110 Base Tray - UL 94-V0 Hazard Protection
Part Number: 9342110
Manufacturer
Rittal
Part number
9342110
Category
Alt Part Number
SV 9342.110
Quick Summary
Rittal SV 9342.110 Base Tray is a rear contact hazard protection for busbar assemblies in switchgear and control panels. When maintenance requires rear access, exposed busbars pose shock risks and downtime—this tray reduces that risk and streamlines servicing. The solution leverages a thermally modified hard PVC material with a UL 94-V0 fire rating, aligning with ETIM EC002270 and ECLASS 27409221 classifications for reliable cataloging. With a 700 mm length designed to fit 3-pole busbar setups, its cut-to-length capability adds installation flexibility while protecting personnel and improving uptime in demanding industrial environments. This base tray also supports efficient inventory management and consistent color coding (RAL 7035) across panels and enclosures.
Product Information
Extended Description

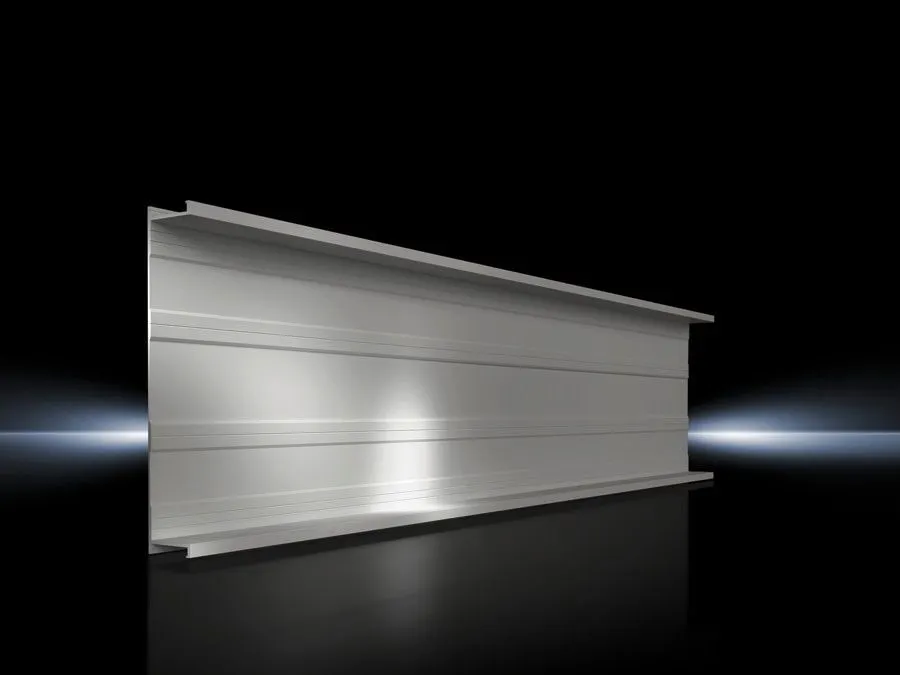

9342110 Rittal: SV Base tray, L: 700 mm (PLS 1600)
Article number
SV 9342.110
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
700 mm
Note
May be cut individually to required length
To fit busbar system
PLS 1600, 3-pole
Dimensions
Length: 700 mm
Packs of
2 pc(s).
Weight/pack
1.66 kg
Customs tariff number
85472000
EAN
4028177503533
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 700 mm (PLS 1600)
Feature: UL 94-V0 fire-rated thermally modified hard PVC. Business Impact: Enhances safety compliance and reduces risk of ignition in electrical enclosures, supporting audits and regulatory requirements. Application: Appropriate for switchgear and control panels where rear protection is essential. Feature: Length 700 mm with the option to cut to required length. Business Impact: Minimizes waste and allows precise fitting to diverse enclosure footprints, shortening installation time. Application: Custom-length installations for PLS 1600 busbar systems. Feature: 3-pole compatibility for PLS 1600 systems. Business Impact: Ensures an exact, secure fit for reliable electrical performance and safe maintenance access. Application: Standard in 3-pole busbar configurations across many Rittal panels. Feature: Material robustness and color coding (RAL 7035). Business Impact: Durable, visually consistent panels reduce commissioning errors and simplify field maintenance. Application: Industrial control cabinets requiring durable rear protection with clear identification. Feature: Packs of 2 with weight 1.66 kg per pack. Business Impact: Efficient logistics and stocking for OEM and integrator supply chains, lowering handling time and costs. Application: Bulk procurement for multi-panel deployments; easy replenishment. Feature: May be cut to required length and is designed to fit busbar system PLS 1600, 3-pole. Business Impact: Flexible installation without specialized tooling, accelerating retrofits and expansions. Application: Retrofit projects and new builds needing customized base trays for safe rear access.
Get a Quick Quote for a Rittal 9342110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342110?
Enquire Now
FAQs
Yes. The SV 9342.110 is designed to fit PLS 1600, 3-pole busbar configurations, ensuring a secure, rear-protected path for maintenance access. The 700 mm length can be cut if a shorter run is required, enabling precise integration into existing enclosures.
The tray is made from thermally modified hard PVC with a UL 94-V0 fire rating. This combination provides flame retardancy, robust mechanical performance, and safer operation within electrical enclosures, aiding compliance during safety audits and reducing ignition risk in fault scenarios.
Primary applications include switchgear and control panels requiring rear contact hazard protection for 3-pole busbar systems. Benefits include reduced shock risk during maintenance, easier color-coded identification (RAL 7035), and a flexible fit thanks to cut-to-length capability, which translates to faster installations and fewer change orders.
The base tray references ETIM 9 EC002270 and ECLASS 8.0 27409221 for standardized cataloging and interoperability. It also uses UL 94-V0 conformity for flame retardancy, aligning with common industry safety expectations and easing cross-system documentation and procurement.
By enabling quick, safe rear access and reducing the risk of contact with live busbars, maintenance time is shortened and incident risk decreases. The cut-to-length feature reduces waste, while two-pack packaging streamlines stocking for multi-panel deployments, contributing to lower lifecycle costs and improved total cost of ownership.
