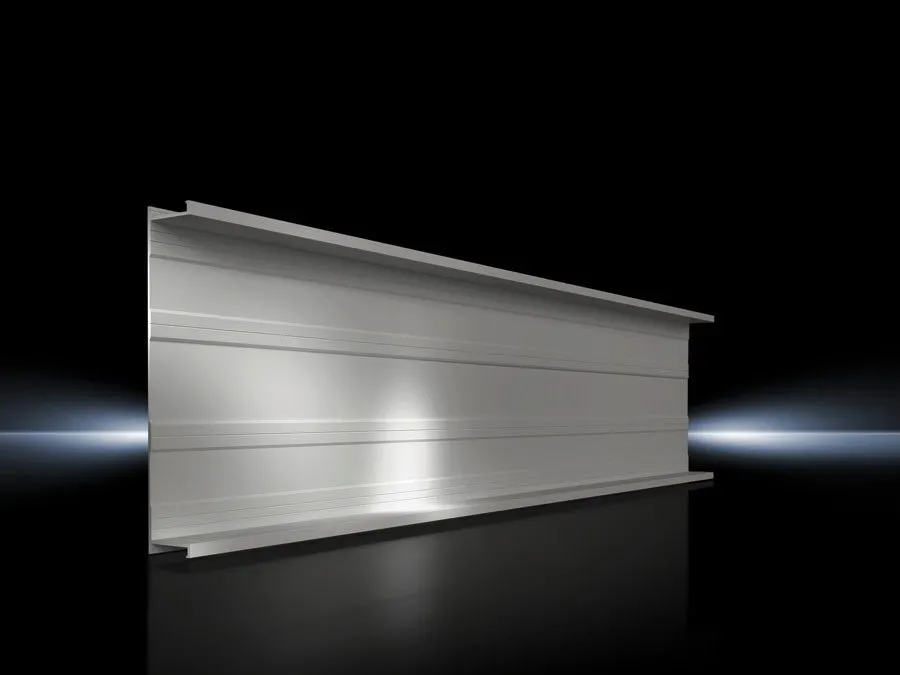

Rittal SV 9342.120 Base Tray 3-Pole - UL 94-V0
Part Number: 9342120
Manufacturer
Rittal
Part number
9342120
Category
Alt Part Number
SV 9342.120
Quick Summary
Rittal SV 9342.120 Base Tray is a rear contact hazard protection accessory for busbar assemblies in modular switchgear and power distribution enclosures. When working with exposed conductors, operators face safety risks and potential downtime due to miscuts or mismatched components. This base tray delivers reliable protection with a 900 mm length and 3-pole compatibility for PLS 1600 systems, while maintaining cut-to-length versatility. It uses thermally modified hard PVC with UL 94-V0 fire protection and aligns with industry data standards such as ETIM 7.0 EC002270 and ECLASS 8.0 27409221 for dependable sourcing. By matching these specs, it supports regulatory compliance, reduces field errors, and accelerates safe, efficient assemblies.
Product Information
Extended Description
9342120 Rittal: SV Base tray, L: 900 mm (PLS 1600)
Article number
SV 9342.120
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
900 mm
Note
May be cut individually to required length
To fit busbar system
PLS 1600, 3-pole
Dimensions
Length: 900 mm
Packs of
2 pc(s).
Weight/pack
2.14 kg
Customs tariff number
85472000
EAN
4028177503540
ETIM 7.0
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 900 mm (PLS 1600)
Feature → Business Impact → Application: The SV 9342.120 Base Tray provides a 900 mm coverage that seamlessly fits 3-pole PLS 1600 busbar configurations, reducing gaps and exposure at the rear while improving enclosure integrity. This translates to lower risk of accidental contact and faster, more repeatable installations in control cabinets and switchgear. Feature → Business Impact → Application: Constructed from thermally modified hard PVC with UL 94-V0 fire protection, offering enhanced fire safety and long-term durability in harsh industrial environments, aiding compliance and reducing maintenance costs. Feature → Business Impact → Application: Its RAL 7035 color standardizes visibility and identification within multi-vendor systems, which minimizes misassembly and accelerates audits in high-mix production facilities. Feature → Business Impact → Application: May be cut to the required length, delivering installation flexibility and material efficiency in cabinets of varying depths, cutting waste and inventory needs. Feature → Business Impact → Application: Packaged as 2 pieces per pack with a weight of 2.14 kg per pack, simplifying logistics, stock control, and replacement planning for service teams in plants and data centers. Feature → Business Impact → Application: Fully compatible with PLS 1600 3-pole busbar systems and ETIM/ECLASS classifications, ensuring smooth procurement and integration with existing MRO workflows and ERP systems.
Get a Quick Quote for a Rittal 9342120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342120?
Enquire Now
FAQs
To install, ensure the base tray is compatible with a 3-pole PLS 1600 configuration and measure the enclosure depth. Cut the tray to the required length if needed, fit it along the rear of the busbar assembly, and secure using appropriate screws or mounting hardware. Verify UL 94-V0 material integrity and confirm classification codes in your BOM for traceability.
Yes, SV 9342.120 is designed for 3-pole configurations and fits PLS 1600 systems. The base tray length is 900 mm, color is RAL 7035, and it is supplied in packs of 2 with a weight of 2.14 kg per pack. This combination supports uniform rear protection across typical switchgear enclosures.
The tray uses thermally modified hard PVC with UL 94-V0 fire protection. It is listed with ETIM 7.0 EC002270 and ECLASS 8.0 27409221 references for standardized product data. The EAN 4028177503540 helps with precise procurement, and the customs tariff is 85472000 for international shipping.
This base tray is ideal for control cabinets and switchgear within power distribution and automation systems where rear contact hazard protection is required. It supports 3-pole busbar assemblies and works well in environments demanding high safety standards, predictable cut-to-length customization, and straightforward compatibility with PLS 1600 configurations.
The 900 mm base tray provides consistent rear coverage, reducing risk of accidental contact and maintenance-related downtime. Cut-to-length capability minimizes waste, while standard color and data classifications streamline procurement and assembly, delivering quicker installation, fewer field errors, and measurable safety and productivity benefits in manufacturing or data-center environments.
