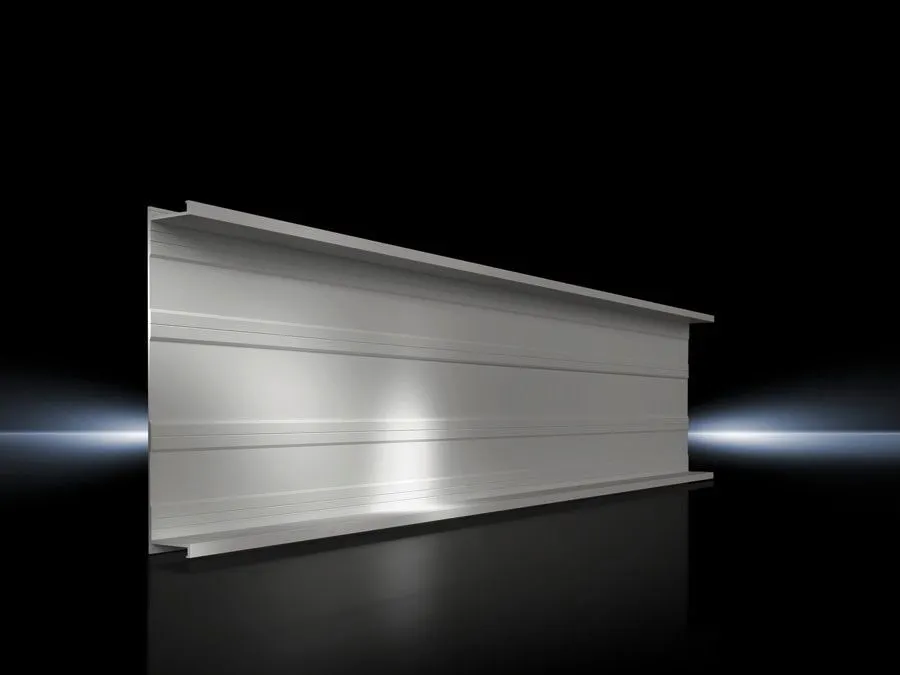

Rittal SV 9342.130 SV Base Tray - UL 94-V0
Part Number: 9342130
Manufacturer
Rittal
Part number
9342130
Category
Alt Part Number
SV 9342.130
Quick Summary
Rittal SV 9342.130 SV Base Tray provides rear-contact hazard protection for busbar assemblies in control panels. Installers often struggle with miscuts, incomplete shielding, and safety non-compliance in crowded enclosures. Key certifications and standards include UL 94-V0 fire protection, plus recognized data classifications ETIM EC002270 and ECLASS 27409221 to support cataloging and procurement. This solution also aligns with PLS 1600 three-pole busbar systems, enabling straightforward installation, efficient wiring routing, and scalable safety across panel fleets. By choosing this tray, your projects gain safer operator interaction, easier compliance documentation, and reduced waste during cut-to-length fabrication. Its neutral RAL 7035 color helps standardize enclosures, while the two-pack packaging simplifies stocking and logistics for maintenance teams.
Product Information
Extended Description
9342130 Rittal: SV Base tray, L: 1100 mm (PLS 1600)
Article number
SV 9342.130
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
1,100 mm
Note
May be cut individually to required length
To fit busbar system
PLS 1600, 3-pole
Dimensions
Length: 1,100 mm
Packs of
2 pc(s).
Weight/pack
2.62 kg
Customs tariff number
85472000
EAN
4028177503557
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 1100 mm (PLS 1600)
Material and fire protection: The SV Base Tray uses thermally modified hard PVC with a UL 94-V0 fire rating, delivering superior fire protection and helping meet stringent safety standards. This reduces risk of ignition and supports regulatory compliance in demanding panel environments, especially where rear-contact hazards are a concern. Compatibility and installation: Designed to fit 3-pole PLS 1600 busbar systems, the 1,100 mm length streamlines cabinet layout, allowing for clean shielding around conductors and faster commissioning. The business impact is shorter project cycles and consistent shielding performance across assemblies, with fewer field modifications required. Customization and waste reduction: May be cut to the required length on site, enabling precise enclosure fitment and minimizing scrap. This directly lowers material costs and simplifies inventory management for system integrators. Packaging and handling: Sold in packs of two with a weight of 2.62 kg per pack, which simplifies logistics, stocking, and replacement planning for service teams. Color and durability: RAL 7035 color provides standardization within multi-vendor enclosures, aiding visual safety cues and reducing misidentification during maintenance and audits. Procurement compatibility: ETIM EC002270 and ECLASS 27409221 classifications support efficient cataloging, responding to procurement workflows and BOM integration.
Get a Quick Quote for a Rittal 9342130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342130?
Enquire Now
FAQs
Begin by confirming the enclosure depth and 3-pole busbar arrangement. Cut the tray to the required length if needed, align with the busbar assembly, and secure using appropriate mounting points. Ensure the tray sits flush to prevent any pinch or arc paths, then verify that all edges are smooth and free of burrs before energizing.
The tray uses thermally modified hard PVC with UL 94-V0 fire protection, providing a fire-retardant barrier around the rear of the busbar. This reduces the risk of arc faults and operator contact injuries, supporting safer panel operation and audit-ready documentation.
Yes. The product note indicates the tray may be cut to the needed length. Use a suitable cutting tool, deburr edges, and verify the final length matches the enclosure without compromising mounting interfaces or busbar clearance.
Yes. The specification specifies for a 3-pole configuration and is designed to fit busbar systems such as PLS 1600, ensuring compatible shielding for three conductors within standard control panels.
The tray is packaged as 2 pieces per pack, with each pack weighing 2.62 kg. This packaging supports straightforward stocking, shipping, and replacement planning for service teams and maintenance inventories.
