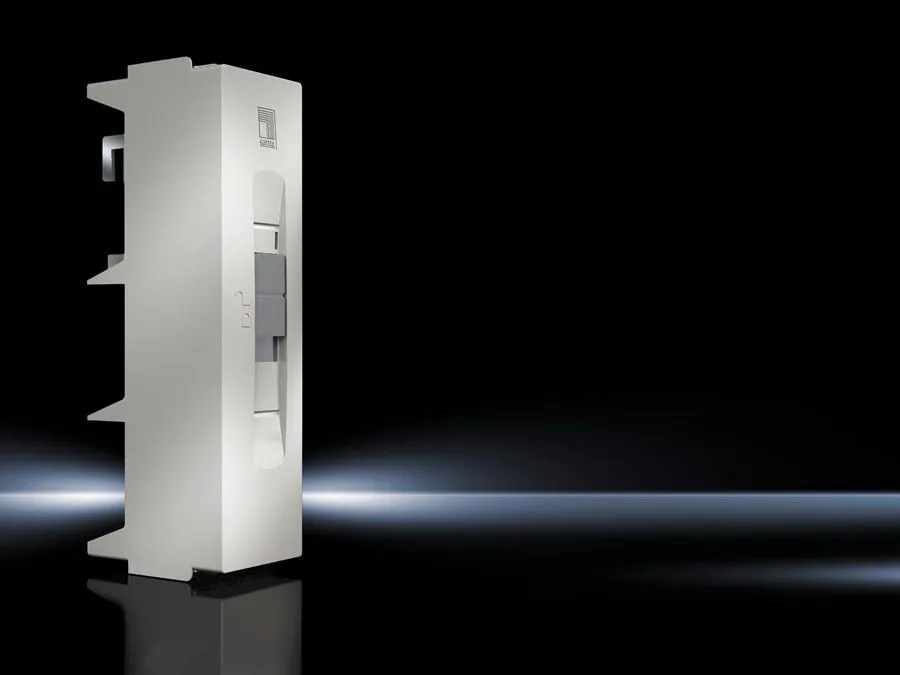

Rittal SV 9342.220 SV Connection adaptor - UL 94-V0
Part Number: 9342220
Manufacturer
Rittal
Part number
9342220
Category
Alt Part Number
SV 9342.220
Quick Summary
Rittal SV 9342.220 SV connection adaptor enables high-current busbar connections in 125 A, 690 V systems. In control cabinets, engineers often face misalignment, cable crowding, and slow wiring that stall assembly and increase risk. This adaptor complies with UL 94-V0 fire protection and aligns with ETIM EC001531 and ECLASS 27370304 for consistent data across procurement systems. By combining a robust polyamide punched section, an ABS cover, and top/bottom cable outlets, it delivers reliable performance with straightforward installation, reducing commissioning time and total cost of ownership in panel-building, switchgear, and distribution cabinet projects.
Product Information
Extended Description
9342220 Rittal: SV Connection adaptor, 125 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm
Article number
SV 9342.220
Material
Cover: ABS | Punched section: Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated current max.
125 A
Rated operating voltage
690 V, 3~
Cable outlet
Top/bottom
For bar systems with centre-to-centre spacing
60 mm
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 55 mm | Height: 210 mm
Connection of round conductors, fine wire with wire end ferrule
10 ‐ 25 mm²
Connection of round conductors, multi-wire
16 ‐ 35 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
10 x 7.8 mm
Packs of
1 pc(s).
Weight/pack
0.42 kg
Copper weight (kg per piece)
0.052
Customs tariff number
85369010
EAN
4028177503618
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Connection adaptor, 125 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm
The SV 9342.220 offers a 125 A, 690 V, 3-pole adaptor design with top and bottom cable outlets. This feature translates to a streamlined wiring path and a compact footprint that enhances overall cabinet density, enabling faster assembly and easier service access in 60 mm busbar spacing environments. The clamping area for laminated copper bars is 10 x 7.8 mm, providing a secure, low-resistance connection that reduces heat rise and improves long-term reliability in demanding applications such as machine control and process automation. Conductor connections accommodate 10–25 mm² fine-wire through ferrules and 16–35 mm² multi-wire, delivering flexible termination options for mixed wiring schemes. Material choices—ABS cover and polyamide punched sections with UL 94-V0 compliance—improve fire safety and durability in harsh industrial settings. With dimensions of 55 mm width and 210 mm height, installation aligns easily with standard module layouts and 60 mm busbar spacing, ensuring quick mounting and compatibility with existing busbar infrastructures. Copper weight of 0.052 kg per piece and a pack weight of 0.42 kg support cost-conscious, scalable installation in larger assemblies.
Get a Quick Quote for a Rittal 9342220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342220?
Enquire Now
FAQs
Begin by verifying the 60 mm busbar spacing in your cabinet. Align the adaptor with the busbars, insert round conductors into the 10–25 mm² (fine wire) or 16–35 mm² (multi-wire) terminals, and secure using the clamp area at 10 x 7.8 mm. Route cables through the top or bottom outlets as required, then fasten the adaptor to the mounting plane. The 55 mm width and 210 mm height fit standard panel openings, and the UL 94‑V0 rated housing enhances safety during wiring and maintenance.
The adaptor supports round conductors in two ranges: 10–25 mm² for fine wire with wire end ferrules and 16–35 mm² for multi-wire configurations. This flexibility enables mixed wiring schemes in complex panels, reducing the need for multiple accessories and simplifying component management in control cabinets.
Yes, the SV 9342.220 is designed to fit laminated copper busbars with a clamping area of 10 x 7.8 mm. It also accommodates busbar height options of 5 or 10 mm, facilitating straightforward integration into existing busbar layouts without rework or special adapters.
The adaptor carries UL 94‑V0 fire protection, and is catalogued with ETIM EC001531 and ECLASS 27370304 data references. These standards ensure consistent data across ERP and procurement systems, simplify component sourcing, and support compliance documentation for industrial electrical assemblies.
With a robust ABS/PA construction, top/bottom cable outlets for flexible routing, and reliable 125 A, 690 V performance, the adaptor reduces wiring time, minimizes rework, and lowers maintenance costs. Its compact form and standardized dimensions improve cabinet density, enabling scalable installations and faster commissioning in high-volume production environments.
