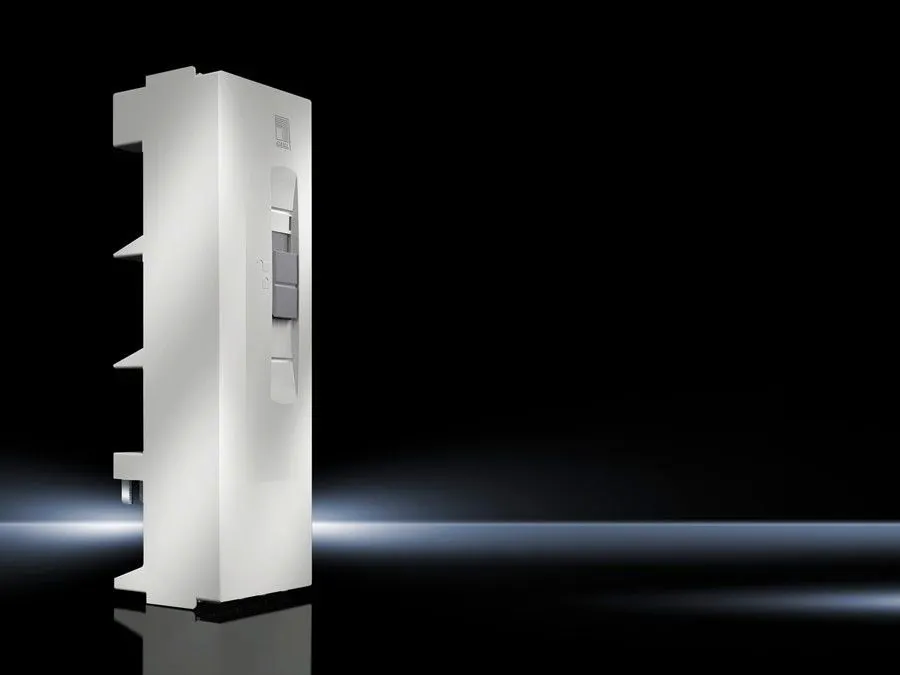

Rittal SV 9342.224 Connection Adaptor - UL 50 kA SCCR

Feature → Business Impact → Application: 125 A at 690 V, 4-pole construction enables handling of higher power draws in compact control panels, reducing the need for multiple adapters and saving enclosure space. This translates to lower hardware costs and faster panel assembly in industrial automation and switchgear applications. Feature → Top/bottom cable outlets improve conductor routing and enclosure cleanliness, which shortens wiring time and decreases potential points of failure in harsh environments. Application: suitable for machine control cabinets and distributed power layouts where space is at a premium. Feature → Round conductor connections for 10–35 mm² (fine wire 10–25 mm² with ferrule) and 16–35 mm² (multi-wire) provide flexible wiring options, improving compatibility with diverse field devices and simplifying installation. Application: supports diverse device connections in OEM equipment and retrofit projects. Feature → Clamping area 10 × 7.8 mm for laminated copper bars ensures a secure, low‑impedance contact, reducing contact resistance and heat buildup under load. Application: critical for reliable power transfer in high‑demand panels. Feature → 60 mm center‑to‑center spacing compatibility and busbar height fitting options (5 and 10 mm) enable rapid integration with existing busbar systems, minimizing misalignment and measurement adjustments during installation. Application: common in modular power distribution schemes. Feature → ABS cover with PA punched section and UL94‑V0 fire rating, color RAL 7035, enhances enclosure safety and visibility while meeting fire safety standards. Application: preferred in controlled environments and safety‑critical installations. Feature → Weight 0.64 kg per pack; copper weight 0.07 kg per piece supports predictable handling and design weight budgeting, enabling accurate enclosure planning. Application: relevant for mechanical fitting and thermal assessment. Feature → UL SCCR 50 kA at 600 V confirms suitability for high fault-current scenarios, backed by UL documentation; note that data may vary for UL applications. Application: essential for electrical safety compliance and system resilience. Feature → 1 pc pack simplifies stocking and reduces ordering complexity in procurement workflows. Application: convenient for project planning and maintenance cycles.
