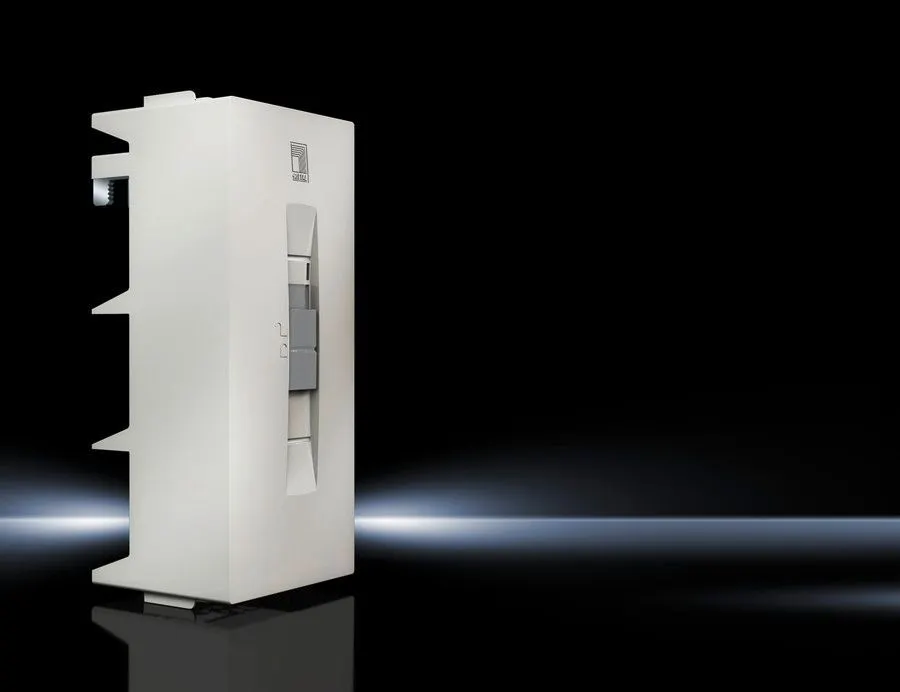

Rittal 9342250 SV Connection adaptor - 50 kA SCCR
Part Number: 9342250
Manufacturer
Rittal
Part number
9342250
Category
Alt Part Number
SV 9342.250
Quick Summary
Rittal SV Connection adaptor 9342250 provides high‑current, reliable busbar connections for 60 mm centre‑to‑centre systems. In modern panel builds, dense layouts and demanding voltage levels can complicate secure copper connections and maintenance cycles. This adaptor is built with UL‑listed materials and carries a 50 kA SCCR at 600 V, while the UL 94‑V0 rated cover enhances fire safety in enclosure environments. The combination of robust current rating, compliant insulation, and a 3‑pole configuration simplifies compliance and reduces risk. By integrating top or bottom cable outlets and a compact 90 x 210 mm footprint, it delivers scalable reliability for industrial control panels and power distribution cabinets, enabling faster assembly and lower lifecycle costs.
Product Information
Extended Description
9342250 Rittal: SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Article number
SV 9342.250
Material
Cover: ABS | Punched section: Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated current max.
250 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
50 kA - 600 V, Fuse Class K5 max. 250 A, JDDZ/7
Cable outlet
Top/bottom
For bar systems with centre-to-centre spacing
60 mm
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 90 mm | Height: 210 mm
Connection of round conductors, fine wire with wire end ferrule
35 ‐ 120 mm²
Connection of round conductors, multi-wire
35 ‐ 120 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
18.5 x 15.5 mm
Packs of
1 pc(s).
Weight/pack
0.78 kg
Copper weight (kg per piece)
0.166
Customs tariff number
85369010
EAN
4028177503632
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Feature: 250 A rated current with 690 V operating voltage → Business Impact: Enables single‑module connections for heavy loads, reducing the need for parallel connectors and simplifying protection schemes → Application: 3‑pole SV adaptor in 60 mm busbar layouts. Feature: Top/bottom cable outlets → Business Impact: Flexible routing minimizes enclosure depth and simplifies cable management → Application: Quick, tidy installations in space‑constrained panels. Feature: Clamping area for laminated copper bars 18.5 × 15.5 mm → Business Impact: Secure, low‑loss mechanical connections that reduce overheating and maintenance → Application: Laminated copper busbars in high‑current distributions. Feature: Conductor range 35–120 mm² for round wires and ferrules → Business Impact: Supports a wide range of conductor sizes, boosting compatibility and reducing inventory → Application: Industrial power cabinets with mixed wire types. Feature: UL SCCR 50 kA at 600 V and UL 94‑V0 material → Business Impact: Strong short‑circuit protection and improved fire safety compliance → Application: Panels with stringent safety requirements and UL targets. Feature: Compact footprint and 3‑pole design for 60 mm spacing → Business Impact: Faster mounting and scalable installations with minimal enclosure footprint → Application: Standardized busbar assemblies in control and distribution cabinets.
