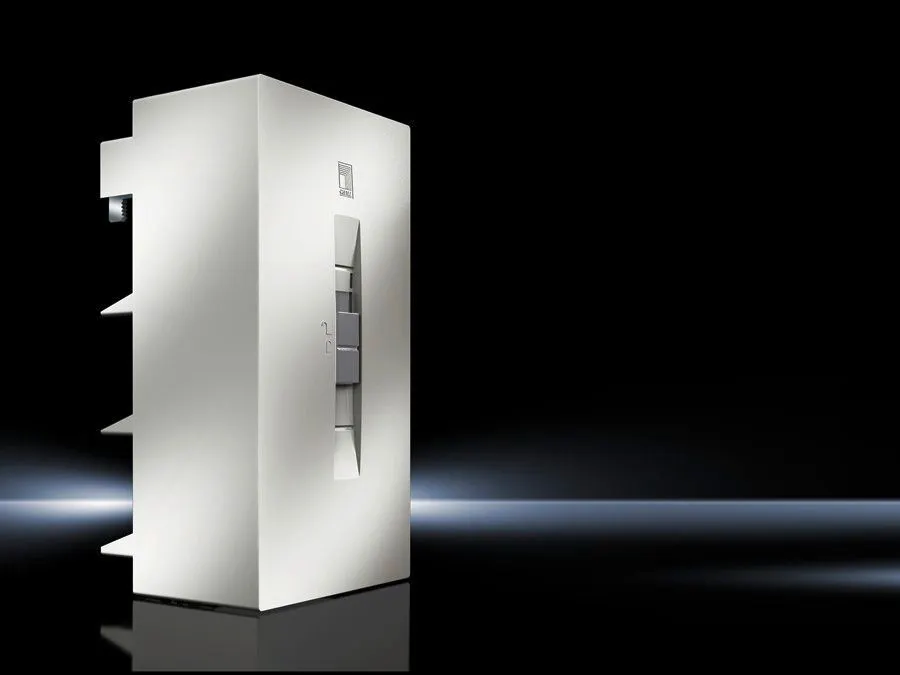

Rittal SV 9342.280 SV Connection Adaptor - 800 A 690 V
Part Number: 9342280
Manufacturer
Rittal
Part number
9342280
Category
Alt Part Number
SV 9342.280
Quick Summary
SV 9342.280 SV Connection Adaptor is a high-current connection component for 60 mm busbar systems. Engineers often face cramped cabinet layouts, inconsistent clamps, and wiring complexity that slow assembly and raise risk. This adaptor delivers up to 800 A at 690 V in a compact 3-pole package, with top or bottom cable outlets and a 33×20 mm clamping area tailored for laminated copper bars. Built with an ABS cover and a polyamide base, it carries UL 94-V0 fire protection and is designed for CE compliance, helping manufacturers meet safety standards without sacrificing performance. Designed for flexible installation and scalable busbar configurations, the unit supports predictable, repeatable field assembly and serviceability while simplifying maintenance workflows.
Product Information
Extended Description
9342280 Rittal: SV Connection adaptor, 800 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 95-300 mm², clamping area WH: 33x20 mm
Article number
SV 9342.280
Material
Cover: ABS | Punched section: Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated current max.
800 A
Rated operating voltage
690 V, 3~
Cable outlet
Top/bottom
For bar systems with centre-to-centre spacing
60 mm
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 129 mm | Height: 246 mm
Connection of round conductors, fine wire with wire end ferrule
95 ‐ 185 mm²
Connection of round conductors, multi-wire
95 ‐ 300 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
33 x 20 mm
Packs of
1 pc(s).
Weight/pack
2 kg
Copper weight (kg per piece)
0.358
Customs tariff number
85369010
EAN
4028177503663
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Connection adaptor, 800 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 95-300 mm², clamping area WH: 33x20 mm
Feature: 800 A current rating and 690 V operating voltage in a 3-pole design. Business Impact: Supports high-current distribution in power panels with fewer components and reduced wiring complexity. Application: Suitable for demanding 60 mm spacing busbar systems in industrial control panels. Feature: Cable outlets at top and bottom. Business Impact: Flexible routing reduces installation time and minimizes clutter, improving heat management and safety. Application: Ideal for panel sides with space constraints in control cabinets. Feature: Clamping area for laminated copper bars measuring 33×20 mm. Business Impact: Provides a robust, low-resistance connection with repeatable clamp behavior, strengthening reliability under vibration. Application: Critical for secure busbar-term connections in high-power assemblies. Feature: Round conductor compatibility 95–300 mm² (and 95–185 mm² for fine wires). Business Impact: Supports both multi-wire and fine-wire terminations, enabling versatile wiring schemes and reducing part diversity. Application: Useful in machinery and automation installations with varied conductor types. Feature: Material and fire protection – ABS cover, polyamide base with UL 94-V0. Business Impact: Delivers safer, regulator-ready components with predictable performance across temperature ranges. Application: Aligns with CE requirements and global safety standards for enclosure hardware.Feature: Busbar height fit of 5 or 10 mm and precise dimensions (Width 129 mm, Height 246 mm). Business Impact: Ensures accurate fit in modular panels and accelerates assembly with reduced rework. Application: Works with standard 60 mm centre-to-centre busbar arrangements in existing frames.
