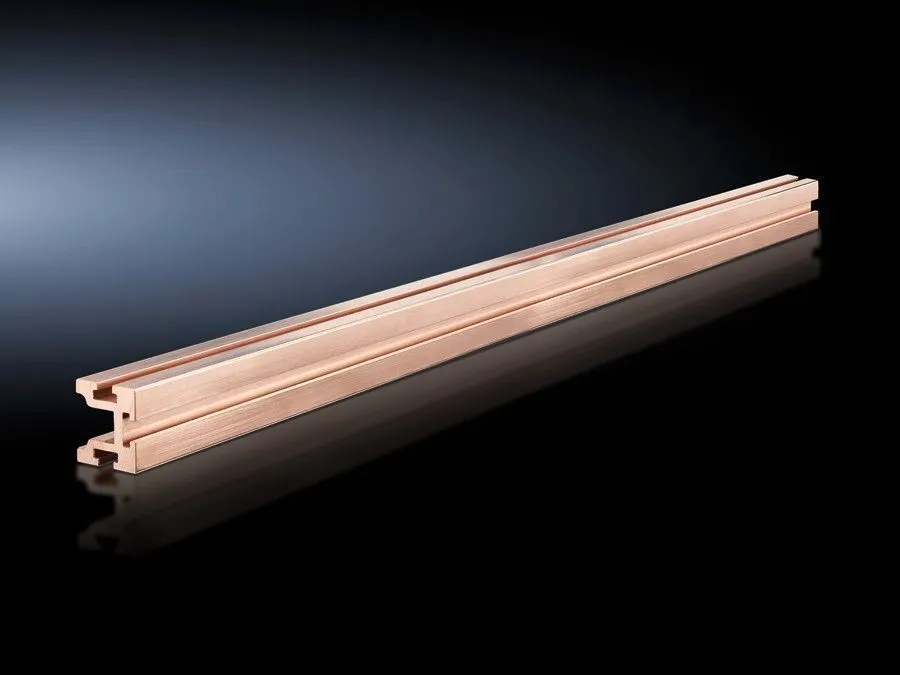

Rittal SV Maxi-PLS Busbar E-Cu - Maxi-PLS 1600
Part Number: 9640276
Manufacturer
Rittal
Part number
9640276
Category
Alt Part Number
SV 9640.276
Quick Summary
Rittal SV Maxi-PLS busbar is a copper busbar designed to reliably distribute high currents in enclosure systems. Engineers often face challenges with exact cut lengths, maintaining copper path integrity, and fitting within limited enclosure widths. The listing references ETIM 9 EC001522 and ECLASS 8.0 27370303, but explicit CE, SIL, or IP ratings are not shown and should be verified for regulatory compliance in your environment. This solution delivers a robust copper-based connection for cable systems, enabling efficient power distribution and scalable cabinet builds, while supporting precise sizing and straightforward installation in standard enclosures. In practice, it supports better predictability in procurement and installation workflows, aligning with broader goals of reliability, traceability, and reduced lead times in industrial projects.
Product Information
Extended Description
9640276 Rittal: SV Maxi-PLS busbar E-Cu, L: 925 mm, Maxi-PLS 1600
Article number
SV 9640.276
Product description
For assembling cable connection systems.
Material
E-Cu
Cross-section
974 mm²
Length
925 mm
Note
May be cut individually to required length
To fit
Width: = 1,000 mm
Packs of
1 pc(s).
Weight/pack
8.2 kg
Copper weight (kg per piece)
8.18
Customs tariff number
74071000
EAN
4028177571860
ETIM 9
EC001522
ECLASS 8.0
27370303
Product description
SV Maxi-PLS busbar E-Cu, L: 925 mm, Maxi-PLS 1600
Feature: E-Cu material with a 974 mm² cross-section. Business Impact: High-current capacity with low resistance supports efficient power distribution and reduced voltage drop in dense enclosure layouts. Application: Ideal for cable connection systems inside control cabinets and switchgear. Feature: Length of 925 mm and compatibility with widths up to 1,000 mm. Business Impact: Easy integration into standard enclosures, minimizing trimming and aligning with common cabinet geometries. Application: Modular power distribution in modular rack systems. Feature: May be cut to the required length. Business Impact: Customization reduces waste, speeds up installation, and improves inventory efficiency for tailored builds. Application: Field-cut installations on-site or in manufacturing lines. Feature: Copper weight of 8.18 kg per piece (8.2 kg per pack) and packs of 1 pc. Business Impact: Strong mechanical stability and predictable handling in logistics, with straightforward replenishment for high-turnover projects. Application: Heavy-current applications in compact footprints. Feature: To fit width 1000 mm and compatibility with Maxi-PLS interfaces. Business Impact: Seamless integration with Rittal enclosure systems, lowering integration risk and ensuring reliable electrical contact. Application: Enclosures and distribution boards in industrial plants. Note: Product description SV Maxi-PLS busbar E-Cu, L: 925 mm, Maxi-PLS 1600; Customizable by length to support diverse cabinet configurations. Business Impact: Flexible deployment across multiple line configurations, reducing the need for multiple SKUs. Application: Custom assembly lines and scalable cabinet designs.
Get a Quick Quote for a Rittal 9640276
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640276?
Enquire Now
FAQs
The busbar is 925 mm long with a cross-section of 974 mm² and is designed to fit standard 1,000 mm wide enclosures. It ships as a single piece and can be cut to length if required, reducing waste and enabling precise fits in control cabinets.
Yes. It is specifically described as a SV Maxi-PLS busbar in E-Cu intended for assembling cable connection systems, aligning with Rittal Maxi-PLS interfaces and enclosure configurations for reliable, scalable power distribution.
Key specs include material E-Cu, cross-section 974 mm², length 925 mm, and copper weight about 8.18 kg per piece (8.2 kg per pack). The product is intended for high-current connections within enclosure power distribution systems.
The listing provides ETIM 9 EC001522 and ECLASS 8.0 27370303 references. Explicit CE, SIL, or IP ratings are not shown in the data and should be verified against your regulatory requirements with the supplier.
Benefits include precise cut-to-length capability to minimize scrap, high-purity copper for reliable conductivity, and reduced installation time due to straightforward mounting in standard enclosures. These factors translate to lower labor costs, predictable lead times, and improved reliability in power distribution within cabinets.
