Rittal 9640296 SV Maxi-PLS Busbar - ETIM EC001522
Part Number: 9640297
Manufacturer
Rittal
Part number
9640297
Category
Alt Part Number
SV 9640.297
Quick Summary
SV Maxi-PLS busbar is a high-conductivity copper bar designed for modular power distribution in switchgear and control cabinets. Engineers often struggle to fit long copper paths into compact enclosures while maintaining electrical continuity. It adheres to ETIM EC001522 and ECLASS 27370303 data standards, facilitating procurement data and ERP integration; note that field certifications such as CE, IP, or SIL depend on the final installation. For panel builders, this busbar enables cut-to-length solutions for 1,200 mm-wide cabinets, supporting efficient BOMs and fast, reliable cabinet assembly. This standardization combined with flexible fabrication translates to lower lifecycle costs and quicker project delivery in industrial environments.
Product Information
Extended Description

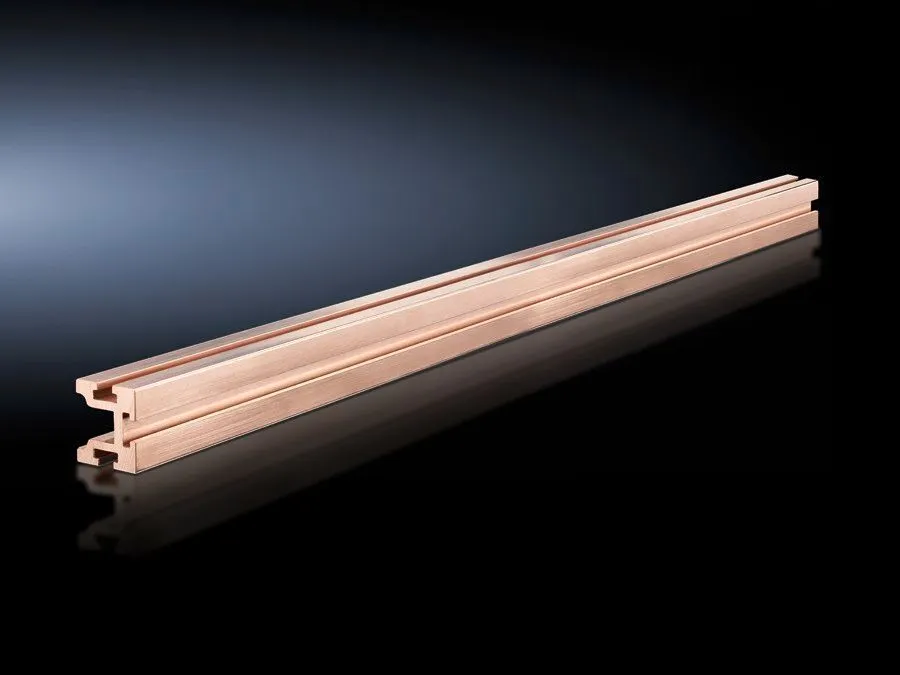

9640297 Rittal: SV Maxi-PLS busbar E-Cu, L: 1051 mm, 45x45 mm, bar cross-section: 974 mm²
Article number
SV 9640.297
Product description
For assembling cable connection systems.
Material
E-Cu
Cross-section
974 mm²
Length
1,051 mm
Note
May be cut individually to required length
To fit
Width: = 1,200 mm
Packs of
1 pc(s).
Weight/pack
9.284 kg
Copper weight (kg per piece)
9.284
Customs tariff number
74071000
EAN
4028177940208
ETIM 9
EC001522
ECLASS 8.0
27370303
Product description
SV Maxi-PLS busbar E-Cu, L: 1051 mm, 45x45 mm, bar cross-section: 974 mm²
Feature: High-conductivity E-Cu material provides low impedance pathways. Business Impact: Reduces voltage drop and heating under high-current operation, improving overall electrical efficiency. Application: Ideal for modular switchgear and cabinet power distribution where reliability is critical. Feature: Large cross-section of 974 mm² with 45x45 mm size. Business Impact: Supports high-current applications within limited footprint, enabling compact designs. Application: Suitable for 1,200 mm wide panel integrations and Maxi-PLS systems. Feature: Length of 1,091 mm with cut-to-length capability. Business Impact: Flexible fabrication reduces waste and enables on-site customization, lowering installation time. Application: Quick fit in bespoke layouts and varying cabinet depths. Feature: Weight per piece 9.65 kg and pack weight 9.5 kg. Business Impact: Predictable ballast in assemblies and straightforward logistics planning for on-site deployments. Application: Supports precise weight budgeting in cabinet design. Feature: Clear product documentation including ETIM EC001522 and ECLASS 27370303 data. Business Impact: Streamlines procurement, ERP syncing, and compliance checks. Application: Enhances data accuracy across catalogs, BOMs, and purchasing workflows. Feature: Customs tariff number 74071000 and EAN 4028177569331. Business Impact: Simplifies import compliance, traceability, and inventory management. Application: Useful for global procurement and freight planning in engineering projects.
Get a Quick Quote for a Rittal 9640297
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640297?
Enquire Now
FAQs
The SV Maxi-PLS busbar measures 1,091 mm in length with a 45x45 mm footprint and a 974 mm² cross-section, designed to fit within 1,200 mm wide panels. Plan for cut-to-length customization where required and ensure you accommodate the copper weight of approximately 9.65 kg per piece. The product is compatible with Maxi-PLS systems and can be trimmed on site to match exact panel depths, simplifying layout without compromising current capacity.
Key specifications include a cross-section of 974 mm² and E-Cu material for high conductivity, with a length of 1,091 mm. The unit ships as a single piece per pack, weighing around 9.5 kg per pack, and has a copper weight of about 9.65 kg per piece. It is suitable for assembling cable connection systems within modular switchgear and control cabinets.
Yes. The busbar is aligned with ETIM 9 EC001522 and ECLASS 8.0 27370303 classifications, supporting accurate data exchange in PIM and ERP systems. While standard data is provided, verify site-specific certifications such as CE, IP, or SIL based on your installation and regulatory requirements to ensure full compliance in your application.
Best use cases include high-current distribution in modular switchgear and control cabinets where space is constrained. The 1,091 mm length and 974 mm² cross-section support robust current paths with minimal impedance, while the cut-to-length capability enables precise tailoring for 1,200 mm wide assemblies. It also simplifies BOM creation and reduces installation time for complex cabinet layouts.
The busbar provides a reliable copper path with low impedance, reducing overheating risks and improving service life. Cut-to-length capability minimizes waste and on-site machining, lowering installation time and labor costs. Standardized data (ETIM/ECLASS) facilitates procurement, reducing lead times and error rates in BOMs, which translates to lower total cost of ownership over the cabinet’s lifecycle.
