003N8151
Part Number: 003N8151
Product Information
Extended Description

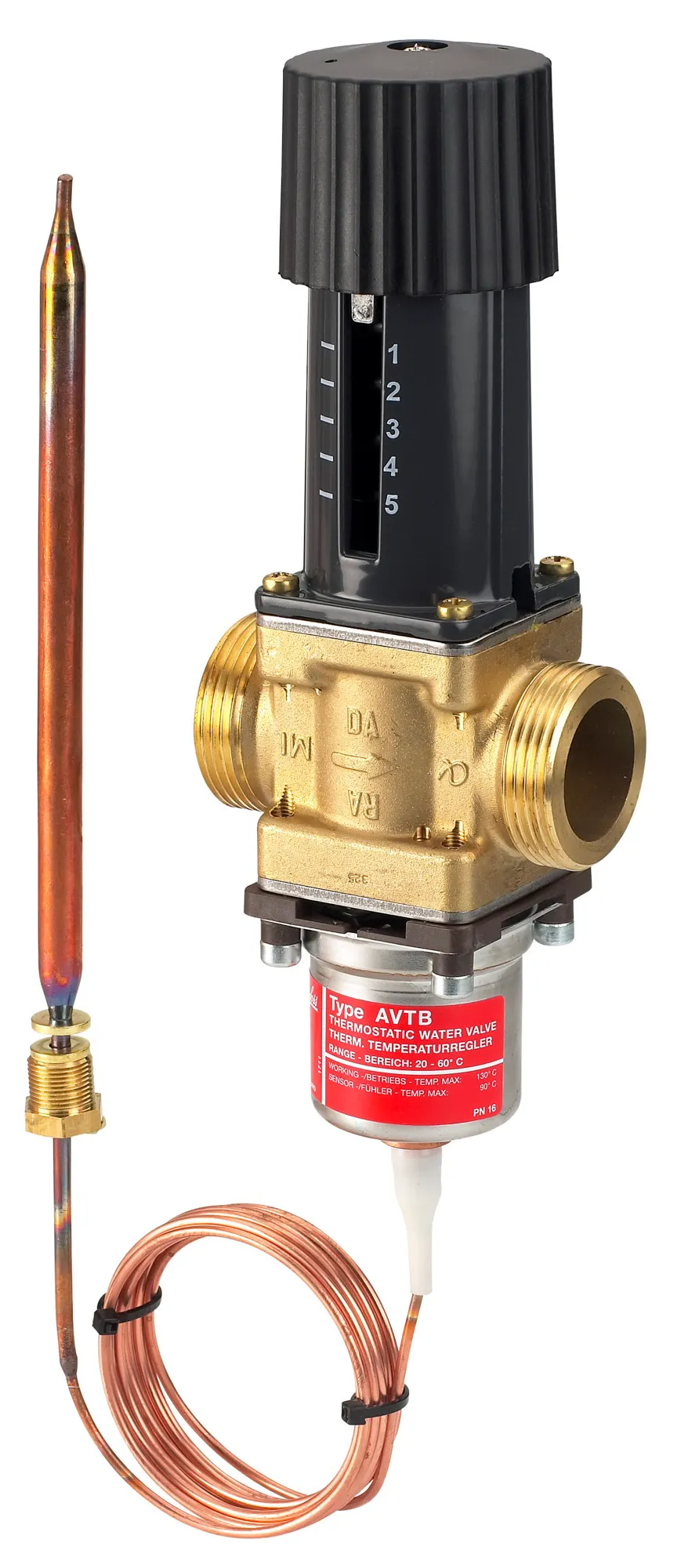

003N8151 Danfoss: AVTB PN16 15/1,9 30-65 2,3m int Rp fl/re
Gross weight
1.538 Kilogram
Net weight
1.461 Kilogram
Volume
4.093 Liter
EAN
5702421100790
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
ETA VA 1.54/18952
Capillary tube length [m]
2.3 m
Cavitation factor
0.4
China RoHS compliance
Out of scope
Cone /seat sealing material
NBR / Brass W. No 2.0402
Connection size
Rp 1/2
Connection standard
ISO 7/1
Connection types
Internal thread
Contain batteries
No
Description
AVTB PN16 15/1,9 30-65 2,3m int Rp fl/re
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Flow control
No
Function
Temp. controller
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Impulse tube material
Copper mat. No 2.0090
Kvs values [mÂł/h]
1.9 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Media temperature at sensor [°C] [Max]
130 °C
Medium alternative
Glycolic water up to 30%
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Temperature controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rection time close [sec]
25 "
Rection time open [sec]
25 "
Return limiter function
No
Temperature control
Yes
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
150 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
65 °C
Temperature setting range [°C] [Min]
30 °C
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVTB
UK RoHS compliance
Out of scope
Valve body material
Brass CuZn40Pb2 W. no 2.0402
Valve cone material
NBR rubber
Valve seat material
Cr Ni steel W.no 1.4301
Valve size
DN 15
