003N8272RA

Part Number: 003N8272RA
003N8272RA
Manufacturer
Danfoss
Part number
003N8272RA
Category

Product Information

Extended Description

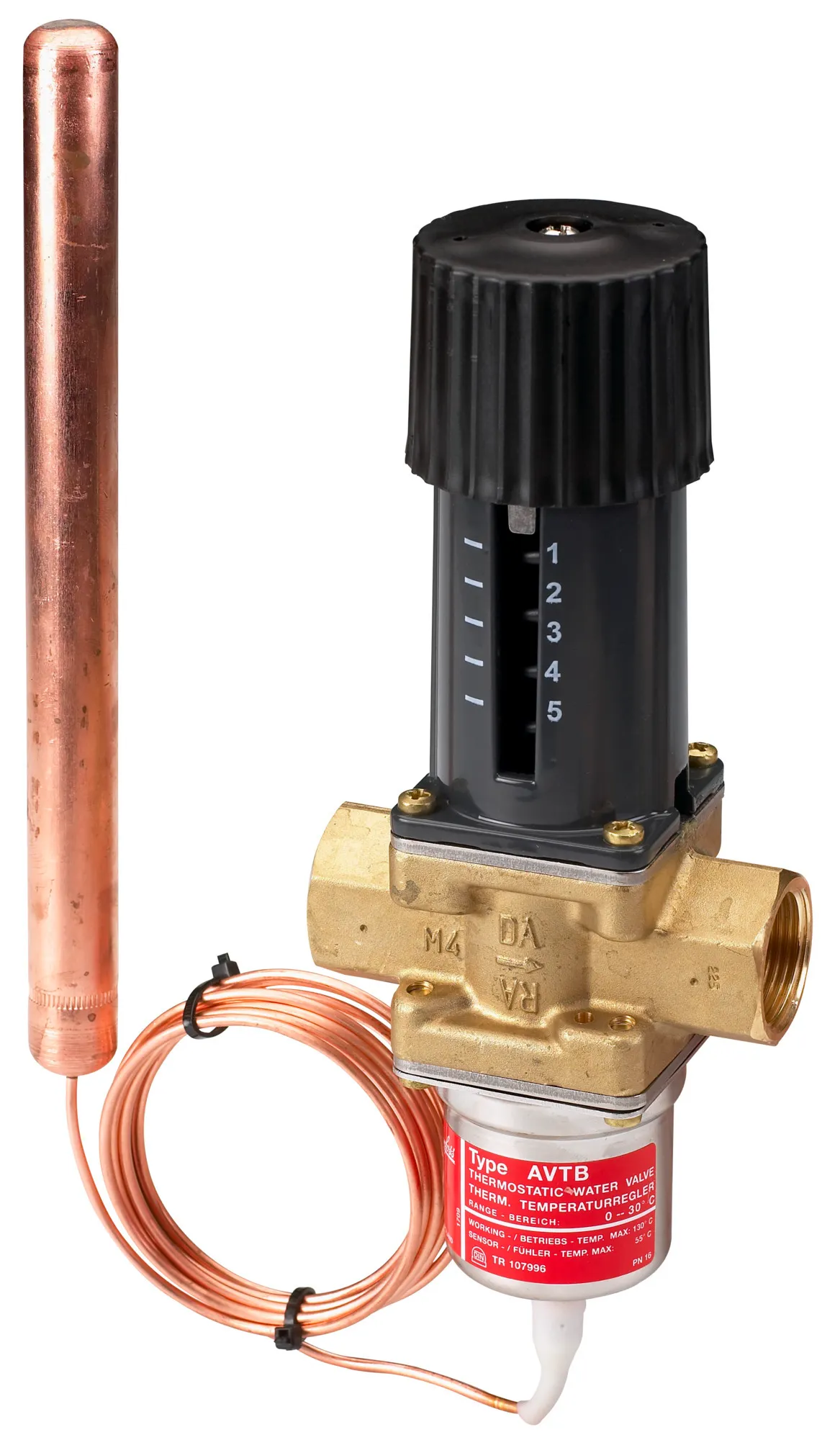

003N8272RA Danfoss: 1# NPT. BRASS TEMP. REG.COOLING, 122-1
Gross weight
1.87 Kilogram
Net weight
1.87 Kilogram
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
ETA VA 1.54/18952
Capillary tube length [m]
0 m
Cavitation factor
0.4
Cone /seat sealing material
NBR / Brass W. No 2.0402
Connection size
NPT 1
Connection types
Internal thread
Contain batteries
No
Description
1# NPT. BRASS TEMP. REG.COOLING, 122-1
Diameter [mm]
25 mm
Differential pressure range [bar] [Max]
10 bar
Flow characteristic
Linear
Function
Temp. controller
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Impulse tube material
Copper mat. No 2.0090
Kvs values [mÂł/h]
5.5 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Media temperature at sensor [°C] [Max]
115 °C
Medium alternative
Glycolic water up to 30%
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
16 bar
Product group
Temperature controllers
Rection time close [sec]
3 "
Rection time open [sec]
3 "
Temperature sensor diameter [mm]
18 mm
Temperature sensor length [mm]
210 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
90 °C
Temperature setting range [°C] [Min]
50 °C
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVTB-RA
Valve body material
Brass CuZn40Pb2 W. no 2.0402
Valve cone material
NBR rubber
Valve seat material
Cr Ni steel W.no 1.4301
003N4008
AVTB, FJV, AVD(S)A Repair set DN25
003N0062
Spare part, AVTB; AVTA, Thermostatic element
003N0520
Spare part, AVTB; FJVA; AVTA, Plastic hand knob
003N8100
Thermo. operated water valve, AVTA 25, NPT, 1
003N0053
Water valves accessories, Accessory Sensor Pocket 3/4" NPT S.Steel
003N0056
Water valves accessories, Accessory Cap. Tube Gland 3/4" NPT
