014G0541

Part Number: 014G0541
014G0541
Manufacturer
Danfoss
Part number
014G0541
Category

Product Information

Extended Description

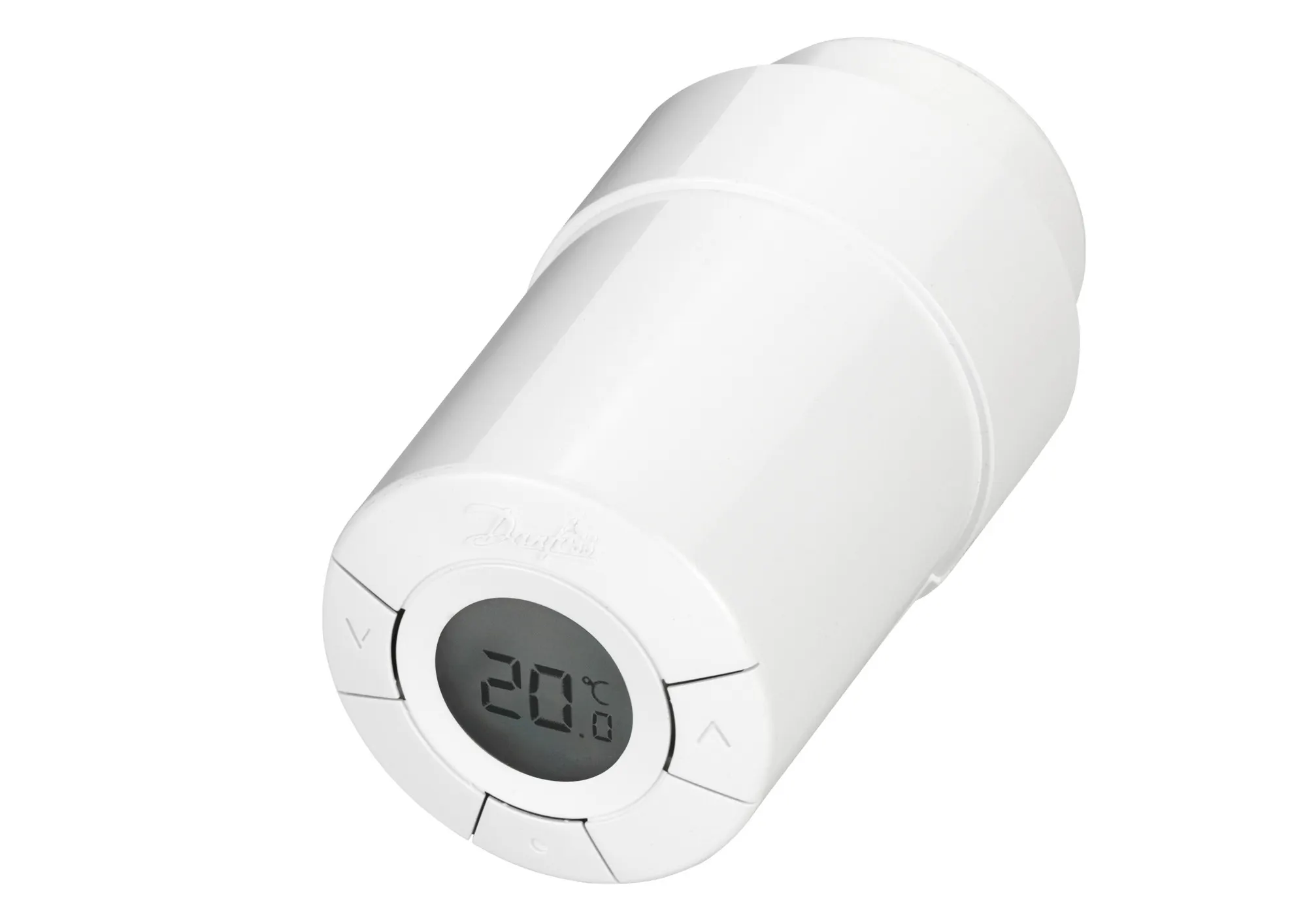

014G0541 Danfoss: Electronic thermostatic radiator valve for Danfoss Link system, Z-wave
Gross weight
0.253 Kilogram
Net weight
0.239 Kilogram
Volume
1.305 Liter
EAN
5702425128028
Actuator speed [s/mm]
1 s/mm
Actuator type
Electromechanical
Adapter type
M30,RA
Ambient temperature [=C2=B0C] [max]
40 =C2=B0C
Ambient temperature [=C2=B0C] [min]
0 =C2=B0C
Application
Residential (pollution degree 2)
Approval
Z-Wave,CE,EAC
Battery lifetime [Years]
2 yr
Battery type or Name
Sold without batteries
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour
RAL 9016
Contain batteries
No
Control
PID
Description
Electronic thermostatic radiator valve for Danfoss Link system
Display type
LCD with backlight
EEE category
5 small equipment (any external dimension 50 cm)
Heating control type
Radiator thermostat
In scope of WEEE
Yes
Low battery indicator
Yes
Noise level Heat dB(A) JIS C 9612
30
Open-window function
Yes
Power consumption (standby) [mW]
3 mW
Power consumption [W]
1.2 W
Product group
Radiator thermostat
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Safety classification
Type 1
SCIP dossier no.
caa3fb56-9dc5-4626-9b25-cc888c4afc3c
SCIP dossier product name
Living Connect
Software class
A
Spindle movement
Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s)
Supply batteries
2 x 1,5 V AA-Alkaline batteries
System integration
Danfoss Link=E2=84=A2
Temperature measurement interval
1 min
Temperature setting range [=C2=B0C] [Max]
28 =C2=B0C
Temperature setting range [=C2=B0C] [Min]
4 =C2=B0C
Thermostat
Programmable electronic radiator valve controller
Thermostat IP Class
20
Transmission [m] [Max]
30 m
Transmission frequency [MHz]
868.42 MHz
Transport temperature [=C2=B0C] [Max]
65 =C2=B0C
Transport temperature [=C2=B0C] [Min]
-20 =C2=B0C
Type
Danfoss Link=E2=84=A2 Connect
UK RoHS compliance
Out of scope
Water temperature [=C2=B0C] [Max]
90 =C2=B0C
Wireless standard
Z-wave
014G0253
Adapter type: RTD
014G0264
Adapter type: M28
014G0250
Adapter type: RAV; RAVL
014G0263
Adapter type: Caleffi; Giacomini
014G0252
Adapter type: M30
014G0251
Adapter type: RA
014G0255
Adapter type: MMA; M28
014G0257
Adapter type: Orkli; M28
Danfoss Link=E2=84=A2 Connect Thermostat (Data Sheet) Overview - Danfoss Link and living software versions living connect=C2=AE - Installation and User Guide living connect=C2=AE Quick Start Guide Warranty certificate_10 years warranty Warranty certificate_5 years warranty Modern heating technology for housing associations Danfoss EU VCIDK102.06 SEMKO 1506584-1 Connect 014G0001 014G0002 Connect 014G0001 014G0002 Connect 014G0001 014G0002 Connect sensor
