014U0001

Part Number: 014U0001
014U0001
Manufacturer
Danfoss
Part number
014U0001
Category

Product Information

Extended Description

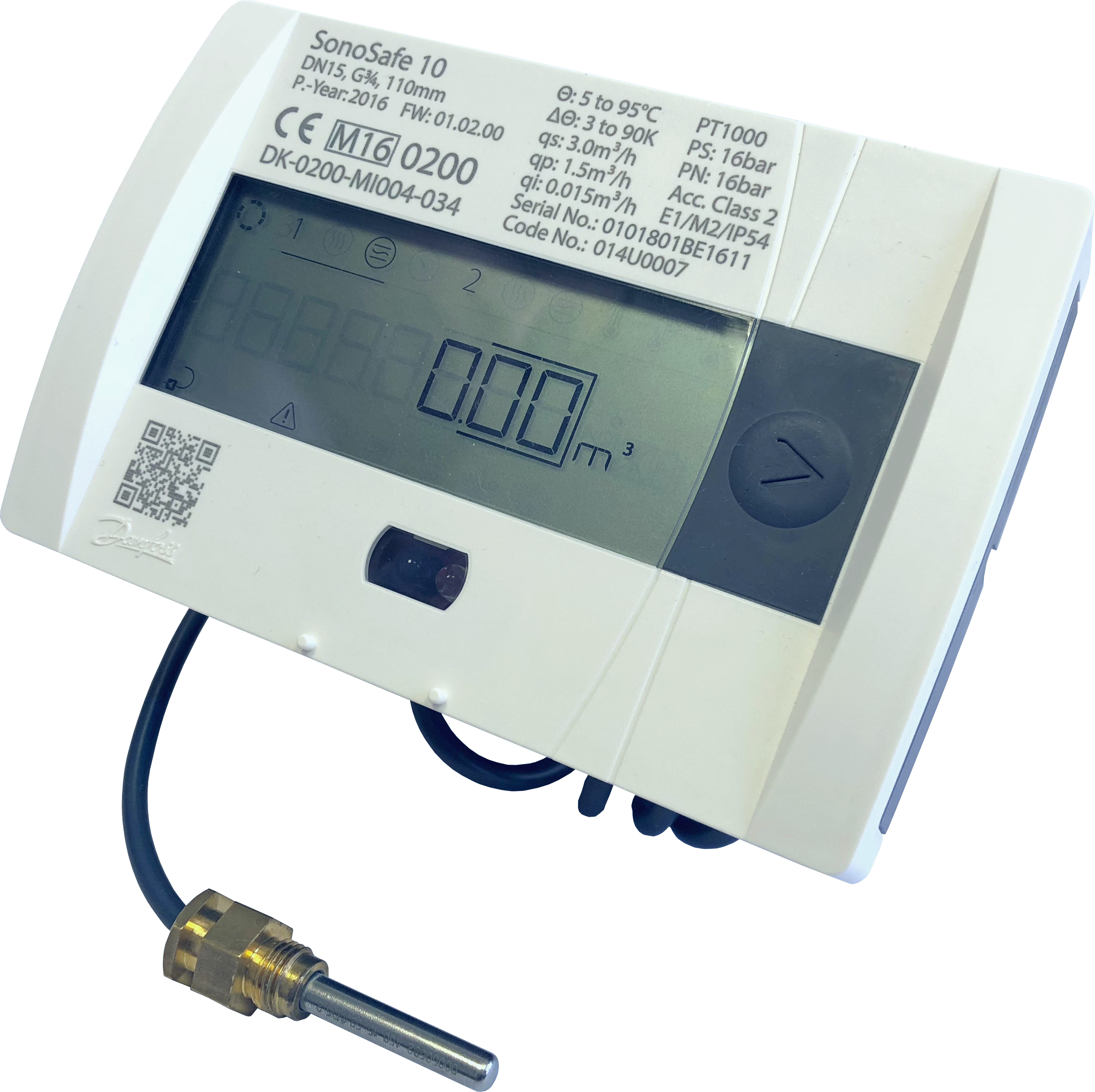

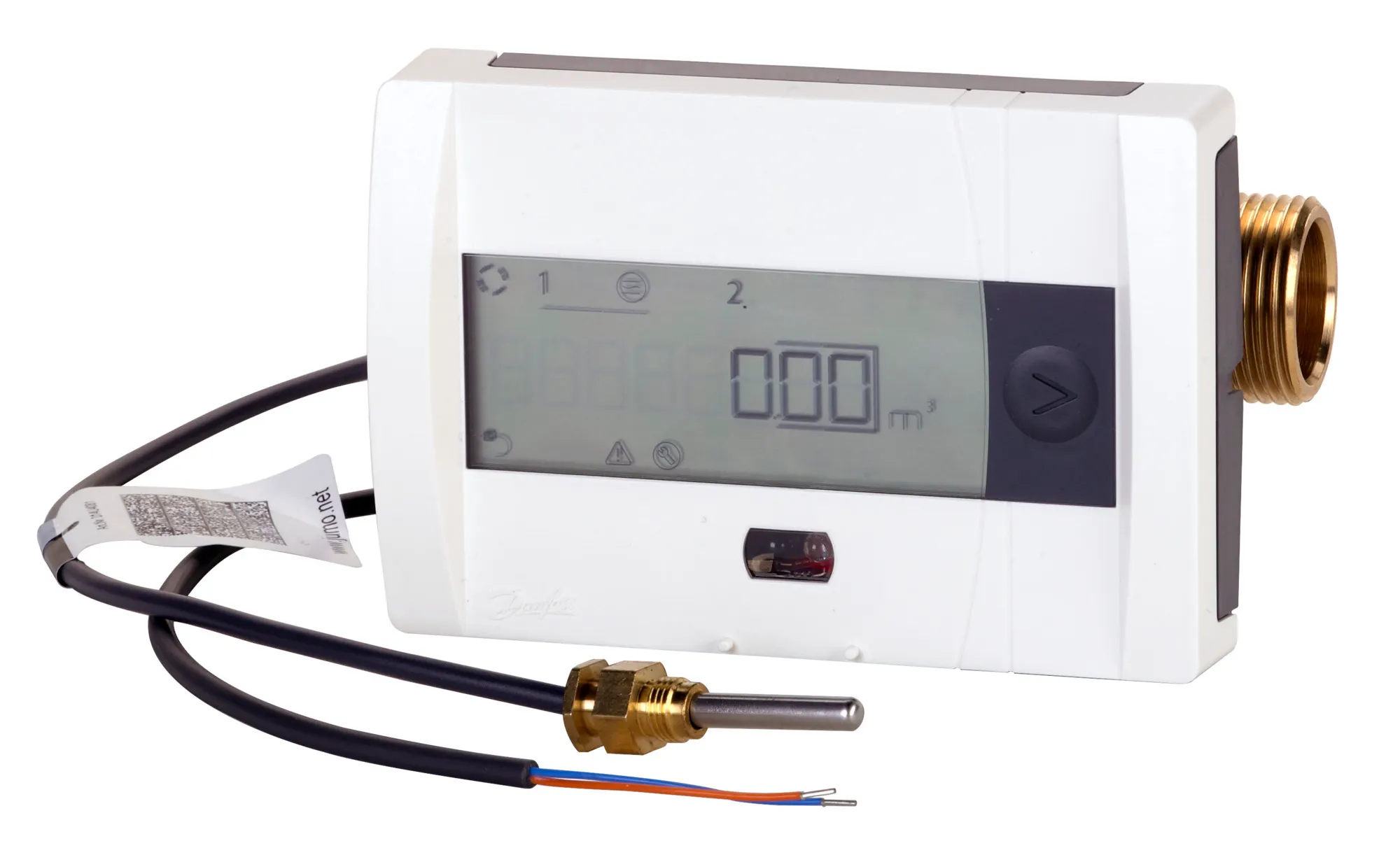

014U0001 Danfoss: Energy meter for residential applications
Gross weight
0.887 Kilogram
Net weight
0.7 Kilogram
Volume
3.108 Liter
EAN
5702425128912
1 Primary battery SUM weight Kg
0.018
1 Primary battery weight Kg
0.018
Accuracy standard
Class 2 to EN1434
Ambient class
E1 / M2
Ambient humidity [% RH] [Max]
95 %
Ambient temperature [=C2=B0C] [max]
55 =C2=B0C
Ambient temperature [=C2=B0C] [min]
5 =C2=B0C
Application
Heating
Approval authority
Force Certification
Approved meteorological range [=C2=B0C] [Max]
95 =C2=B0C
Approved meteorological range [=C2=B0C] [Min]
5 =C2=B0C
Battery lifetime [Years]
16 yr
Battery qty
1
Battery type or Name
AA Lithium
Cable insulation material
PVC halogen free
Cable length between calculator and flow sensor [m]
0.5 m
China RoHS compliance
Out of scope
Commissioning tool
SonoApp
Connection size
G 3/4
Connection types
Thread
Contain batteries
Yes
Description
Energy meter for residential applications
Diameter [mm]
15 mm
Difference temperature limits (Accounting) [K] [Max]
90 K
Difference temperature limits (Accounting) [K] [Min]
3 K
Display type
LCD
Dynamic range
1:100
EEE category
5 small equipment (any external dimension 50 cm)
Energy unit
kWh (without digit after comma)
EU RoHS compliance
Out of scope
Flow measuring principle
Ultrasonic
Housing color
RAL 9010 White
In scope of WEEE
Yes
Installation
Return
Integrated communication
No integrated communication
Interface module slot 1
No interface module
IP protection class
IP65
Kvs values [m=C2=B3/h]
3.46 m=C2=B3/h
Length [mm]
110 mm
Log storage duration [Month]
24 mo
Log storage interval [Month]
1 mo
Material in contact with medium
Brass sensor
Media
Heating system according to VDI 2035
Media temperature [=C2=B0C] [Max]
95 =C2=B0C
Media temperature [=C2=B0C] [Min]
5 =C2=B0C
Pressure nominal [bar]
16 bar
Product group
Energy meters
Protection class calculator
IP65
qc [m=C2=B3/h]
0.0012 m=C2=B3/h
qi [m=C2=B3/h]
0.006 m=C2=B3/h
qp [m=C2=B3/h]
0.6 m=C2=B3/h
qs [m=C2=B3/h]
1.2 m=C2=B3/h
qss [m=C2=B3/h]
1.32 m=C2=B3/h
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
c284e070-c802-4ced-837c-2aa2fcd3510f
SCIP dossier product name
Ultrasonic Pathfinder
Storage temperature [=C2=B0C] [Max]
60 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-25 =C2=B0C
Supply voltage [V] DC
4 V
Supply voltage type
Battery 1 A-cell
Temperature sensor approved temperature [=C2=B0C] [Max]
105 =C2=B0C
Temperature sensor approved temperature [=C2=B0C] [Min]
0 =C2=B0C
Temperature sensor diameter [mm]
5.2 mm
Temperature sensors cable length [m]
1.5 m
Temperature sensors type
Pt 1000
Type
SonoSafe 10
UK RoHS compliance
Out of scope
Weight per battery
18 g
Energy metering diagnostics Energy metering solutions - Product overview 2024 Precision and reliability through advanced ultrasonic technology 4-pager SonoSelect=E2=84=A2 - Knowledge and innovation to win at every project stage SonoSelect=E2=84=A2 - Knowledge and innovation to win at every project stage SonoSelect 10 and SonoSafe 10 M-BUS module with 2 pulse inputs Module with 2 pulse inputs Wireless OMS 868.95 MHz module with 2 pulse inputs Communication description wired M-Bus SonoSelect_Safe FORCE DK-0200-MI004-034.Rev. 11 IMBiH BR 06-46-7-AN-48-2_16 TS 27. 02 010 Rev.05 FORCE DK-0200-MID-00446.Rev. 6 eurofins G0M-1602-5364-C-V01 SonoSelect_Safe left angle perspective SonoSelect_Safe PCBA-1 SonoSafe 10_DN15-DN32_Return_RFA Calculator seal SonoSafe10 Energy meter DN25 qp3.5 SonoSelect_Safe prespective with flow sensor SonoSelect_Safe sensor seal Heatmeter SonoSafe/SonoSelect SonoSafe_Select_DN15_110mm_
