014U1339

Part Number: 014U1339
014U1339
Manufacturer
Danfoss
Part number
014U1339
Category

Product Information

Extended Description

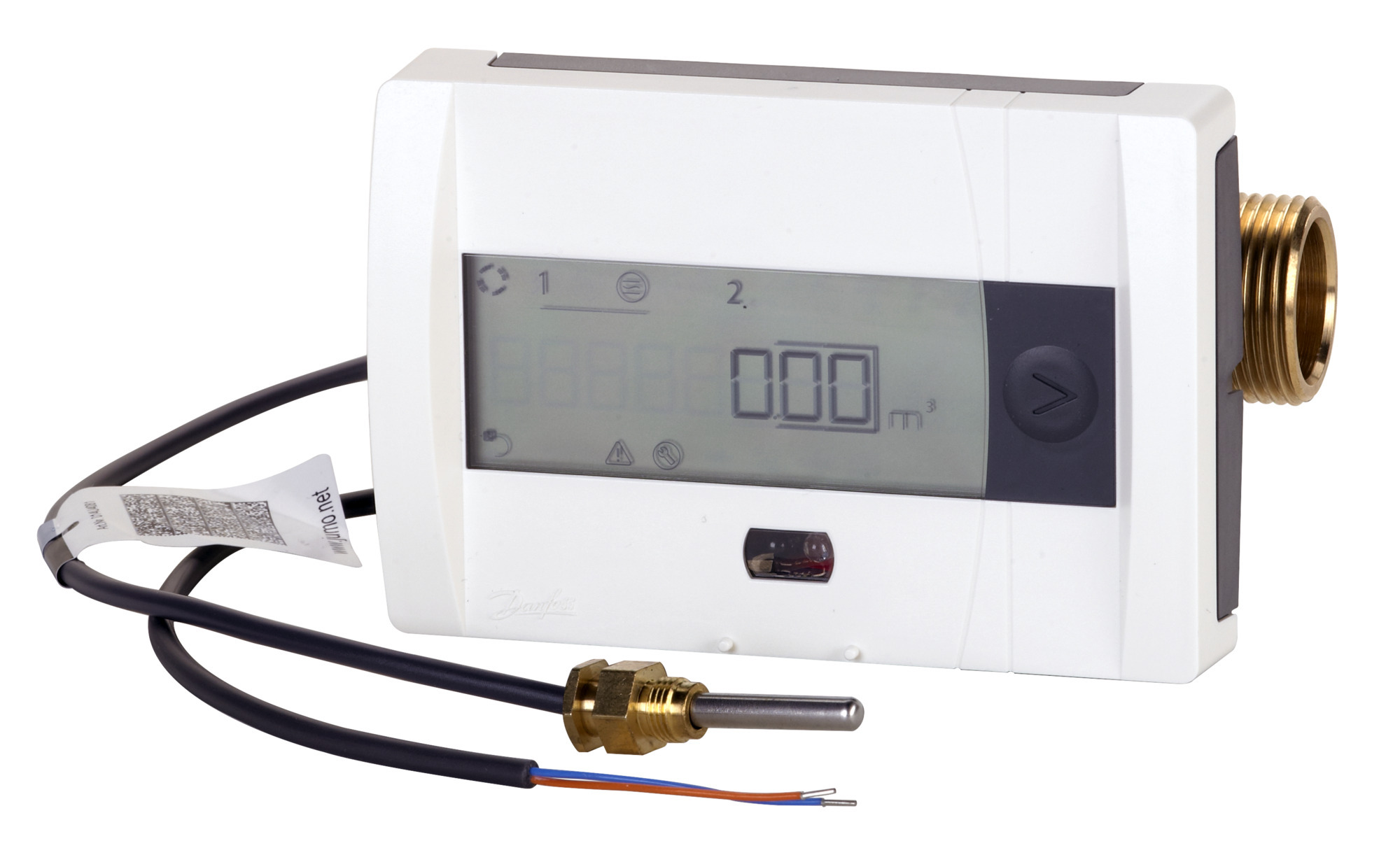

014U1339 Danfoss: Energy meter for residential applications
Gross weight
1.833 Kilogram
Net weight
1.43 Kilogram
Volume
6.3 Liter
EAN
5702428682688
Accuracy standard
Class 2 to EN1434
Ambient class
E1 / M2
Ambient humidity [% RH] [Max]
95 %
Ambient temperature [=C2=B0C] [max]
55 =C2=B0C
Ambient temperature [=C2=B0C] [min]
5 =C2=B0C
Application
Heating and cooling
Approval authority
Force Certification
Approved meteorological range [=C2=B0C] [Max]
95 =C2=B0C
Approved meteorological range [=C2=B0C] [Min]
5 =C2=B0C
Battery qty
2
Battery type or Name
Sold without batteries
Cable insulation material
PUR
Cable length between calculator and flow sensor [m]
1.5 m
China RoHS compliance
Out of scope
Commissioning tool
SonoApp
Connection size
G 1 1/4 B
Connection types
Thread
Description
Energy meter for residential applications
Diameter [mm]
25 mm
Difference temperature limits (Accounting) [K] [Max]
90 K
Difference temperature limits (Accounting) [K] [Min]
3 K
Display type
LCD
EEE category
5 small equipment (any external dimension 50 cm)
Energy unit
kWh (without digit after comma)
EU RoHS compliance
Out of scope
Flow measuring principle
Ultrasonic
Housing color
RAL 9010 White
In scope of WEEE
Yes
Installation
Return
Integrated communication
M-Bus
Interface module slot 1
No interface module
IP protection class
IP65
Kvs values [m=C2=B3/h]
12.79 m=C2=B3/h
Length [mm]
260 mm
Log storage duration [Month]
24 mo
Log storage interval [Month]
1 mo
Material in contact with medium
Brass sensor
Media
Water quality with pH 7 to 9.5
Media temperature [=C2=B0C] [Max]
95 =C2=B0C
Media temperature [=C2=B0C] [Min]
5 =C2=B0C
Pressure nominal [bar]
25 bar
Product group
Energy meters
Protection class calculator
IP65
qc [m=C2=B3/h]
0.012 m=C2=B3/h
qi [m=C2=B3/h]
0.06 m=C2=B3/h
qp [m=C2=B3/h]
6 m=C2=B3/h
qs [m=C2=B3/h]
12 m=C2=B3/h
qss [m=C2=B3/h]
12.3 m=C2=B3/h
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
c284e070-c802-4ced-837c-2aa2fcd3510f
SCIP dossier product name
Ultrasonic Pathfinder
Storage temperature [=C2=B0C] [Max]
60 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-25 =C2=B0C
Supply voltage type
mains
Temperature limits (accounting) [=C2=B0C] [Max]
105 =C2=B0C
Temperature limits (accounting) [=C2=B0C] [Min]
0 =C2=B0C
Temperature sensor diameter [mm]
5.2 mm
Temperature sensors cable length [m]
1.5 m
Temperature sensors type
Pt 1000
Type
SonoSelect 10
UK RoHS compliance
Out of scope
