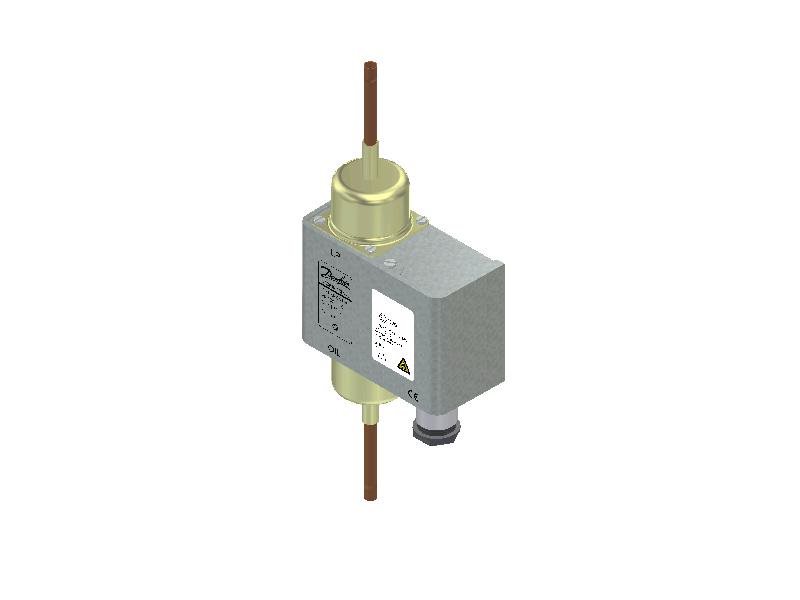

060B530091
Part Number: 060B530091
Product Information
Extended Description
060B530091 Danfoss: Diff.press.setting range [bar]: 0.30 - 4.50, Reset function: Auto, Pressure connection type: Solder, ODF, Pressure connection size: 1/4 in, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17.0
Gross weight
0.742 Kilogram
Net weight
0.622 Kilogram
Volume
1.958 Liter
EAN
5702424499440
Adjustment
Cut out for falling pressure
Amb. Temp. Note
Bellows max 100 °C/212 °F
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
ATEX - Cat. 3 - Zone 2,CE,EAC,LLC CDC EURO-TYSK,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Out of scope
Contact differential [bar]
0.2 bar
Contact function
SPDT gold
Contact rating
Ci-0.5 nF,Ii=0.1 A,Li=0.2 ÎĽH,Pi=1 W,Ui=30 V
Contain batteries
No
Diff.press.setting range [bar] [max]
4.5 bar
Diff.press.setting range [bar] [min]
0.3 bar
Diff.press.setting range [MPa] [max]
0.45 MPa
Diff.press.setting range [MPa] [min]
0.03 MPa
Diff.press.setting range [psi] [max]
65 psi
Diff.press.setting range [psi] [min]
4.3 psi
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
Pg 13.5
Electrical connection standard
DIN 40430
EN 60947 electrical properties
Insulation: 250V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 2A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.0 mm2,Flex, no ferrules: 0.2-1.5 mm2,Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP
IP20
EU RoHS compliance
Out of scope
EX Sales text
-20Cta+60C,II 3G Ex ic IIB T6 Gc
Factory setting [bar]
0.65 bar
Factory setting [psig]
9 psig
Max. test pressure [bar] Pe
22 bar
Max. test pressure [psig]
319 psig
Max. Working Pressure [bar]
17 bar
Max. Working Pressure [psig]
245 psig
Operat. range LP side [bar] Pe [max]
12 bar
Operat. range LP side [bar] Pe [min]
-1 bar
Operat. range LP side [psig]Pe [max]
175 psig
Operat. range LP side [psig]Pe [min]
-15 psig
Packing format
Multi pack
Pressure connection size
1/4 in
Pressure connection standard
EN 1254-1
Pressure connection type
Solder, ODF
Pressure Male/Female
Female
Product accessories
Generic accessories
Product description
Diff. Pressure Switch
Product group
Switches and thermostats
Product Name Description
Differential pressure switch
Quantity per packing format
21 pc
Refrigerants
R1270,R290,R32,R422B,R422D,R454A,R454C,R455A,R516A,R600,R600a
Relay release time [s]
0 s
Reset function
Auto
Serviceable
No
Type
MP55E
UK RoHS compliance
Out of scope
UL approved refrigerants
R422B,R422D,R516A
