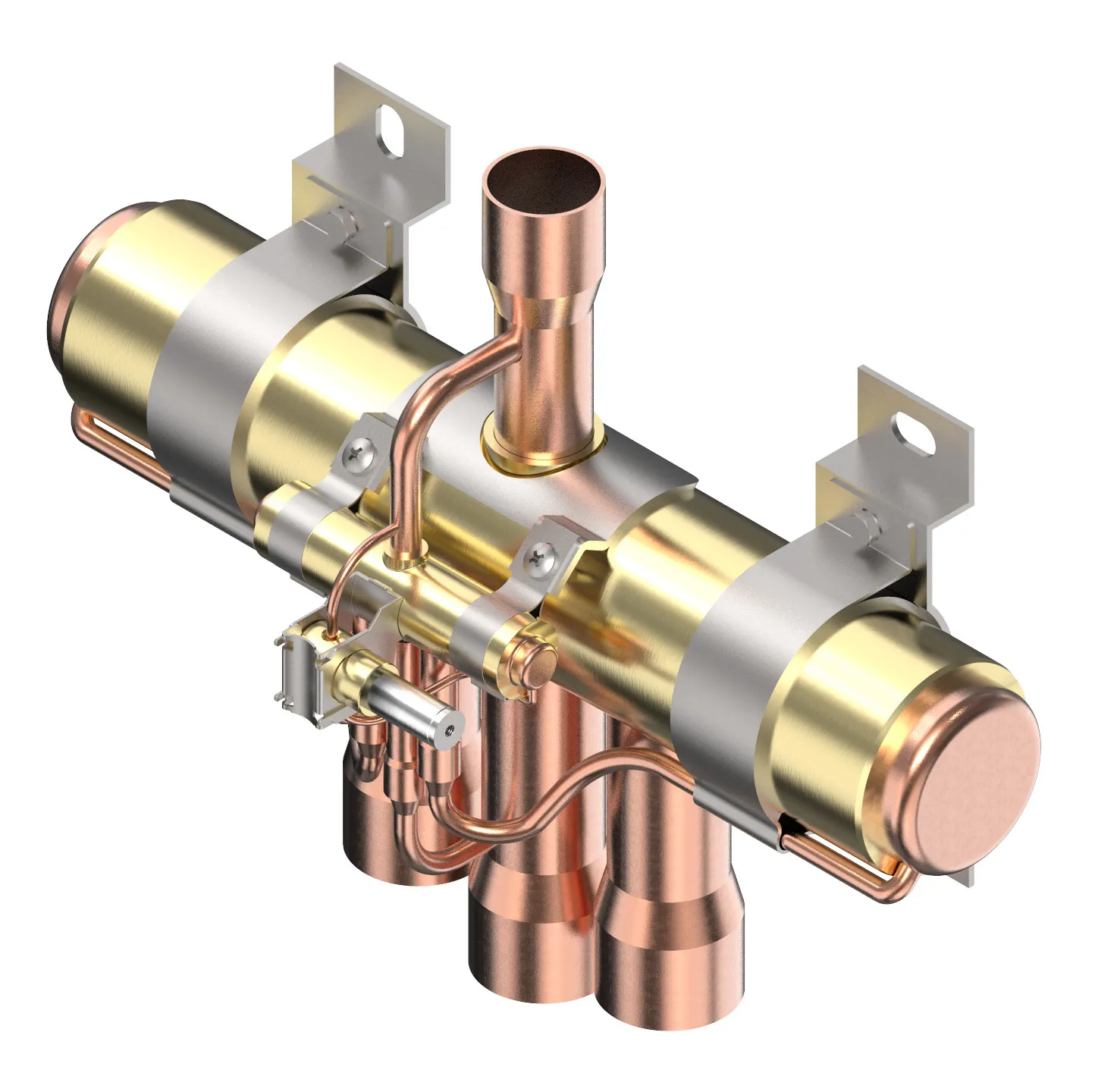

061L1358
Part Number: 061L1358
Product Information
Extended Description
061L1358 Danfoss: Medium temperature range [°C]: -30 - 160, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 13/8, Discharge conn size [in]: 11/8, Design config. Style: G
Gross weight
5.491 Kilogram
Net weight
0.37 Kilogram
Volume
35.956 Liter
EAN
5702424157203
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA,VDE
Cap condition 1 [°C]
0°C sub-cooling,38°C condensing,5°C evaporating,5°C super-heat
Cap condition 2 [°C]
54,4 °C condensing,5°C sub-cooling,5°C super-heat,7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]
7.18 kW
Cap R407C@Δp:0.1bar(cond2)[kW]
6.63 kW
Cap R407C@Δp:0.2bar(cond1)[kW]
10.11 kW
Cap R407C@Δp:0.2bar(cond2)[kW]
9.34 kW
Cap R410A@Δp:0.1bar(cond1)[kW]
63.2 kW
Cap R410A@Δp:0.1bar(cond2)[kW]
7.94 kW
Cap R410A@Δp:0.2bar(cond1)[kW]
12.43 kW
Cap R410A@Δp:0.2bar(cond2)[kW]
11.2 kW
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
G
Discharge conn size [in]
11/8
Discharge conn size [mm]
9.7 mm
Discharge conn type
FEMALE
EU RoHS compliance
Out of scope
Evap/cond conn size [in]
1/2
Evap/cond conn size [mm]
12,95
Max. Leakage [cmÂł/min]
1500 cmÂł/min
Max. Working Pressure [bar]
49 bar
MaxOPD [bar]
31 bar
MaxOPD [psig]
450 psig
Medium temperature range [°C] [max]
160 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
248 °F
Medium temperature range [°F] [min]
-4 °F
MinODP [bar]
3 bar
MinODP [psi]
50 psi
Packing format
Single pack
Process connection material
Copper
Product group
4-way reversing valves
Product Name Description
4-way reversing valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R404A,R407A,R407C,R410A,R448A,R449A,R452B,R454B,R454C
SCIP dossier no.
f8fe2fb6-0750-4373-b03a-5b5988b72210
SCIP dossier product name
Four-way valve(1)
Shock resistance standard
JIS C 60068-2-27
Suction conn size [in]
13/8
Suction conn size [mm]
12.95 mm
Type
STF
Type designation
STF-2525G
UK RoHS compliance
Out of scope
Vibration stability [m/s²]
19.6 m/s²
Vibration test standard
JIS C 60068-2-6
